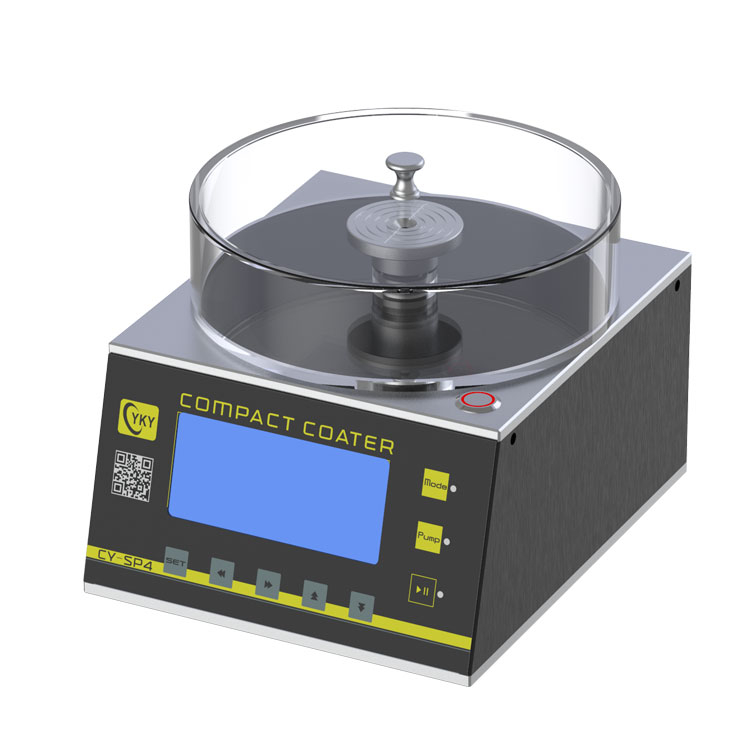

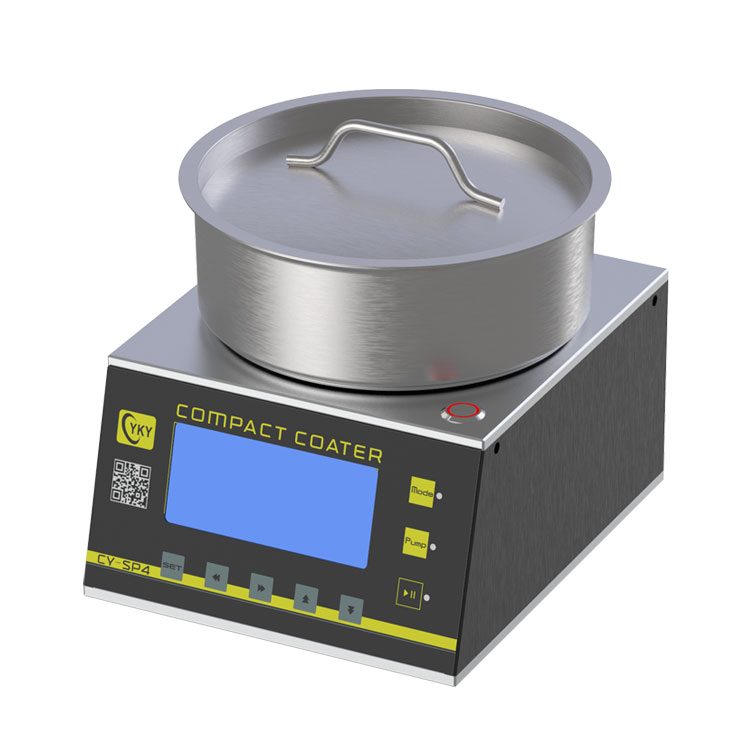

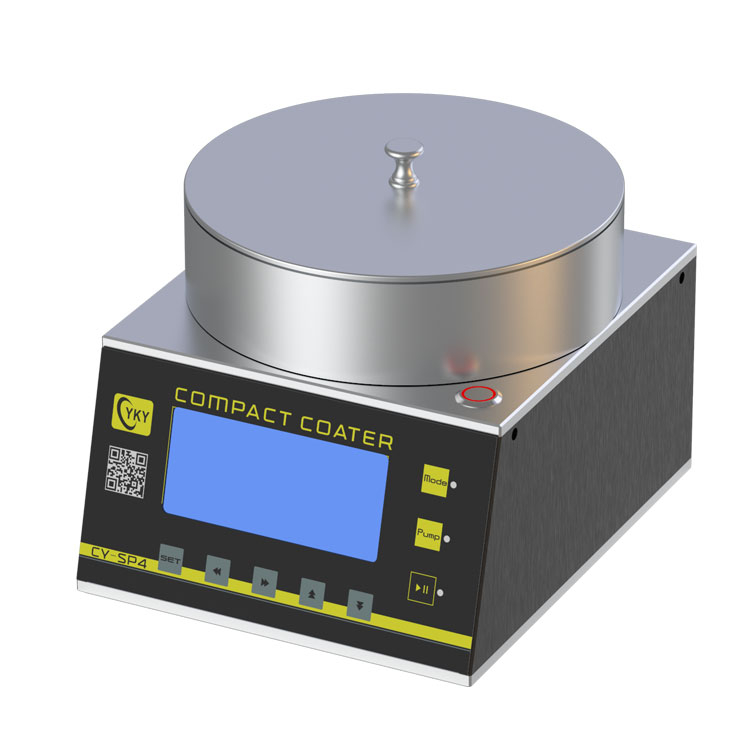

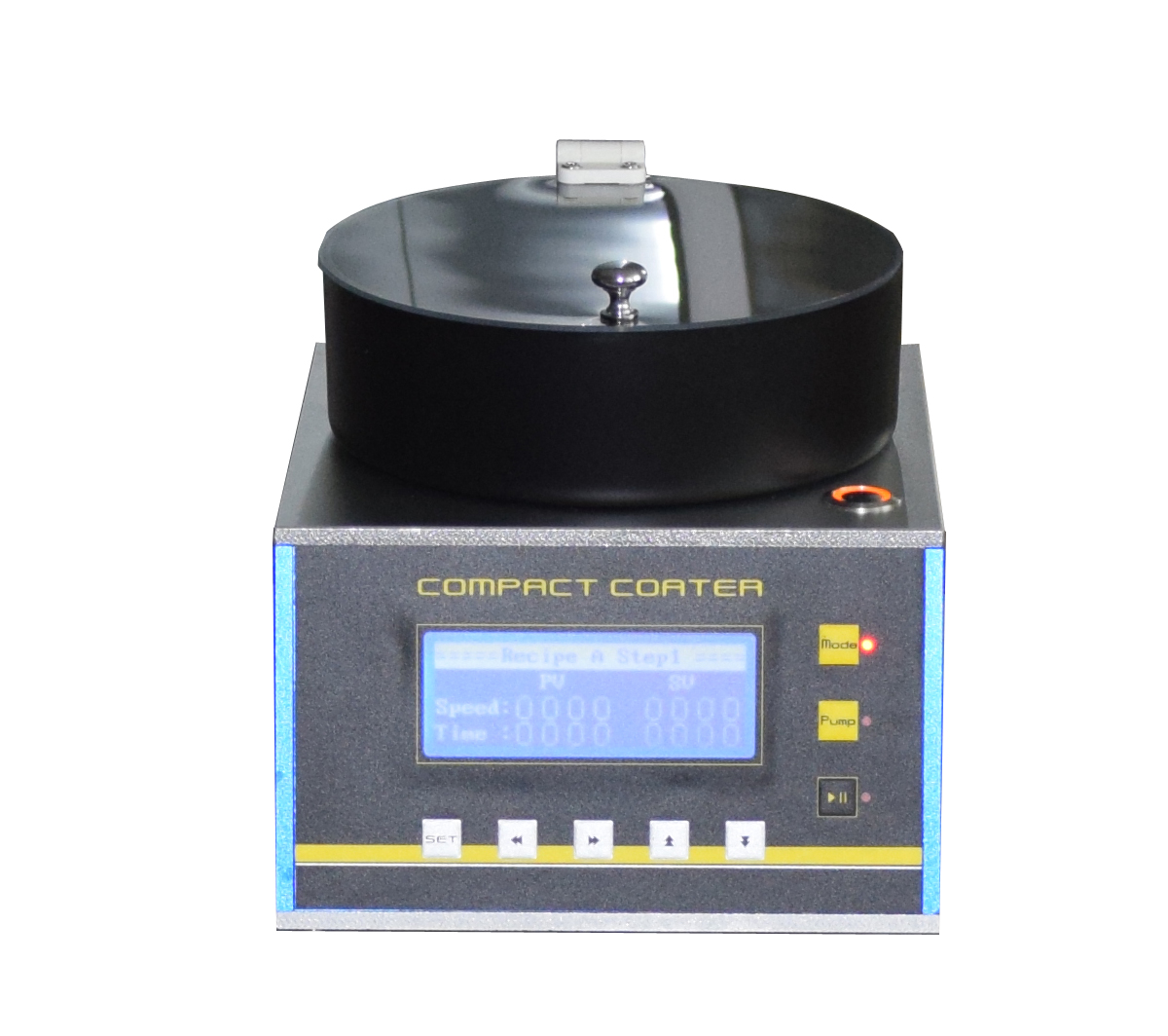

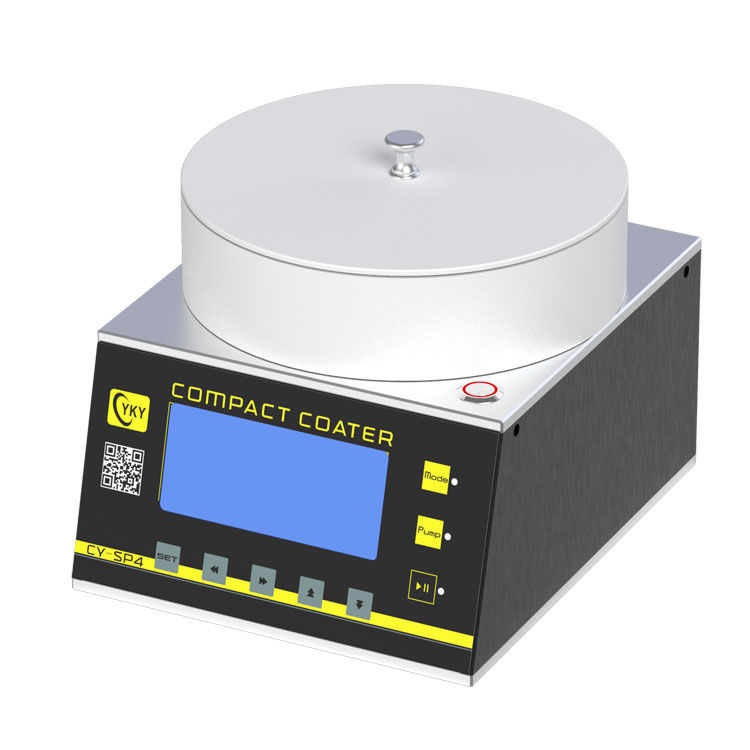

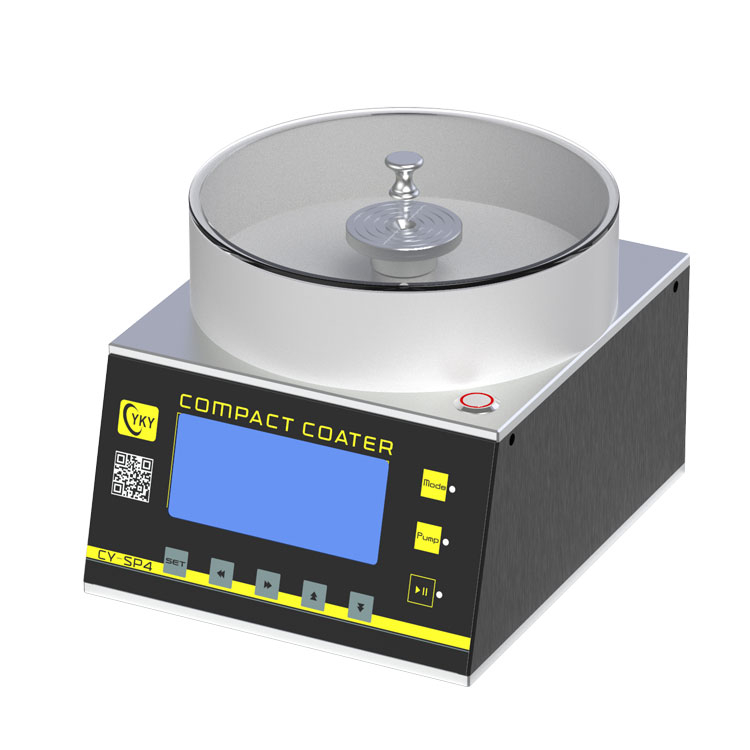

Compact vacuum spin coater with oiless vacuum pump CY-EZ4
Compact vacuum spin coater with oiless vacuum pump CY-EZ4

Compact vacuum spin coater with oiless vacuum pump CY-EZ4

    CY-EZ4 is CE certified compact spin coater with vacuum chucks designed for easy and quick coating via sol-gel for wafers up to 4" diameter.The spinning speed is variable from 100-10000rpm with two programmable segments

Inquire Now

Features

1.75w brushless dc motor,single chip microcomputer control

2.High-definition display

3.Pre-set single or multi-step coating operate

4.Prevent glue blocking design

5.PP anti- corrosion chamber, replaceable

6.HDPE vacuum adhesive disc


Model No.

EZ4

Chamber dimension

Φ200mm

Maximum sample

10mm-100mm

Speed range

100~9999rpm adjustable

Accelerated speed

100~9999rpm/s

Speed resolution

1rpm

Speed accuracy

< ±5rpm

Control

5 sets programmable control,each sets with 5 steps

Motor power

Brushless DC Motor 75w

Working voltage

AC 110-220V, 50Hz

Outer dimension

250*210*200mm
