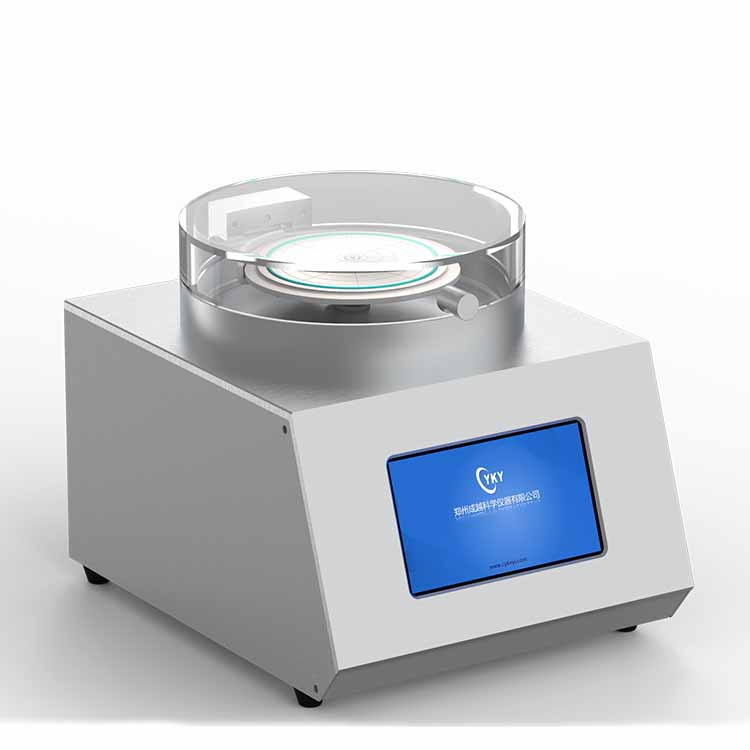

8 inches precision spin coater CY-SPC8-B

8 inches precision spin coater CY-SPC8-B

    8 inches precision spin coater adopts all-aluminum alloy chamber, which is beautiful and sturdy in appearance; the upper cover of the chamber adopts 360° visible plexiglass design, which is convenient for customers to observe the coating condition during use.

8 inches precision spin coater adopts advanced precision motor, the maximum speed can reach 10,000rpm, which effectively guarantees the uniformity of film formation. In addition, the instrument adopts touch screen control and can preset the coating curve, which greatly simplifies the use process and reduces the learning cost. It is very suitable for laboratory purchase.

8 inches precision spin coater application:

The spin coater can coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. It is mainly used in photoresist spin coating, biological medium preparation, sol-gel method for polymer film production, etc.

8 inches precision spin coater technical parameters:


Item

Detail

Spin coater

Supply voltage

AC220V, 50Hz

Spin speed

0~10000rpm

Acceleration

100~5000rpm/s

Speed resolution

1rpm

Single step time

3000s

Substrate size

Diameter ≤ 8 inches (200mm)

Chamber material

Aluminum alloy

Operation method

7 inches HD LCD touch screen

Dispensing method

Manual dispensing, optional precision syringe pump

Coating curve

5 segments per curve, a total of 5 curves can be stored

Pumping port

Φ6mm quick screw interface

Overall size

290mm×365mm×260mm

Total Weight

10kg

Exhaust system

Vacuum pump

Dry mechanical pump

Pumping rate

1.1L/s

Power supply

AC220V 50/60Hz
