Large-scale high precision spin coater

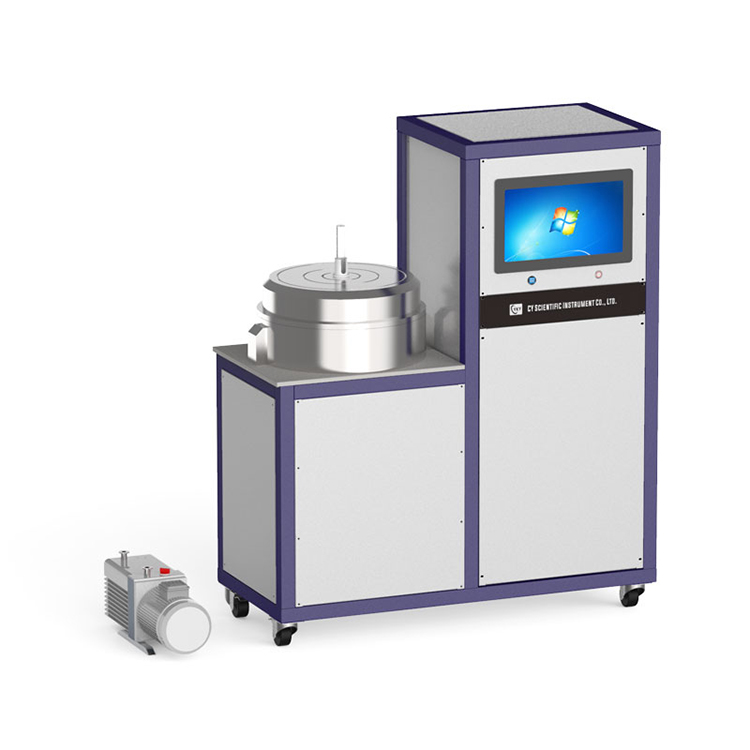

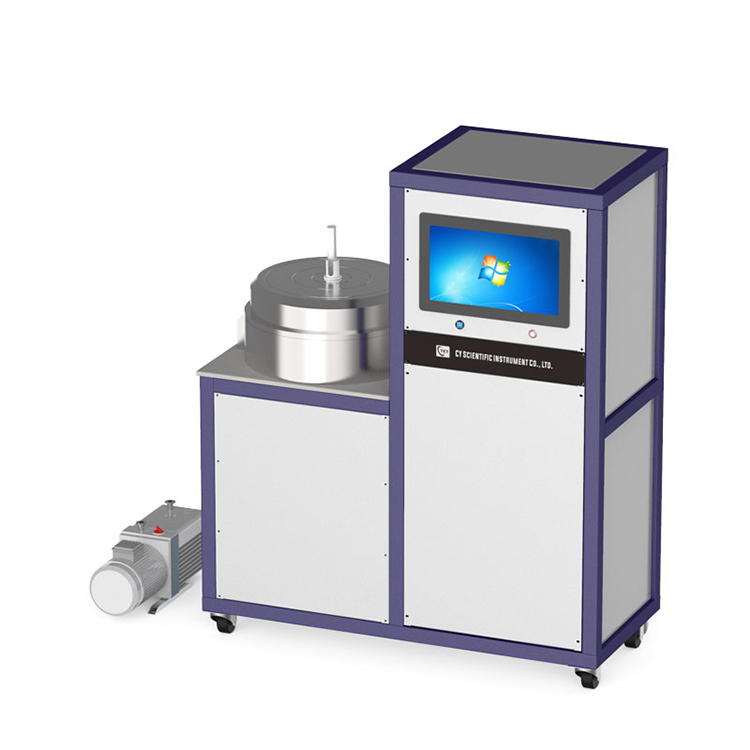

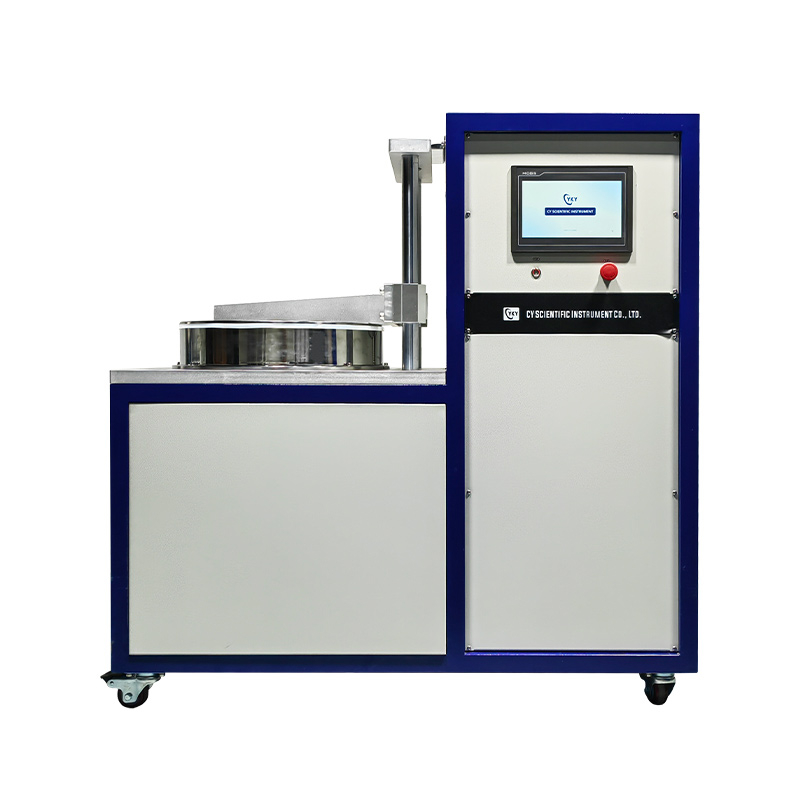

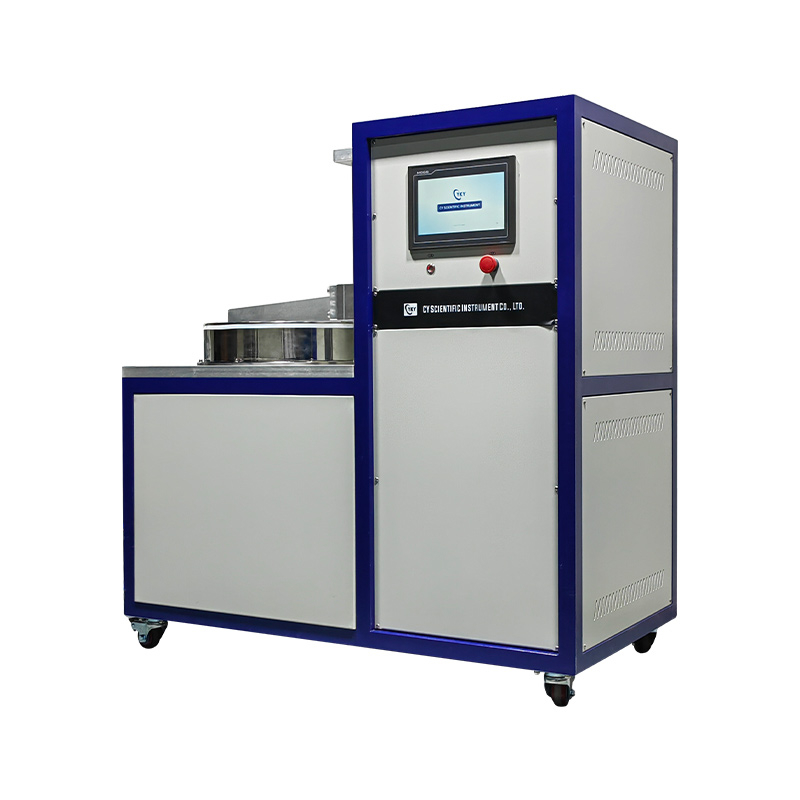

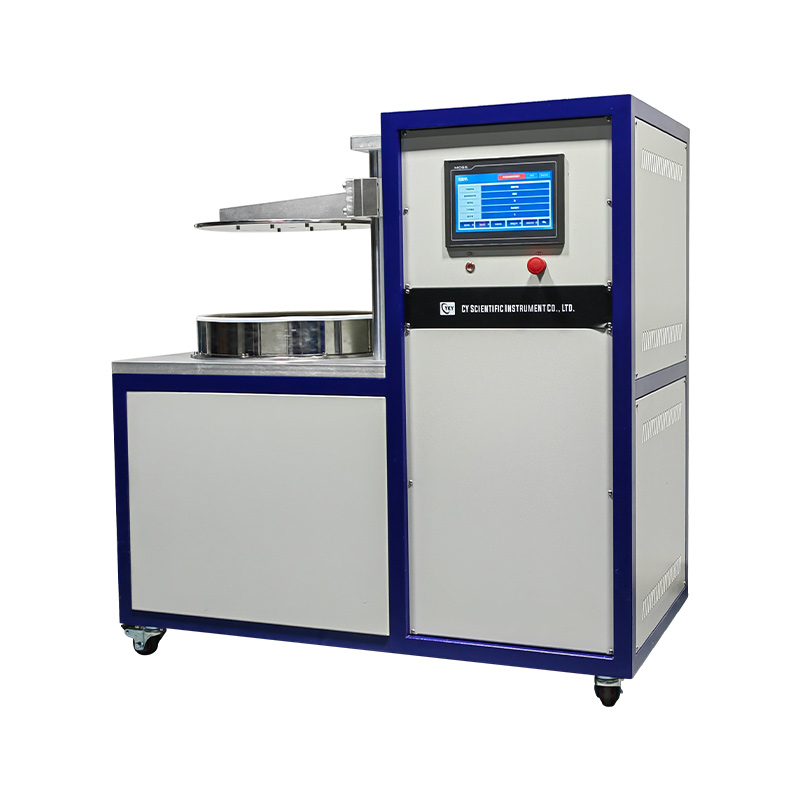

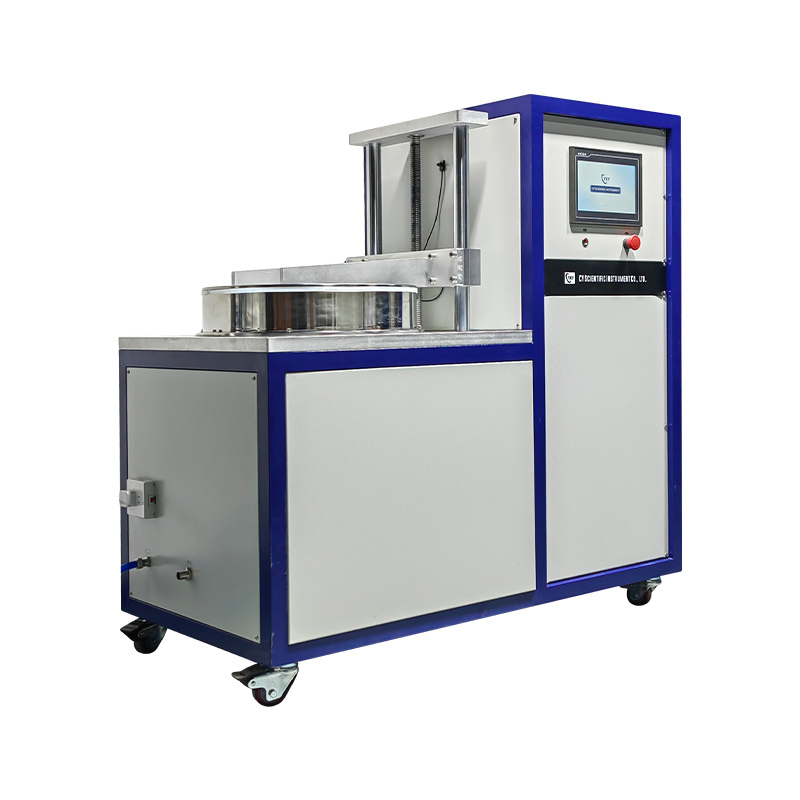

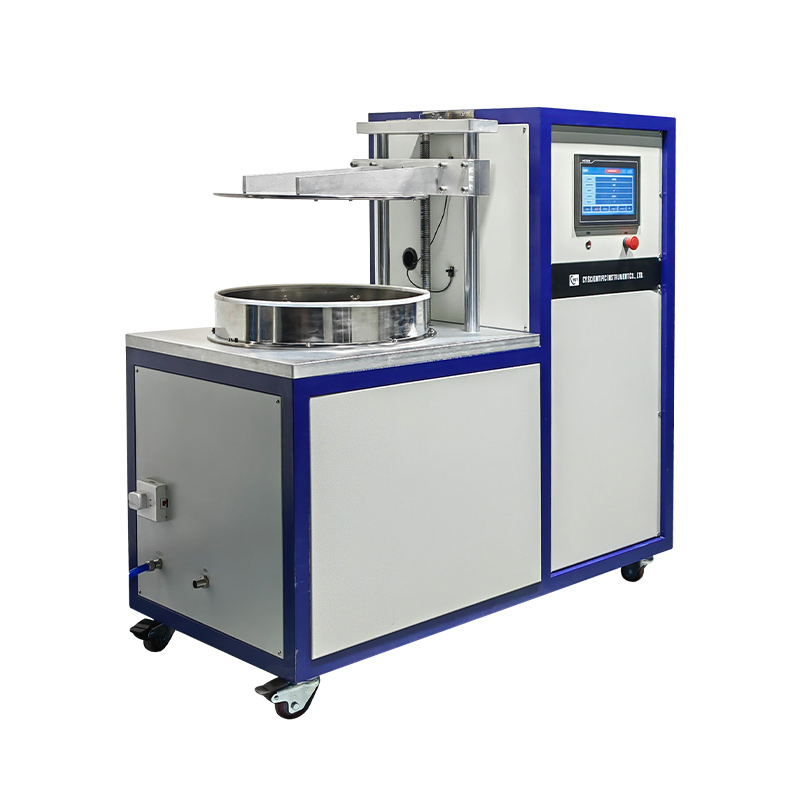

    The CY-SPC12-HP large-scale spin coater adopts a high-power servo motor and a high-precision driver to realize accurate spinning coating experiments on large-size samples. It can support samples up to 300mm in diameter and 2.3mm in thickness. And the speed resolution of the adopted high-precision drive can reach 0.2 rpm.

The CY-SPC12-HP large-scale spin coater adopts a high-power servo motor and a high-precision driver to realize accurate spinning coating experiments on large-size samples. It can support samples up to 300mm in diameter and 2.3mm in thickness. And the speed resolution of the adopted high-precision drive can reach 0.2 rpm.

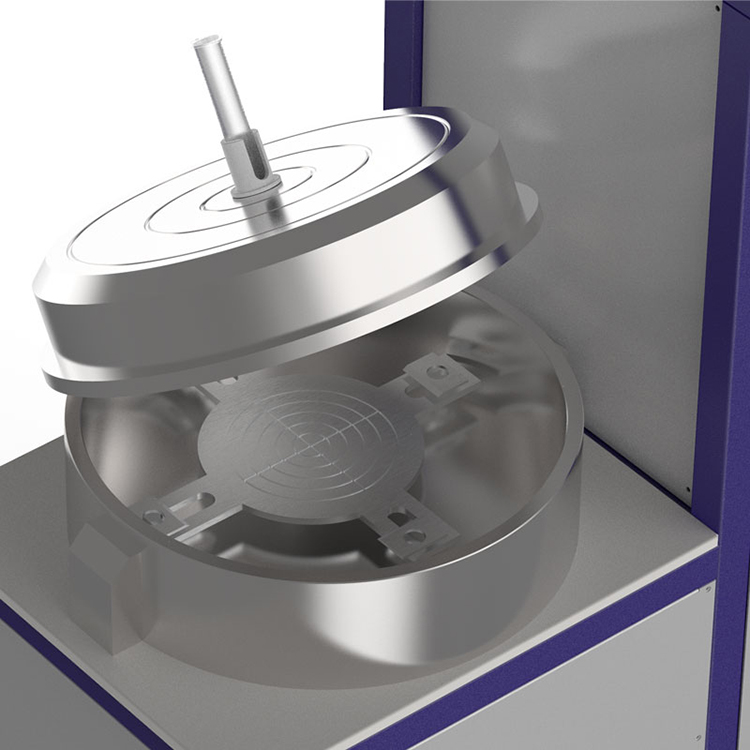

The chamber is made of stainless steel, which is beautiful and easy to clean, and has a locking device. After loading the sample, the chamber can be locked to prevent the sample from flying out in the event of an accident, which can effectively protect the user. In addition, the chamber has a built-in glue outlet for easy collection of waste liquid.

Technical parameters:

Model

CY-SPC12-HP

Chamber

Stainless steel;
Support a diameter of 300mm and a thickness of 2.3mm;
Built-in glue outlet

Spinning speed

≤3000rpm

Speed resolution

0.2rpm

Control mode

15 inch full HD touch screen with USB port upgrade program

Power supply

AC220V 50Hz 2kW

Vacuum pump

Oil-less vacuum pumppumping120L/min

Vacuum interface

KF16
