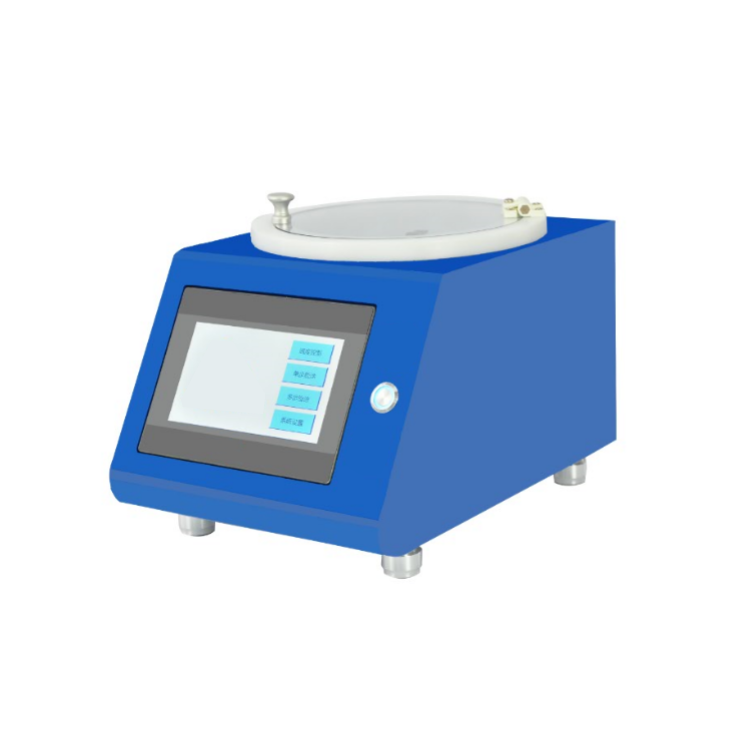

Spin coating unit with UV curing system

    CY-SP8-UV spin coater uses the centrifugal force generated by high-speed rotation to coat the film material. This model is equipped with an ultraviolet light source, which can realize the drying function of special film materials.

CY-SP8-UV spin coater uses the centrifugal force generated by high-speed rotation to coat the film material. This model is equipped with an ultraviolet light source, which can realize the drying function of special film materials.

This machine adopts precision DC brushless motor, which has fast starting speed and stable speed, which ensures the consistency and uniformity of coating thickness.

The sample is fixed by vacuum adsorption, which is easy to operate and can be taken and placed freely. Suction cups of various sizes can be selected according to the sample size.Also it is simple and convenient to replace the vacuum chuck.

Technical parameters:

Model

CY-SP8-UV

Maximum speed

10000 RPM

Speed resolution

1 RPM

Maximum rotation time

3000 S

Rotation time resolution

1 S

Maximum acceleration

8000RPM/S

UV wavelength

365nm

Sample size

≤8inches

Size

290mm(W)x360mm(D)x370mm(H)

Weight

20kg

Power input

AC200-230V,600W

Vacuum input requirements

0.06-0.09Mpa, vacuum flow minimum 15L/min or more

Vacuum interface

φ8mm quick screw interface

Working gas

Non-corrosive gases such as nitrogen, argon, oxygen, etc.
