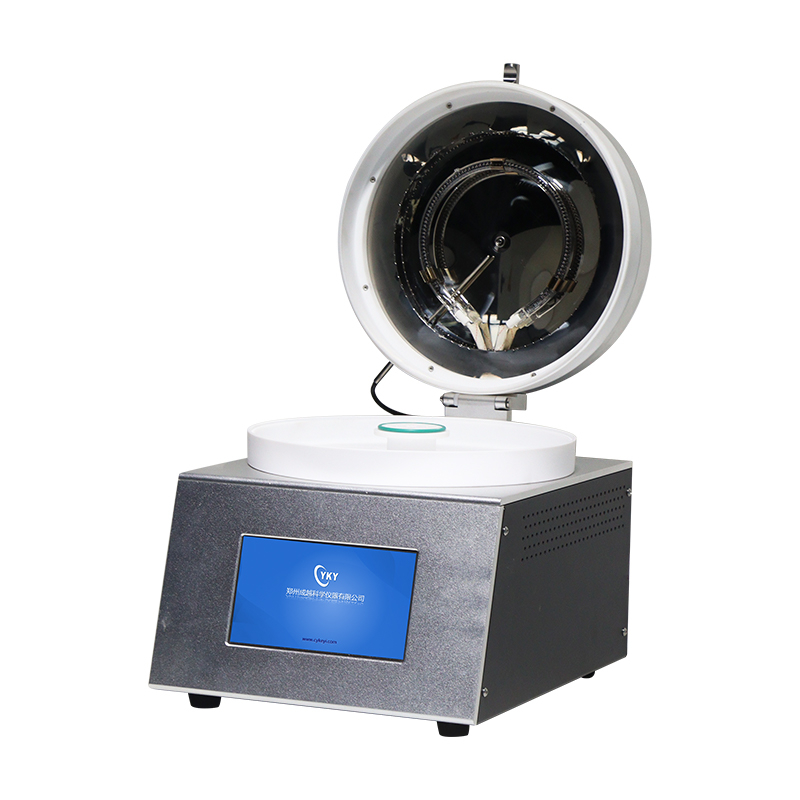

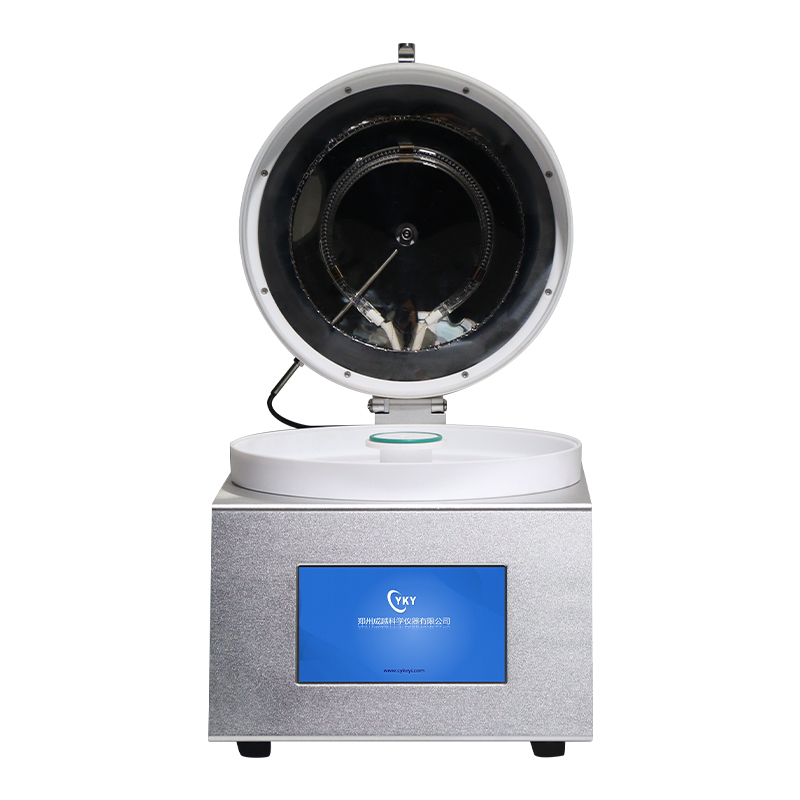

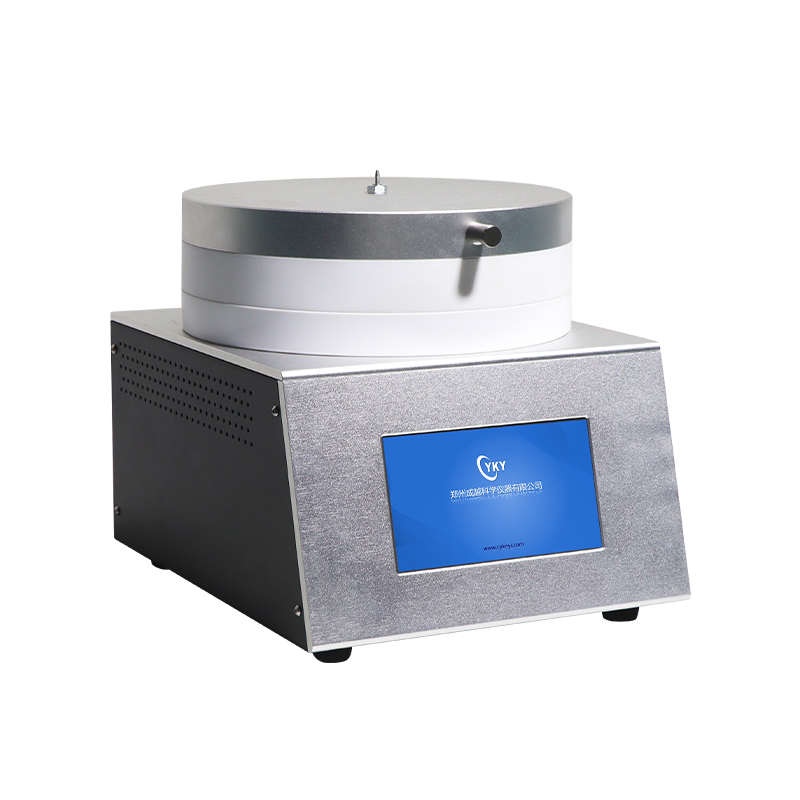

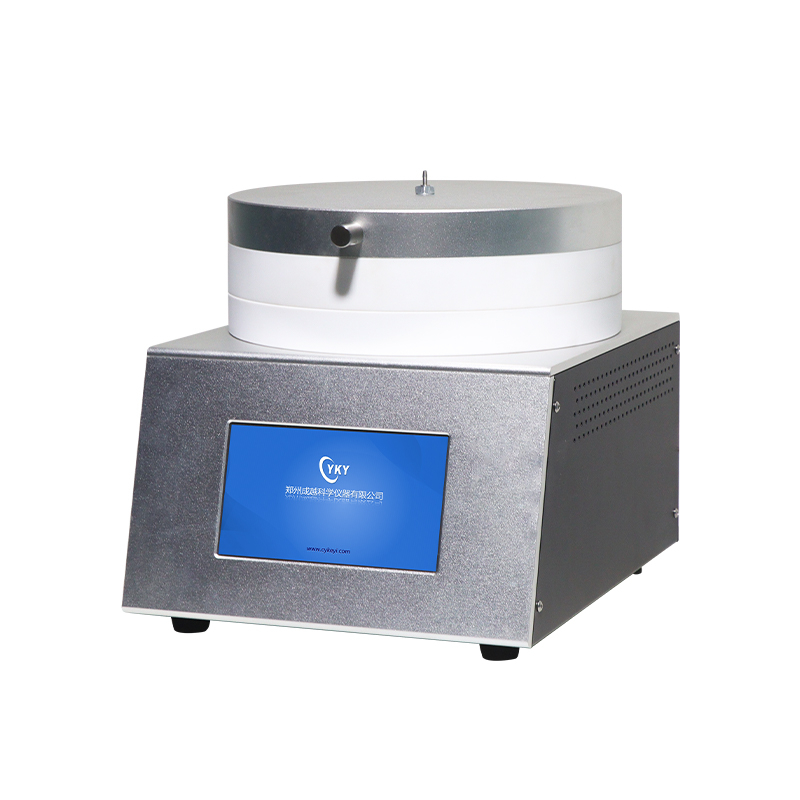

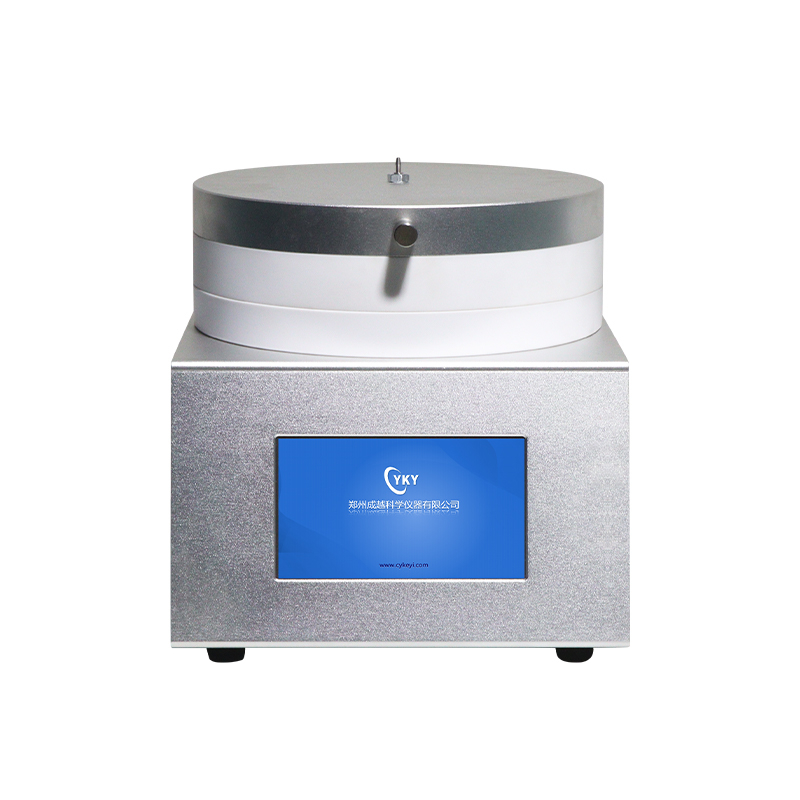

8 inch chassis heating anti corrosion spin coater

8 inch chassis heating anti corrosion spin coater

This product is a spin coater or spin processor, which uses centrifugal force generated by high-speed rotationto coatfilm materials.

Inquire Now Next Product

This product is a spin coater or spin processor, which uses centrifugal force generated by high-speed rotationto coatfilm materials.

This model adopts a special design, sothatthe substrate canbeheated simultaneouslyduring the spin coating process. The maximum heating temperature is 160℃, which can meet the temperaturerequirements ofsome solutions inthe spin coating process.

Technicalparameters:

Product Name	8 inch chassis heating anti corrosion spin coate
Product Model	CY-SPC8-CH
Powersupply	AC220V, 50Hz
Chambermaterial	PTFE
Substrate size	Diameter ≤ 8 inches (200mm)
Heatingmode	Ceramicheating ring
Operatingtemperature	RT-160℃
Rotation speed	0-8000rpm
Speed resolution	1rpm
Operation Mode	7inch HD LCDtouchscreen
Gluedropping mode	Manualglue dispensing, liquid canbe supplied during spin coating
Liquid drain pipe and waste liquidtank	PTFE
Spin coating curve	Each curvehas 30segments, atotal of 100 curves can be stored
Vacuumpump	Oil-lesspump
Pumpingspeed	50 L/min
Standard configuration	With 4 vacuum chucks: 10mm, 25mm, 55mm, 100mm (Other specifications can be customized); One oil-free vacuum rotary vane pump
Warranty	One-yearlimitedwarrantywithlifetime support (demo before purchase available)
