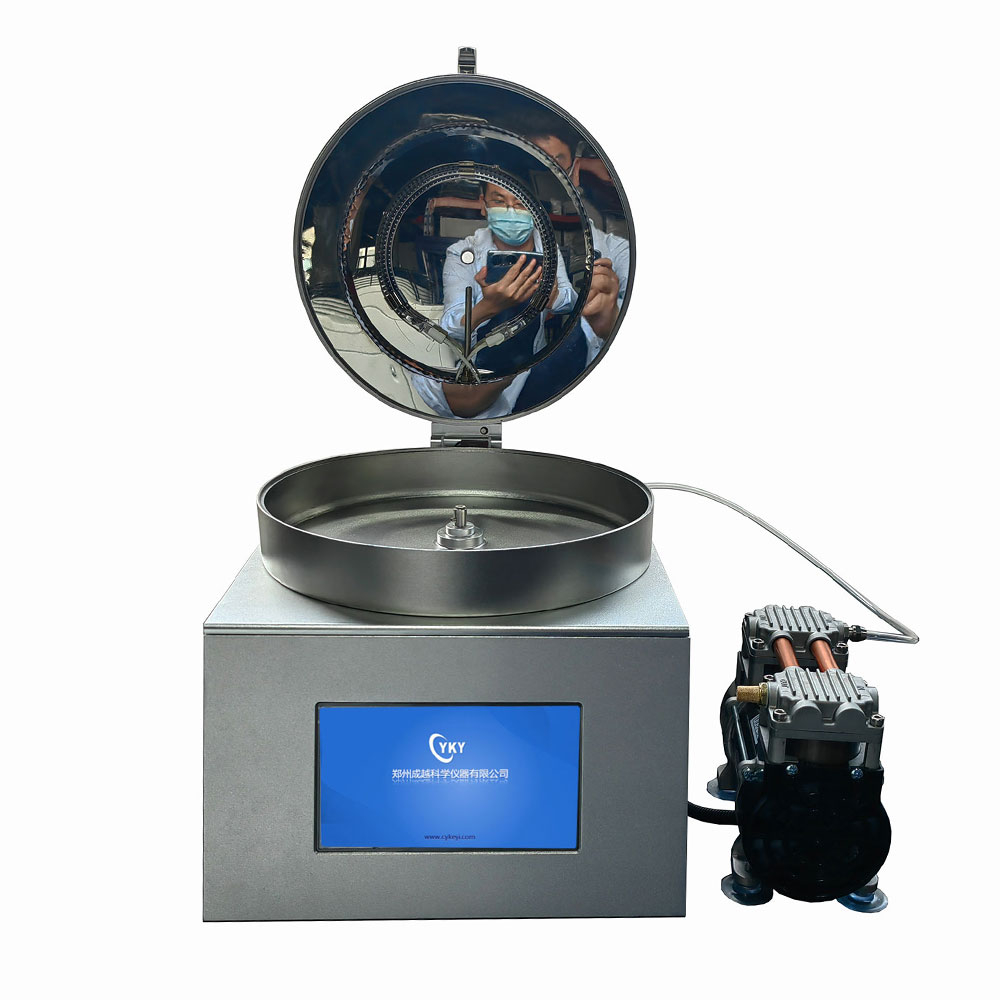

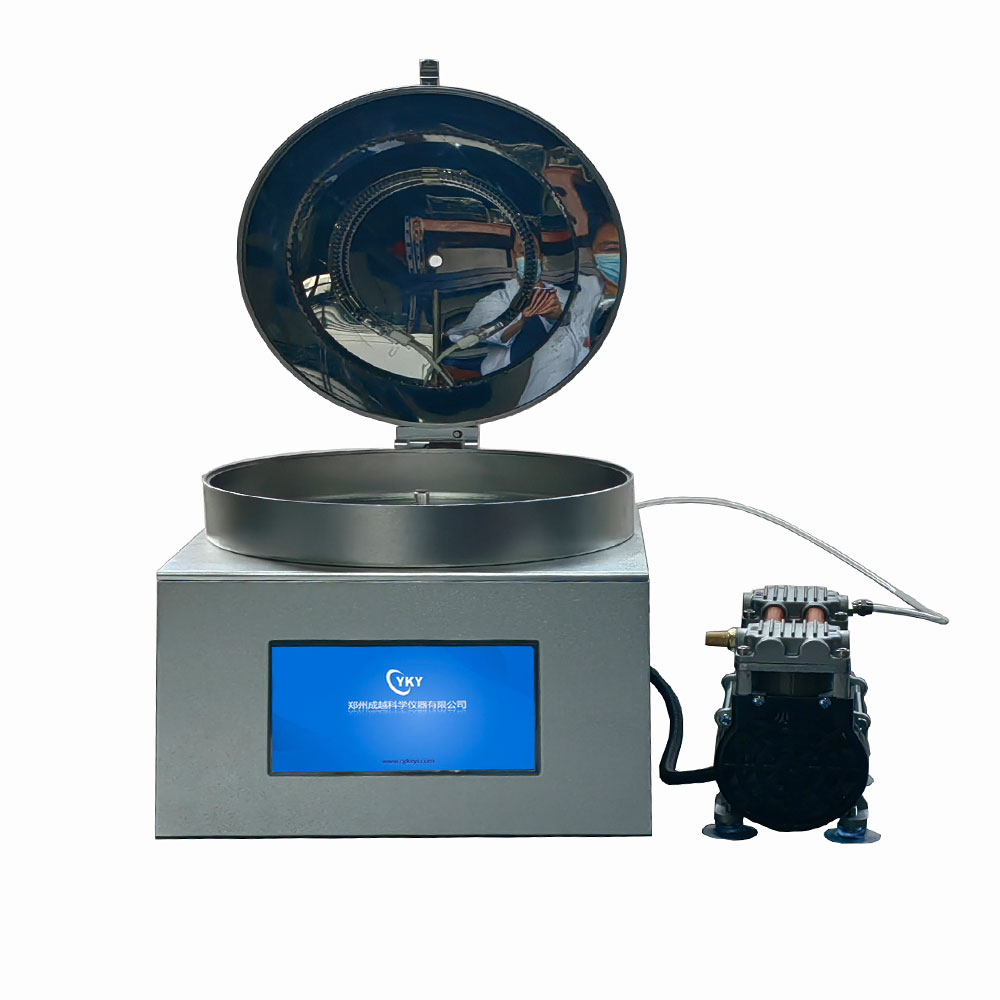

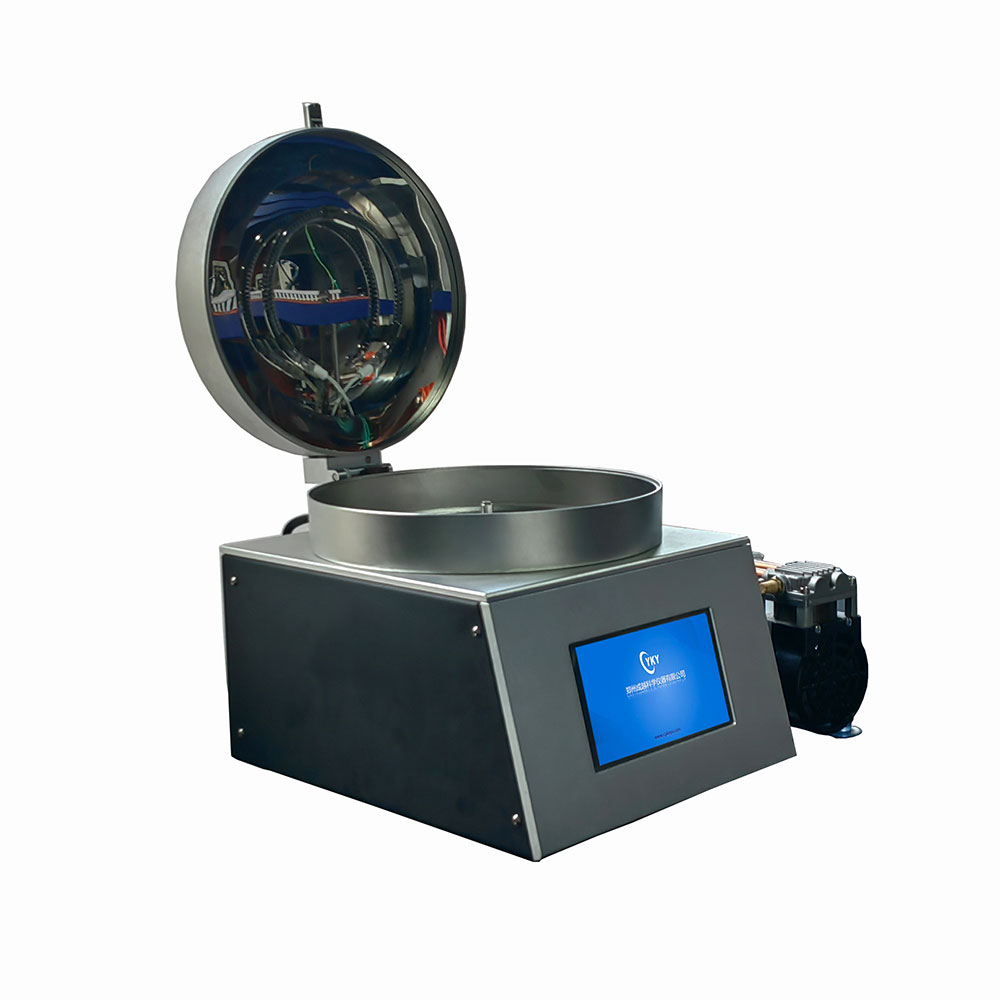

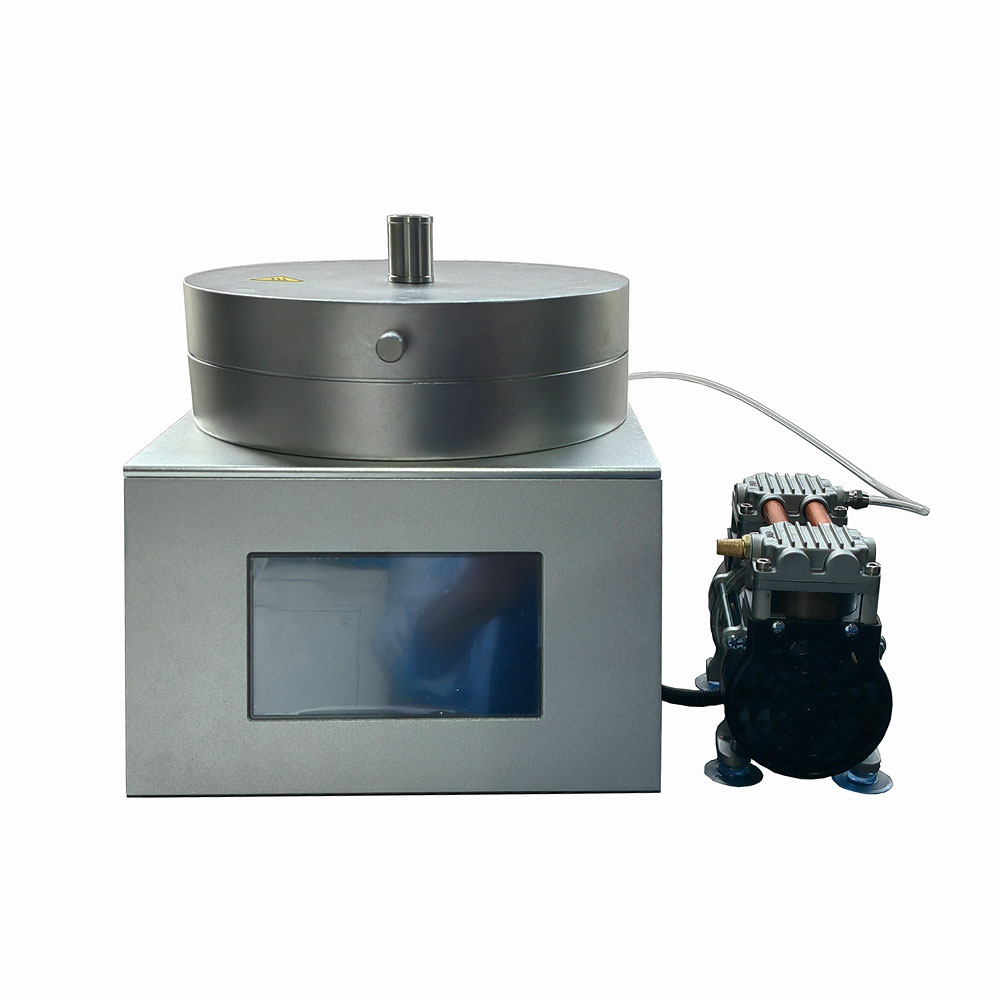

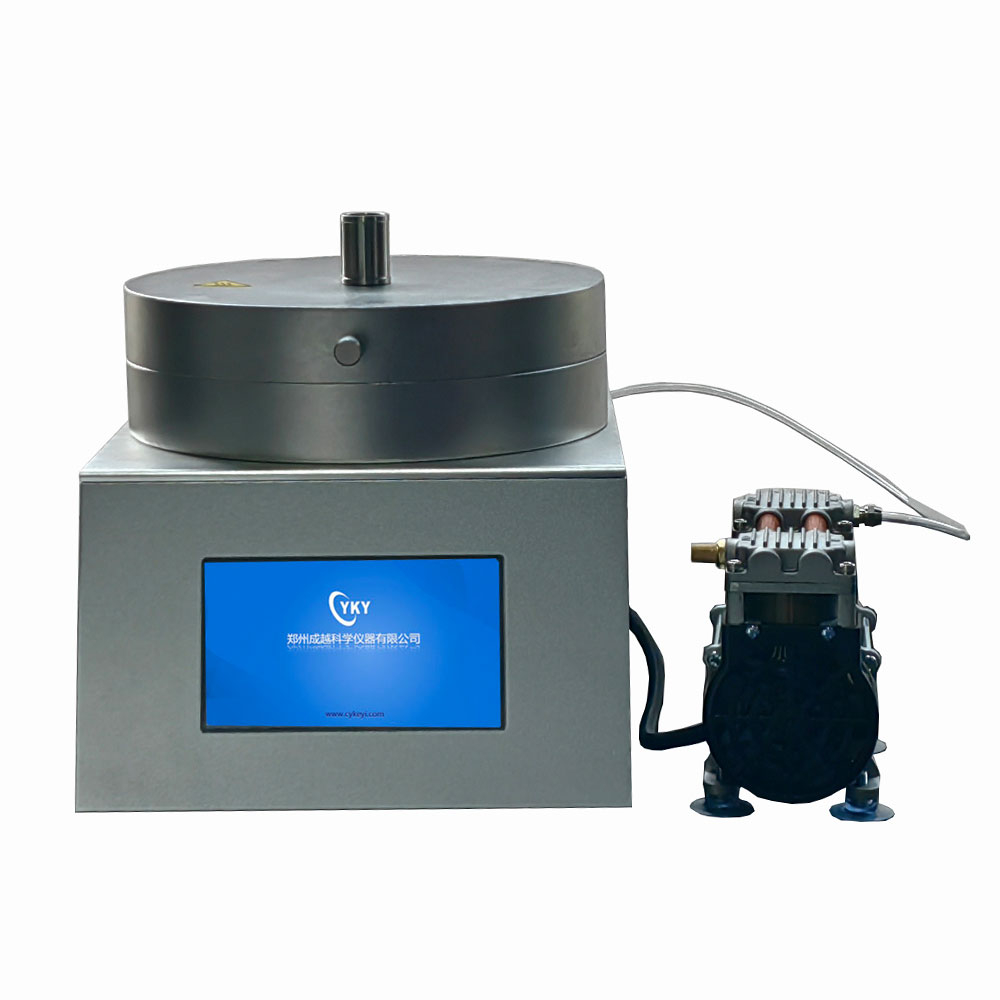

The heating homogenizer mainly uses the principle of centrifugal coating to coat liquid or colloidal materials on silicon, crystals, quartz, ceramics and other substrates to form a film, which has a wide range of applications in the field of material research. The instrument adopts advanced precision motor, the speed can reach 10000 RPM, effectively ensuring the uniformity of film formation. In addition to the basic spin coating function, this product is also equipped with a heating component, which can be heated to 160℃, controlled by an intelligent temperature control meter, temperature determination is accurate, and the heating process is fully controllable. In addition, the instrument adopts touch screen control, and can preset the uniform curve, which greatly simplifies the use process and reduces the learning cost, and is very suitable for laboratory purchase.
FEATURES:
· The coating surface can be heated at constant temperature, heating range: room temperature ~ 200℃, temperature control accuracy 1℃.
· Can be used for uniform coating organic matter, film preparation.
· You can first smooth glue, and then bake glue.
· Can store a variety of different substrate rotating coating process parameters. Each coating
· process can be set to multiple steps of different rotation speeds.
TECHNICAL PARAMETER:
Spin Coater | The spin coater capable to coat liquid or colloidal materials on silicon wafers, crystals, quartz, ceramics and other substrates to form thin films. |
Model No. | CY-SPC8-CH |
Supply voltage | AC220V, 50Hz |
Spin speed | 0~10,000rpm |
Acceleration | 100~5,000rpm/s |
Speed resolution | 1rpm |
Single step time | 3,000s |
Substrate size | Diameter ≤ 8 inches (200mm) |
Chamber material | Aluminum alloy |
Upper cover | PVC (Polyvinyl chloride, for observing the coating state conveniently) |
Sample stage | Gold-plated, copper plate, with good thermal conductivity |
vacuum chucks | 4 vacuum chucks: 10mm,25mm.55mm,100mm; |
Heating mode | Ceramic heating ring |
Heating temperature | ≤200℃ |
Temperature control method | AIP intelligent temperature control |
Operation method | 7 inches HD LCD touch screen |
Dispensing method | precision syringe pump |
Coating curve | 5 segments per curve, a total of 5 curves can be stored |
Pumping port | Φ6mm quick screw interface |
Overall size | 290mm×365mm×300mm |
Vacuum pump | Dry mechanical pump, oil-free vacuum rotary vane pump |
Pumping rate | 1.1L/s |
