500W/1000W 10L plasma cleaner CY-P10L-500W500W/1000W 10L plasma cleaner CY-P10L-500W

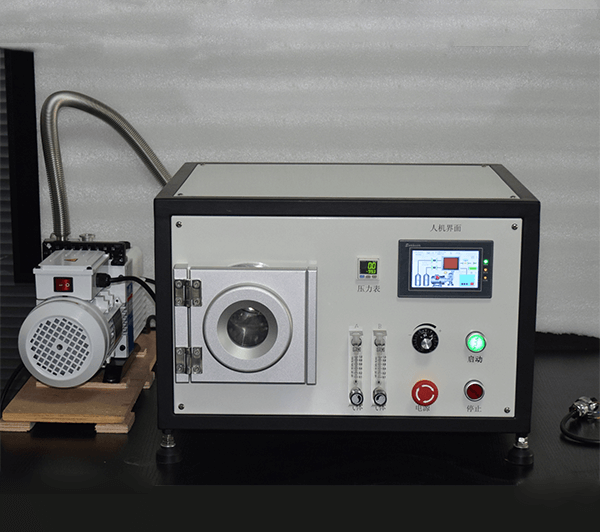

500W/1000W 10L plasma cleaner CY-P10L-500W

    10L plasma cleaner is a compact, non-destructive cleaning device. The plasma cleaner uses low air pressure to excite plasma as a cleaning medium, thereby effectively avoiding secondary pollution caused by the liquid cleaning medium to the object to be cleaned.

10L compact plasma cleaner is equipped with a mechanical vacuum pump, while vacuuming maintains the vacuum of the chamber, the pollutants after the plasma reaction can also be pumped away by the vacuum pump; therefore, the short-time cleaning can completely clean the organic pollutants.

In addition to the cleaning function, this small plasma cleaner can change the surface properties of some materials according to the needs under certain conditions. During the cleaning process, the glow discharge of the small plasma cleaner not only enhances the adhesion, compatibility and wettability of these materials, but also disinfects and sterilizes the materials.

This plasma cleaner is suitable for laboratory and small-scale production. Using 13.56Mhz rf power supply, can be used to match a variety of commonly used gas plasma. There are a variety of common specifications for RF power supply from 100W to 1000W, which can meet the diverse needs of users.

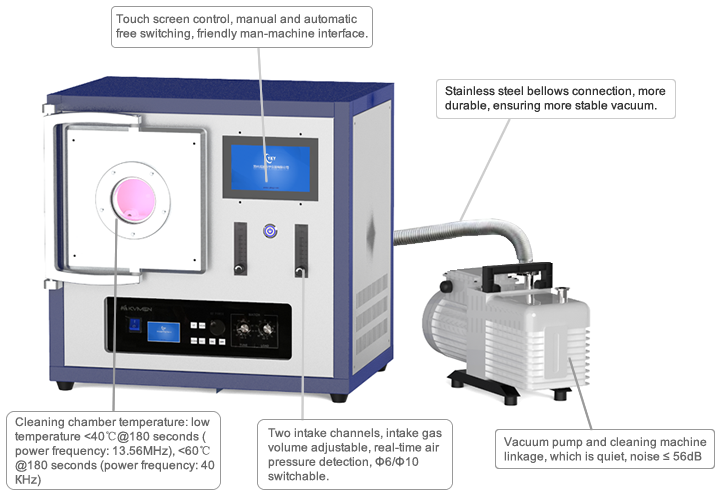

plasma cleaner

500W/1000W 10L plasma cleaner technical parameters:

Main parts

Item

Parameters

Cleaning the chamber

Chamber material

High purity quartz

Chamber size

Diameter 200 mm; Length 340 mm

RF power supply

Power supply features

The power supply is an all-solid-state RF power supply, and adopts a high-stability and high-reliability power amplifier module and a DC module, which effectively ensures the RF power output of the power supply. High quality electronic components are used to ensure the reliability of the products.

Power advantage

Long time normal operation

Simple and flexible operation

High power supply efficiency and low heat generation

With perfect reflection power protection function

RF power

0~500W continuously adjustable/0~1000W continuously adjustable

Signal frequency

13.56MHz ±0.005%

Reflected power

200W

Power stability

±0.1%

RF connector

N type connector

Machine efficiency

75%

Harmonic component

-50 dBc

cooling method

Forced air cooling

Gas measurement

Measuring unit

Float flowmeter

Gas channel

Two channels

A channel range

10100ml

B channel range

16160ml

Vacuum

Vacuum measurement

Digital vacuum gauge (resistance gauge)

Vacuum pump

Two-stage rotary vane vacuum pump

Motor speed

50 Hz: 1440; 60 Hz: 1720

Pumping rate

50 Hz: 1.1L/s; 60 Hz: 1.3L/s

Vacuum range

0.1Pa10000Pa

Ultimate vacuum

0.5Pa

Motor noise

56dB

Pipe interface

Gas inlet: KF16; exhaust port KF16.

Connecting pipe

KF16 vacuum bellows

Vacuum valve

Solenoid valve

Motor Power

400W

Others

Power supply

AC220V 50/60Hz

Total power

1000W/1500W

Operating temperature

-10-- 40

Working vacuum

40Pa

Overall size

600mm×650mm×730mm

Total Weight

80kg (including packaging)

500W/1000W 10L plasma cleaner application fields:

Metal: remove oil, greasy dirt and other organic matter and oxide layer on the metal surface;

Automotive manufacturing: used for pre-treatment of plastics and paint spraying in automotive manufacturing processes;

Textile production: used for the hydrophilicity, hydrophobicity and surface modification of textiles, filter screens and films;

Biomedicine: Petri dishes enhance activity, vascular stents, syringes, catheters and pro-wetting of various materials, before cross-coating treatment;

Aerospace: surface coating pretreatment of insulating materials, electronic components, etc.;

Electronics: circuit board cleaning and etching. Non-oxidation and activation treatment of PP and other materials, to improve solderability;

Semiconductor industry: wafer processing and processing to remove photoresist, pre-package pretreatment;

LED: Pre-treatment before the bracket is cleaned and packaged;

Plastic rubber: Improve the surface activity of PS, PE, PTFE, TPE, POM, AS and PP, making it easy to bond and print.

plasma cleaner applications
