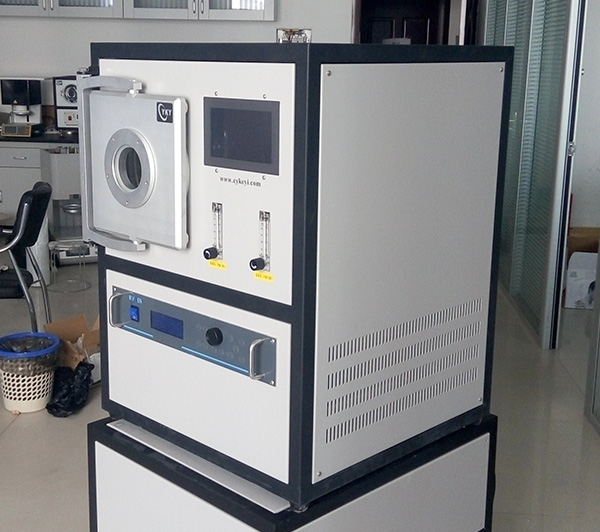

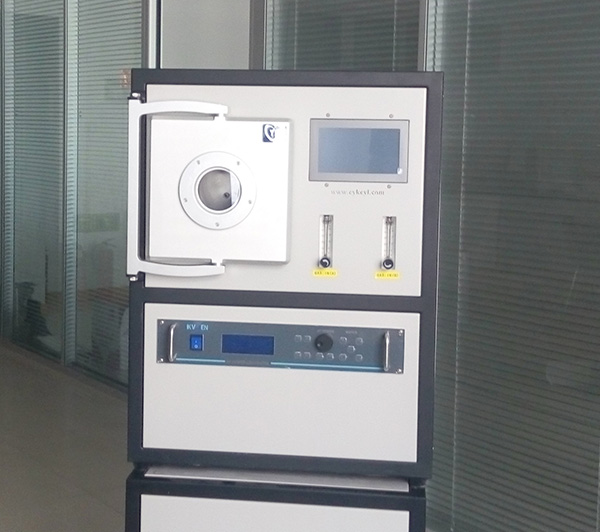

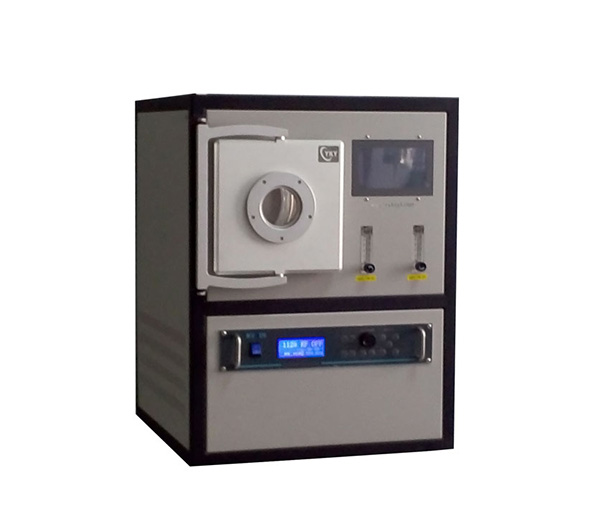

10L 13.56MHz Plasma Cleaner

    Featrues

    1. Environmental technologies: plasma process is the role of gas - solid coherent reactor consumes no water resources, no need to add chemicals and no environmental pollution.

    2. Wide adaptability: regardless of processing substrate type, such as metals, semiconductors, oxides, and most of the polymer material can be a good deal;

    3. Low temperature: close to room temperature, particularly suitable polymer materials, have a longer retention time and a higher surface tension than the corona and flame method.

    4. Multi-function: it involves only a shallow surface of polymer materials (10 -1000A), while preserving the characteristics of the material itself can give it one or more new features;

    5. Low cost: the device is simple, easy operation and maintenance, continuous operation,a few bottles of gas can replace thousands of kilograms cleaning fluid

    6. The whole process technology can be controlled: all the parameters can be setted by the computer and data recording

    7. Treated geometry Unlimited: Big or small, simple or complex, parts or textiles can be processed.


Technical parmaters

Power supply:AC220V
Working current:Total working current not higher than1.2A (Not include the vacuum pump)
RF Power:200W
Radio frequency:13.56MKHZ(offset less than 0.2Hz)
Frequency offsetLess than 0.2KHz
Characteristic impedance:50 Ohm,Automatic matching
Vacuum degree:30Pa—100Pa
Gas flow:10—100ml/min(Adjustable)
Process Control:MCU Automatic and manual mode
Cleaning time:1-6000 secds adjustable
Power supply:10%-100% Adjustable
Inside chamber size200mm×320mm
Outside dimension:600*600*780mm
Weight:45Kg
Vacuum chamber temperatureLess than 65°C
Cooling type:Forced cooling



Application

1.Car industry: ignition coil engine oil seal film

2.Defense industry: Aerospace electrical connectors,Kevlar deal

3.Electronics industry: hard plastic parts, earphone, Cell phone cover

4.Medical industry: intravenous infusion, catheter treatment

5.Textile fiber,rubber and plastic industry and etc
