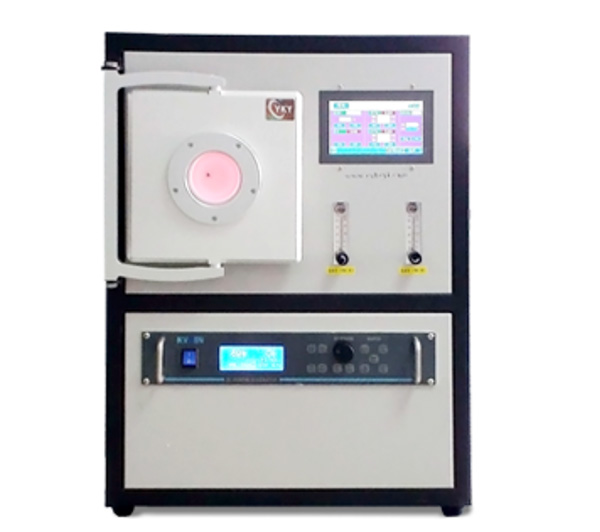

Plasma Cleaning Machine

Plasma Cleaning Machine

    Plasma cleaning machine divided into two types, atmospheric and vacuum; it is widely used in semi-conductor, PCB, medical diagnosis, elastomer industry, optical industry,etc.


    RF generator has 40KHz, 13.56Mhz, and 2.45GHz. According to the usage, can choose the suitable RF Power. Our standard chamber capacity has 2L, 5L,10L which used in laboratory. Basing on different industry, we can do customized chamber dimension with requested RF power.


Model No.CY-P2L
Product Name2L Plasma Cleaner
Display

LCD touch controller

Plasma Cleaning Machine

Working voltageAC 220V, 50Hz
RF Frequency40KHz (13.56MHz for optional)
Coupled modecondenser coupling, without pollute sample
RF power200 w
RF offset< 0.2KHz
Characteristic impedance50Ω, automatic matching
Vacuum degree

10-100Pa, equipped with a mechanical pump

Plasma Cleaning Machine

If request high vacuum, please select our turbo pump system

Plasma Cleaning Machine

(Optional)

Gas speed

Two way Float Flow Gas Control10-100ml/min, adjustable

Plasma Cleaning Machine

Control

PLC Touch Panel Program controlAuto/Manual two mode for optional

Plasma Cleaning Machine

Inner chamber size

 Stainless Steel Chamber with Φ 100*270mm

Plasma Cleaning Machine

If Chamber is not enough for using, we have Φ 150*270mm (capacity: 5L)200* 200*260mm (capacity: 10L)for optional

Pressure Gauge

A simple digital pressure gauge is equipped for reading

Plasma Cleaning Machine

If request high precision vacuum reading, please select digital vacuum gauge:

Plasma Cleaning Machine

(Optional)

Cooling wayForced cooling
Outer dimension440*390*200mm
Gross weight35 kg
Time of delivery10 working days after receive the payment
