4mm direct spray gun plasma cleaner4mm direct spray gun plasma cleaner

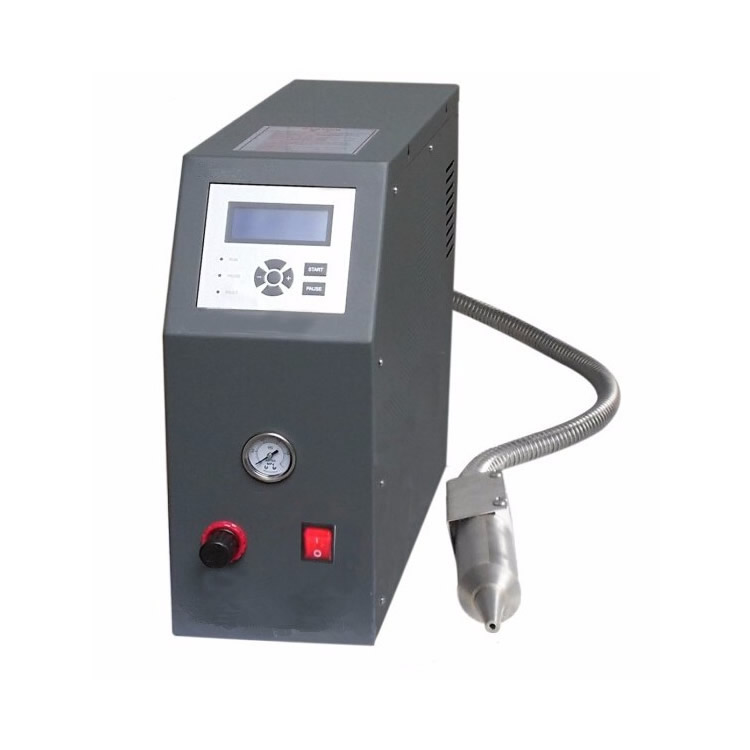

4mm direct spray gun plasma cleaner

    4mm direct spray gun plasma cleaner can't produce any pollution,when it is processing the machine,which can be matched with the original production line, to achieve fully automatic online production, saving labor costs, using plasma to achieve the results that conventional cleaning methods can not achieve.

System standard accessories

Equipment size

280W * 450D * 280Hmm



Input power



0-600W adjustable

High voltage frequency



Overload protection, short circuit   protection, open circuit protection, temperature protection

remote control

Local control and remote control are   available

Spray gun selection

Direct spray gun


1.The role of plasma cleaning

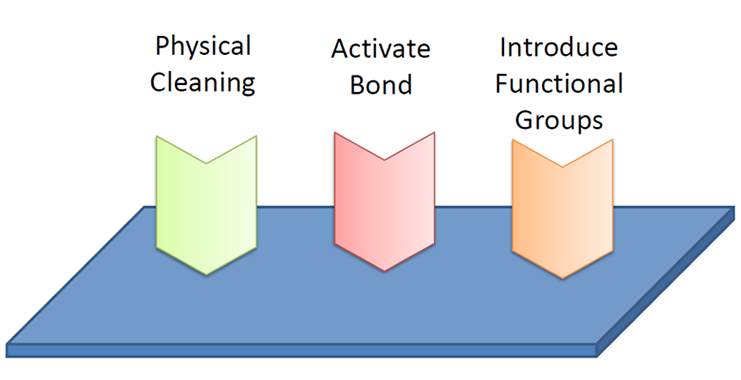

The principle of plasma cleaning is mainly:

(A) Etching on the surface of the material - physical effect

A large number of active particles in the plasma, such as a large number of ions, excited molecules, and free radicals, act on the surface of the solid sample, which not only removes the original contaminants and impurities, but also produces an etching effect to roughen the surface of the sample and form many fine pits, which increases the specific surface of the sample,improves the wetting properties of solid surfaces.

(B) activation bond energy, cross-linking

The energy of the particles in the plasma is between 0 and 20 eV, and most of the bond energy in the polymer are between 0 and 10 eV. Therefore, after the plasma acts on the solid surface, the original chemical bond on the solid surface can be broken. Free radicals in the plasma form a network of crosslinked structures with these bonds, greatly activating surface activity.

(C) Formation of new functional groups - chemical action

If a reactive gas is introduced into the electric discharge gas, a complicated chemical reaction occurs on the surface of the activated material, and new functional groups such as hydrocarbonyl, amidogen, carboxyl group, and the like are introduced, and these functional groups are all active groups, which can significantly improve the surface activity of the material.

plasma cleaner

2.Advantages of atmospheric low temperature plasma cleaning

Plasma cleaning is an important material surface modification method and has been widely used in many fields. Compared with some traditional cleaning methods, such as ultrasonic cleaning, UV cleaning, etc., it has the following advantages:

(A) low processing temperature

The processing temperature can be as low as 80℃ and below 50 ℃. Low processing temperatures ensure no thermal effects on the sample surface.

(B) no pollution during the whole process

The plasma cleaner itself is a very environmentally friendly device that does not cause any pollution and does not cause any pollution during the treatment process. It can be combined with the original production line to achieve fully automatic online production, saving labor costs.

(C) stable treatment effect

The treatment effect of plasma cleaning is very uniform and stable, and the conventional sample maintains good effect for a long time after treatment.

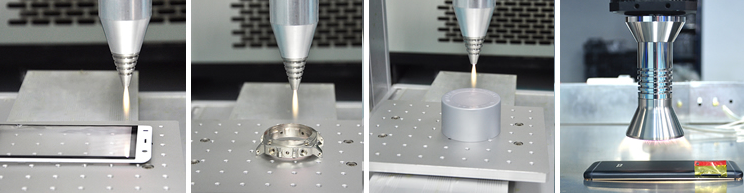

(D) It can be perfectly matched with automated assembly lines to increase production efficiency

According to the user's site requirements, the optimal assembly line production plan is configured to greatly improve production efficiency.

plasma cleaner

3.Product principle

The structure of the plasma cleaning machine is mainly divided into three major components, namely high-voltage excitation power supply, plasma generator spray gun, and control system.

(A) High-voltage excitation power supply:

The generation of plasma requires high-voltage excitation, and the atmospheric low-temperature plasma is excited by an intermediate frequency power supply at a frequency of 10-40 kHz. The high voltage is at 4-10KV. The parameters can be adjusted according to the actual conditions of the sample, and the optimal modification effect has been achieved.

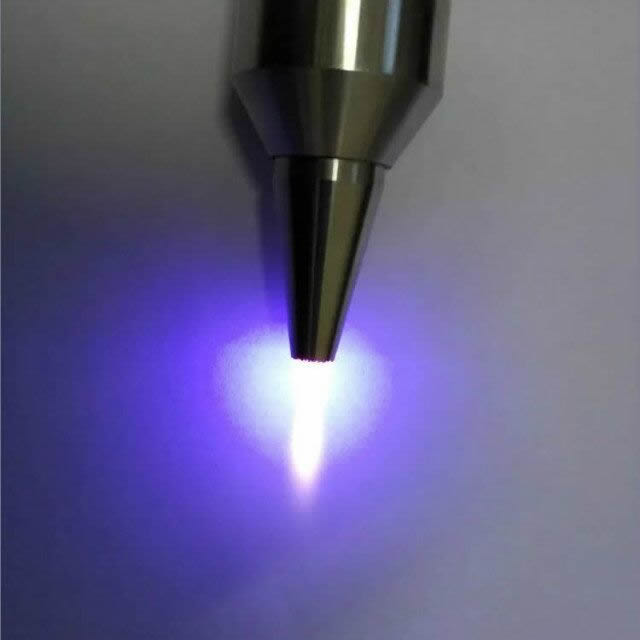

(B) Plasma generator spray gun:

The atmospheric low-temperature plasma generator spray gun can be divided into two types: jet flow direct injection and rotary direct injection, the difference is that the treatment area is different.

(C) Control system:

The control system functions is to control the operation of the entire atmospheric low temperature plasma cleaning equipment and the protection of the overall system
