300W 5L plasma cleaner CY-P5L-300W300W 5L plasma cleaner CY-P5L-300W300W 5L plasma cleaner CY-P5L-300W

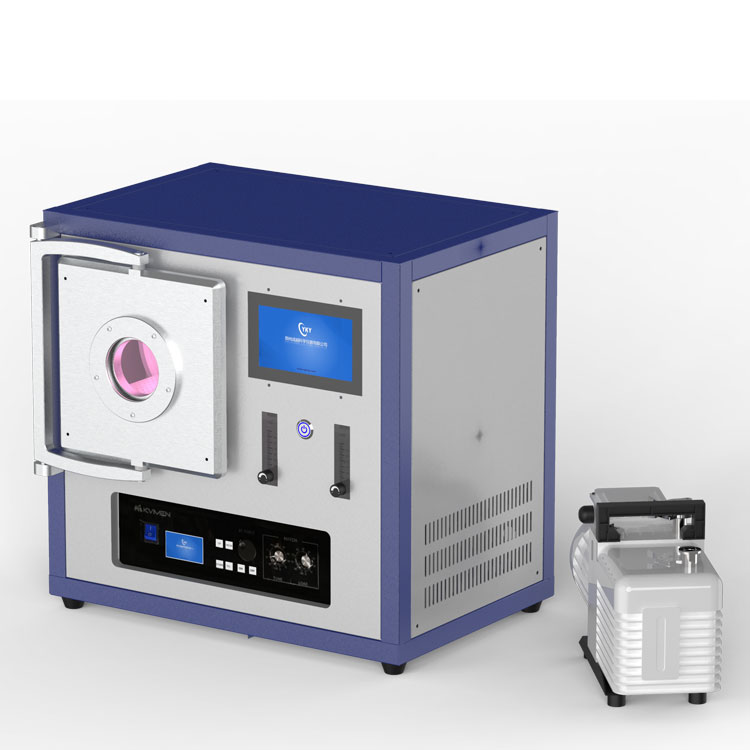

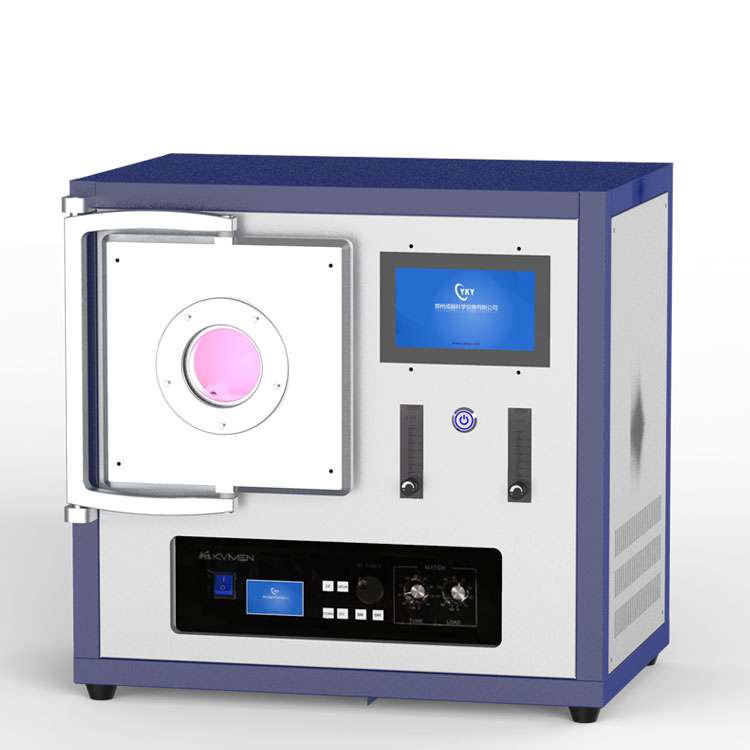

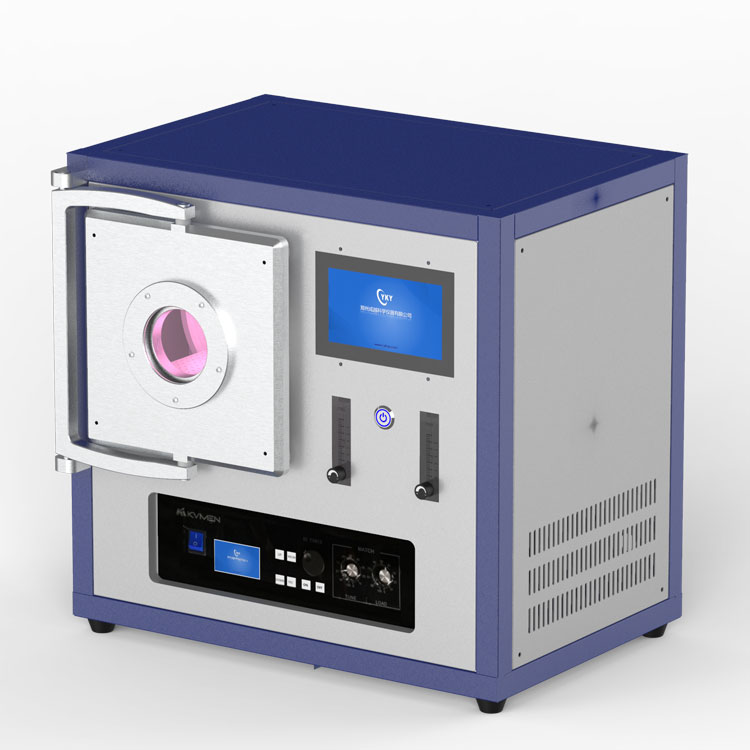

300W 5L plasma cleaner CY-P5L-300W

    5L plasma cleaner is a compact, non-destructive cleaning device. The plasma cleaner uses low air pressure to excite plasma as a cleaning medium, thereby effectively avoiding secondary pollution caused by the liquid cleaning medium to the object to be cleaned.

5L plasma cleaner is equipped with a mechanical vacuum pump, while vacuuming maintains the vacuum of the chamber, the pollutants after the plasma reaction can also be pumped away by the vacuum pump; therefore, the short-time cleaning can completely clean the organic pollutants.

In addition to the cleaning function, this small plasma cleaner can change the surface properties of some materials according to the needs under certain conditions. During the cleaning process, the glow discharge of the small plasma cleaner not only enhances the adhesion, compatibility and wettability of these materials, but also disinfects and sterilizes the materials.

This plasma cleaner is suitable for laboratory and small-scale production. Using 13.56Mhz rf power supply, can be used to match a variety of commonly used gas plasma. There are a variety of common specifications for RF power supply from 100W to 1000W, which can meet the diverse needs of users.

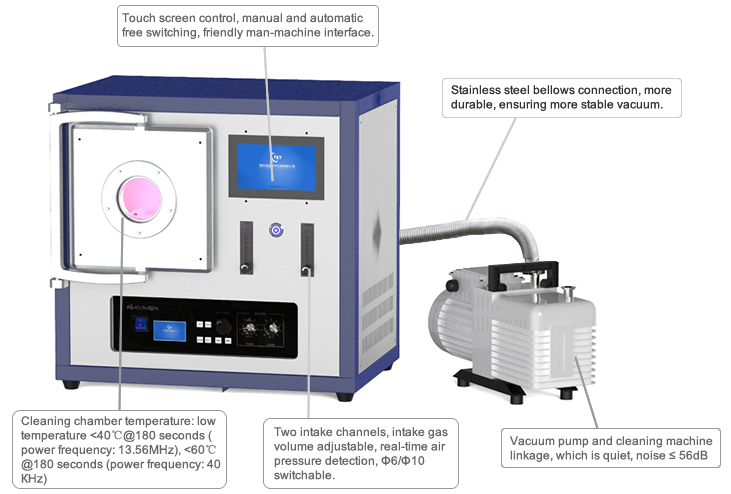

plasma cleaner

300W 5L plasma cleaner technical parameters:

Main parts



Cleaning the chamber

Chamber material

High purity quartz

Chamber size

Diameter 200 mm; Length 170 mm

RF power supply

Power supply features

The power supply is an all-solid-state RF power  supply, and adopts a high-stability and high-reliability power amplifier module and a DC module, which effectively ensures the RF power output of the power supply. High quality electronic components are used to ensure the reliability of the products.

Power advantage

Long time normal operation

Simple and flexible operation

High power supply efficiency and low heat generation

With perfect reflection power protection function

RF power

0~300W continuously adjustable

Signal frequency

13.56MHz ±0.005%

Reflected power


Power stability


RF connector

N type connector

Machine efficiency


Harmonic component

-50 dBc

cooling method

Forced air cooling

Gas measurement

Measuring unit

Float flowmeter

Gas channel

Two channels

A channel range


B channel range



Vacuum measurement

Digital vacuum gauge (resistance gauge)

Vacuum pump

Two-stage rotary vane vacuum pump

Motor speed

50 Hz: 1440; 60 Hz: 1720

Pumping rate

50 Hz: 1.1L/s; 60 Hz: 1.3L/s

Vacuum range


Ultimate vacuum


Motor noise


Pipe interface

Gas inlet: KF16; exhaust port KF16.

Connecting pipe

KF16 vacuum bellows

Vacuum valve

Solenoid valve

Motor Power



Power supply

AC220V 50/60Hz

Total power


Operating temperature

-10- 40

Working vacuum


Overall size


Total Weight

80kg (including packaging)

300W 5L plasma cleaner applications:

Metal: remove oil, greasy dirt and other organic matter and oxide layer on the metal surface;

Automotive manufacturing: used for pre-treatment of plastics and paint spraying in automotive manufacturing processes;

Textile production: used for the hydrophilicity, hydrophobicity and surface modification of textiles, filter screens and films;

Biomedicine: Petri dishes enhance activity, vascular stents, syringes, catheters and pro-wetting of various materials, before cross-coating treatment;

Aerospace: surface coating pretreatment of insulating materials, electronic components, etc.;

Electronics: circuit board cleaning and etching. Non-oxidation and activation treatment of PP and other materials, to improve solderability;

Semiconductor industry: wafer processing and processing to remove photoresist, pre-package pretreatment;

LED: Pre-treatment before the bracket is cleaned and packaged;

Plastic rubber: Improve the surface activity of PS, PE, PTFE, TPE, POM, AS and PP, making it easy to bond and print.

plasma cleaner application
