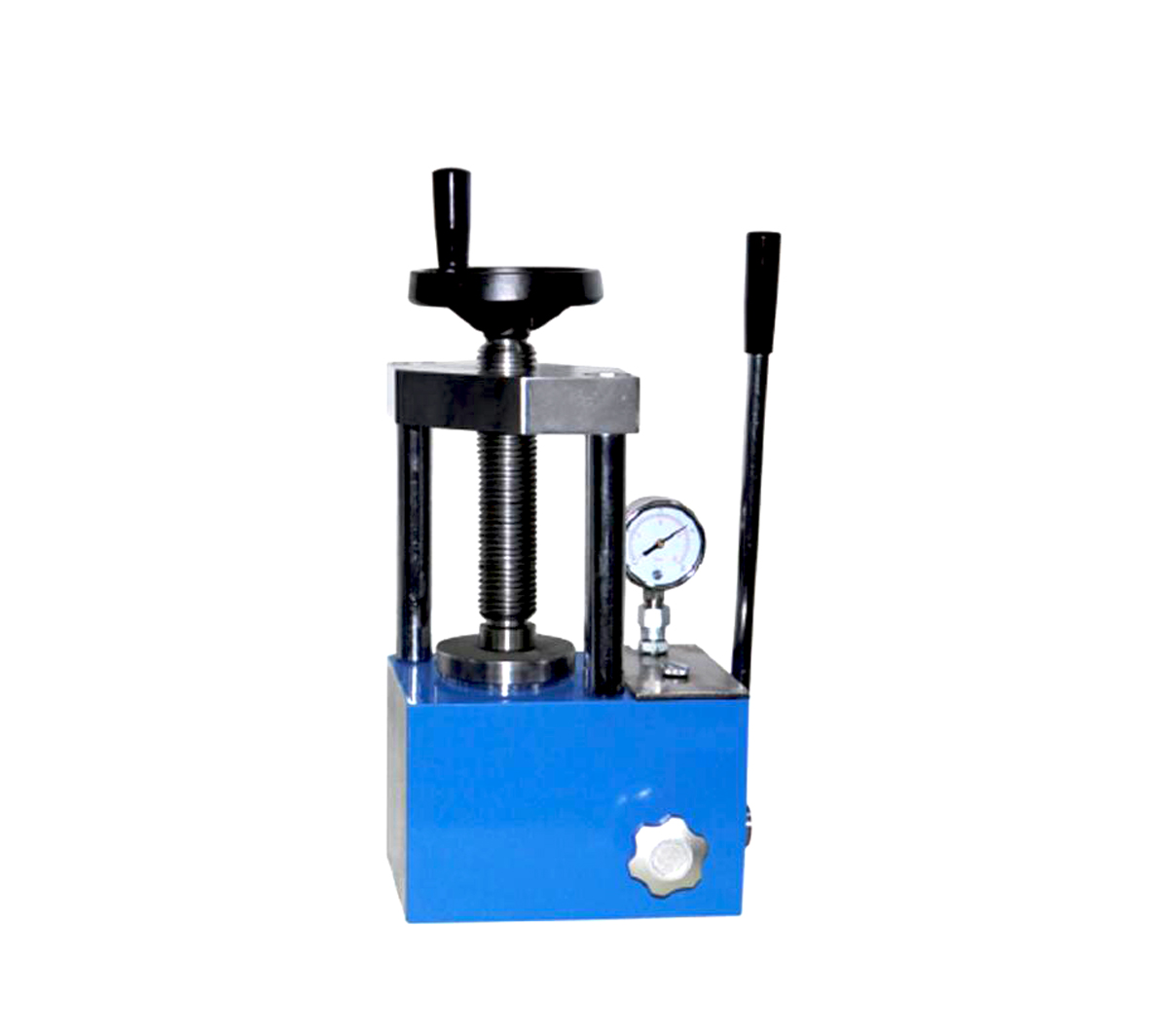

12T manually powder hydraulic press with pointer pressure gauge

12T manually powder hydraulic press with pointer pressure gauge

    The 12T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc with maximum 12T heating press. It has a compact structure will all in one structure to protective from oil link.

Model No.

PC-12

Pressure gauge

0~12T (0~30MPa)

Piston diameter

Φ70mm

Main structure

All in one structure, no oil link point

Pressure gauge

pointer pressure gauge, can replace digital gauge

Max piston distance

30mm

Pressure stability

≤1MPa/10min

Working stage

Φ80mm

Working space

96*130mm

Outer dimension

225*155*380mm

Gross Weight

28kg

12T Pressure conversion

Real Pressure

System Pressure

1T

2.5MPa

2T

5MPa

3T

7.5MPa

4T

10MPa

5T

12.5MPa

6T

15MPa

8T

20MPa

10T

25MPa

12T

30MPa
