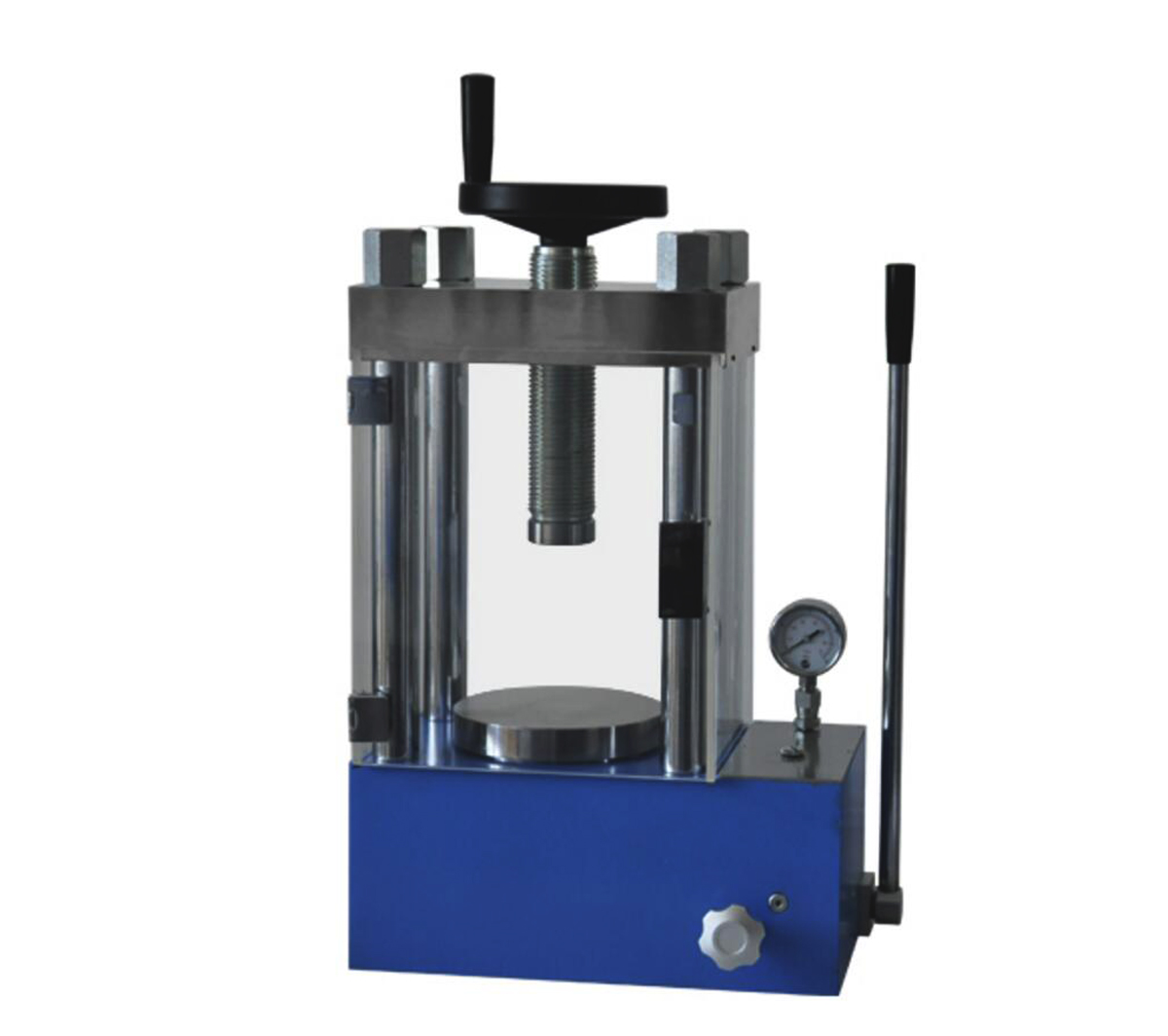

60T Laboratory Manual Hydraulic Press with PMMA Cover CY-PC-60F

60T Laboratory Manual Hydraulic Press with PMMA Cover CY-PC-60F

    The 60T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc with maximum 60 Ton pressing. It has a PMMA protective cover to make sure user avoid hurting

Model No.

PC-60F

Pressure gauge

0~60T (0~34MPa)

Piston diameter

Φ150mm

Main structure

All in one structure, no oil link point

Pressure gauge

pointer pressure gauge, can replace digital gauge

Max piston distance

50mm

Protective cover

PMMA

Pressure stability

≤1MPa/10min

Working stage

Φ160mm

Working space

185*250mm

Outer dimension

405*240*565mm

Gross Weight

75kg

60T hydraulic press pressure conversion

Real Pressure

System Pressure

1T

0.56MPa

3T

1.7MPa

5T

2.8MPa

10T

5.6MPa

20T

11.3MPa

30T

17MPa

40T

22.6MPa

50T

28.3MPa

60T

34MPa
