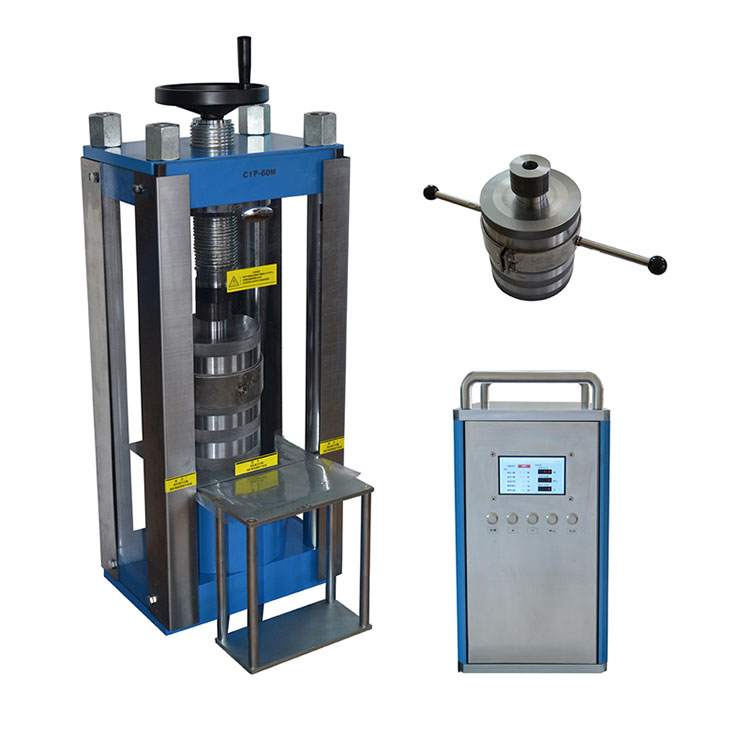

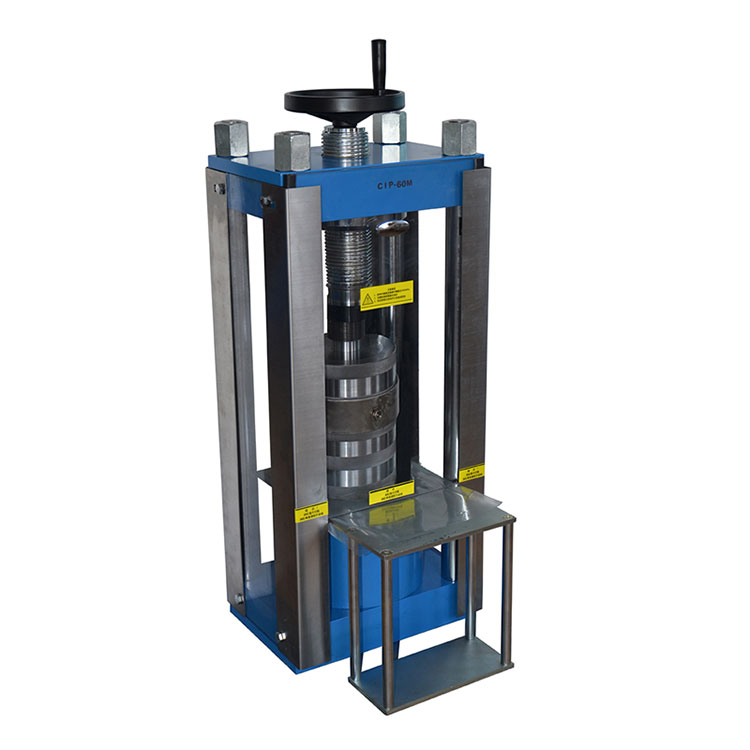

Ultra high pressure cold isostatic press CY-500CIP-60MAF

    The CY-500CIP-60MAF ultra-high pressure cold isostatic press is designed for the material research department of colleges and universities and scientific research institutes that need small pieces of analytical samples. It has the characteristics of small size, reliable operation and simple operation.

The CY-500CIP-60MAF ultra-high pressure cold isostatic press is to place the sample product in a closed container filled with liquid. After the power is applied, the pressure applied by the liquid on each surface of the sample is equal. In a high-pressure environment, the density of the sample product becomes large, the gap of the sample particles becomes smaller and the desired shape is obtained. With the advancement of science and technology and our in-depth study of powder materials, isostatic presses are increasingly used in the molding of powder metallurgy, composite materials, refractory materials, ceramics, and hard alloys. The CY-500CIP-60MAF ultra-high pressure cold isostatic press is designed for the material research department of colleges and universities and scientific research institutes that need small pieces of analytical samples. It has the characteristics of small size, reliable operation and simple operation.

Technical parameters of ultra-high pressure cold isostatic press:

Product name

CY-500CIP-60MAF ultra high pressure cold isostatic press

Main feature

The   machine adopts LCD display, automatic control of pressurization process, program pressurization - program pressure maintenance - timing pressure relief; Input mold cavity diameter program to automatically convert the pressure of the sample.

Technical parameters

Pressure range of electric press: 0-150T

power supply: 220V 50Hz

power: 1.5KW

Pressure holding time: 0-999 minutes

Piston diameter: φ200mm

the maximum piston stroke: 50mm

Space size: 260 × 400 × 410mm

Mold withstands maximum pressure: 500Mpa

Pressure chamber: φ60×150mm

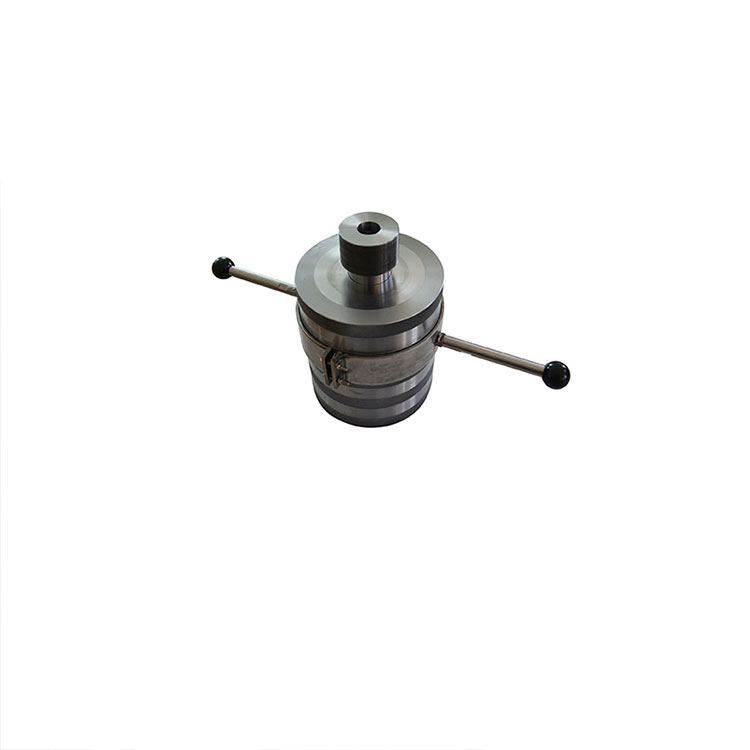

Mold weight: 65Kg

Mold size: Φ210×350mm

Product specifications

Electric cold isostatic press size: 850 × 500 × 1100mm;

Electric cold isostatic press weight: 520kg
