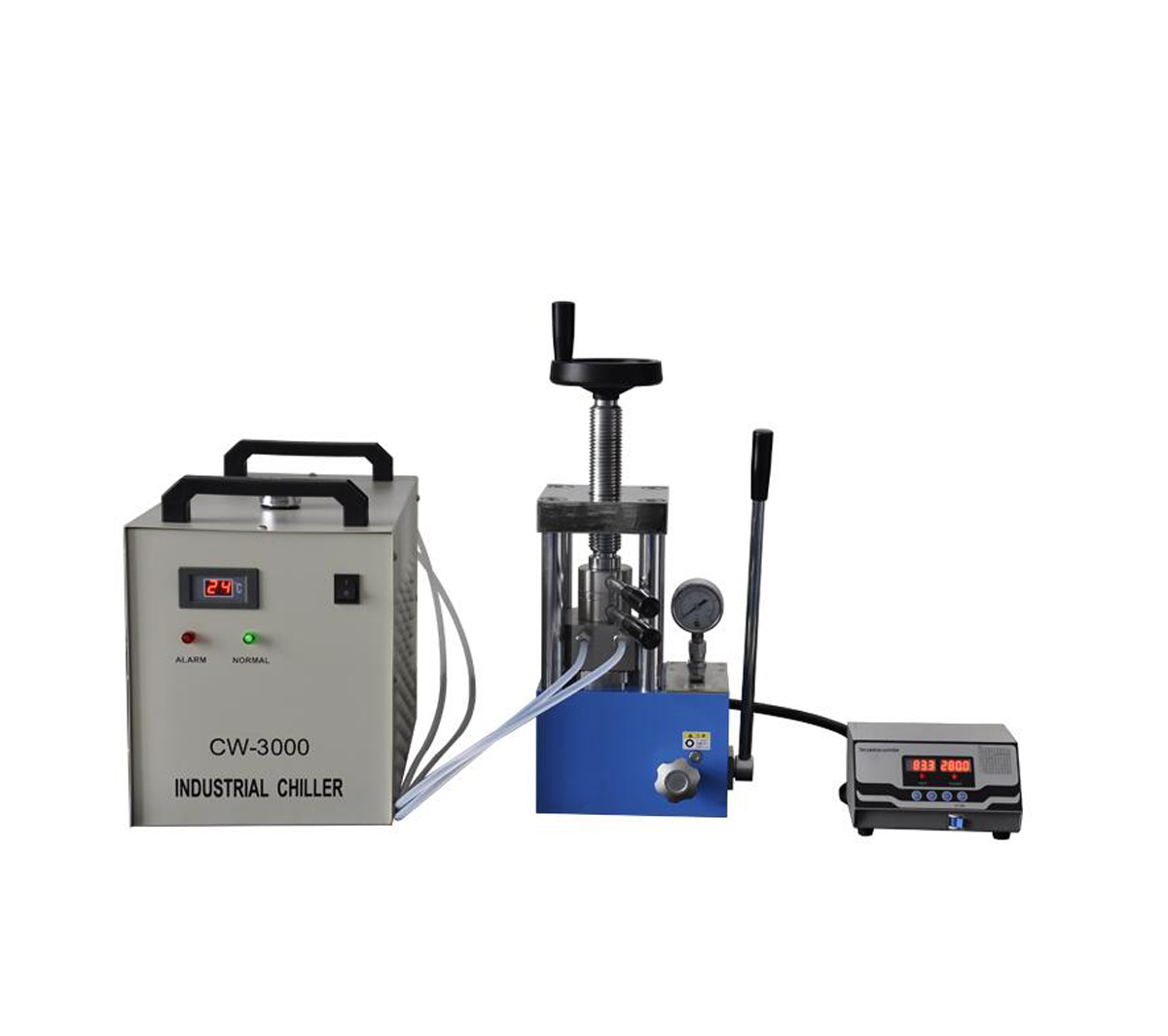

300℃ 24T cylindrical electric heating press with heating mold CY-PCH-600A

Pressure gauge

0~24T (0~34MPa)

Piston diameter

Φ95mm

Main structure

All in one structure, no oil link point

Pressure gauge

Pointer Pressure Gauge

Temperature control

Rm~600℃

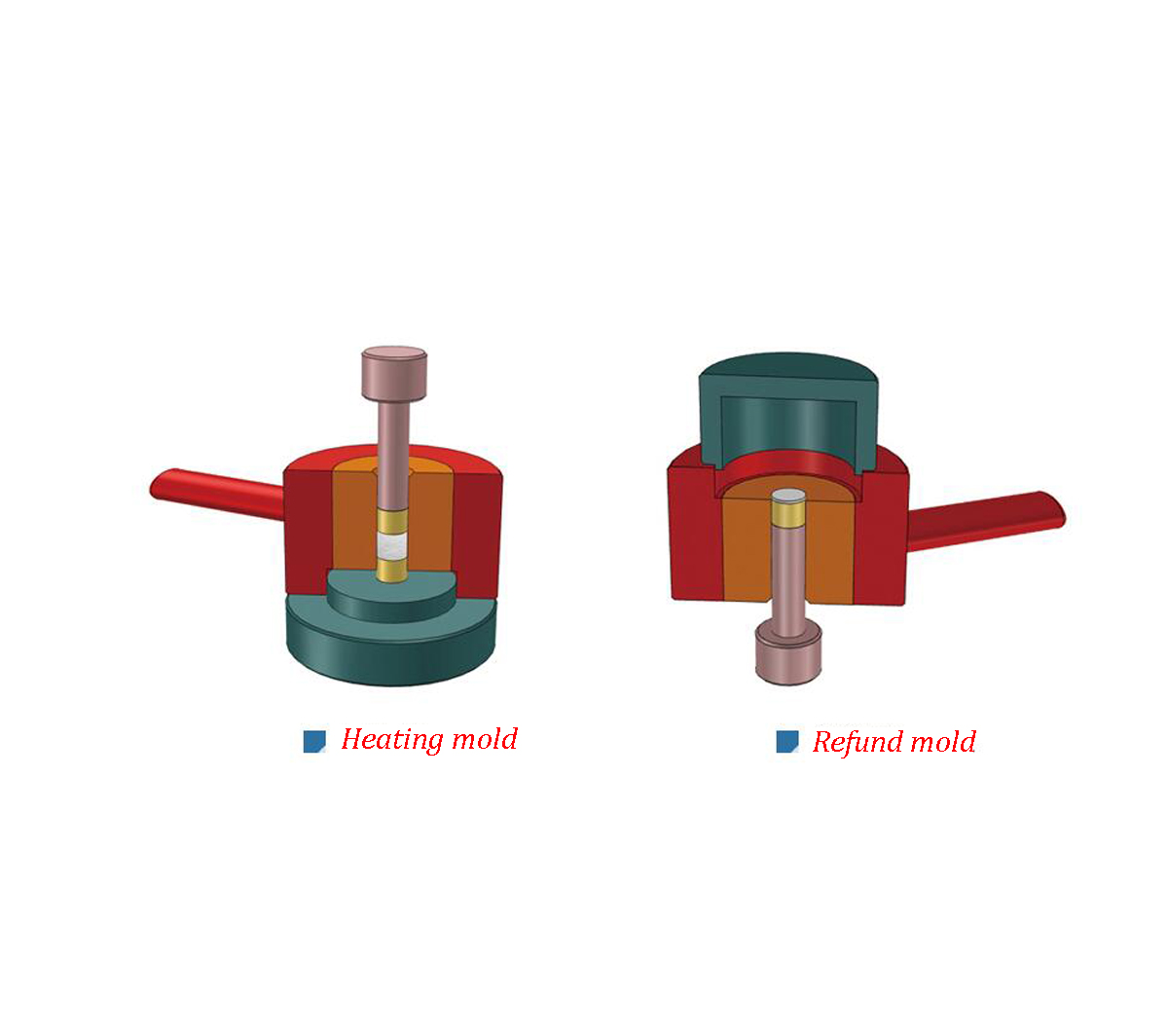

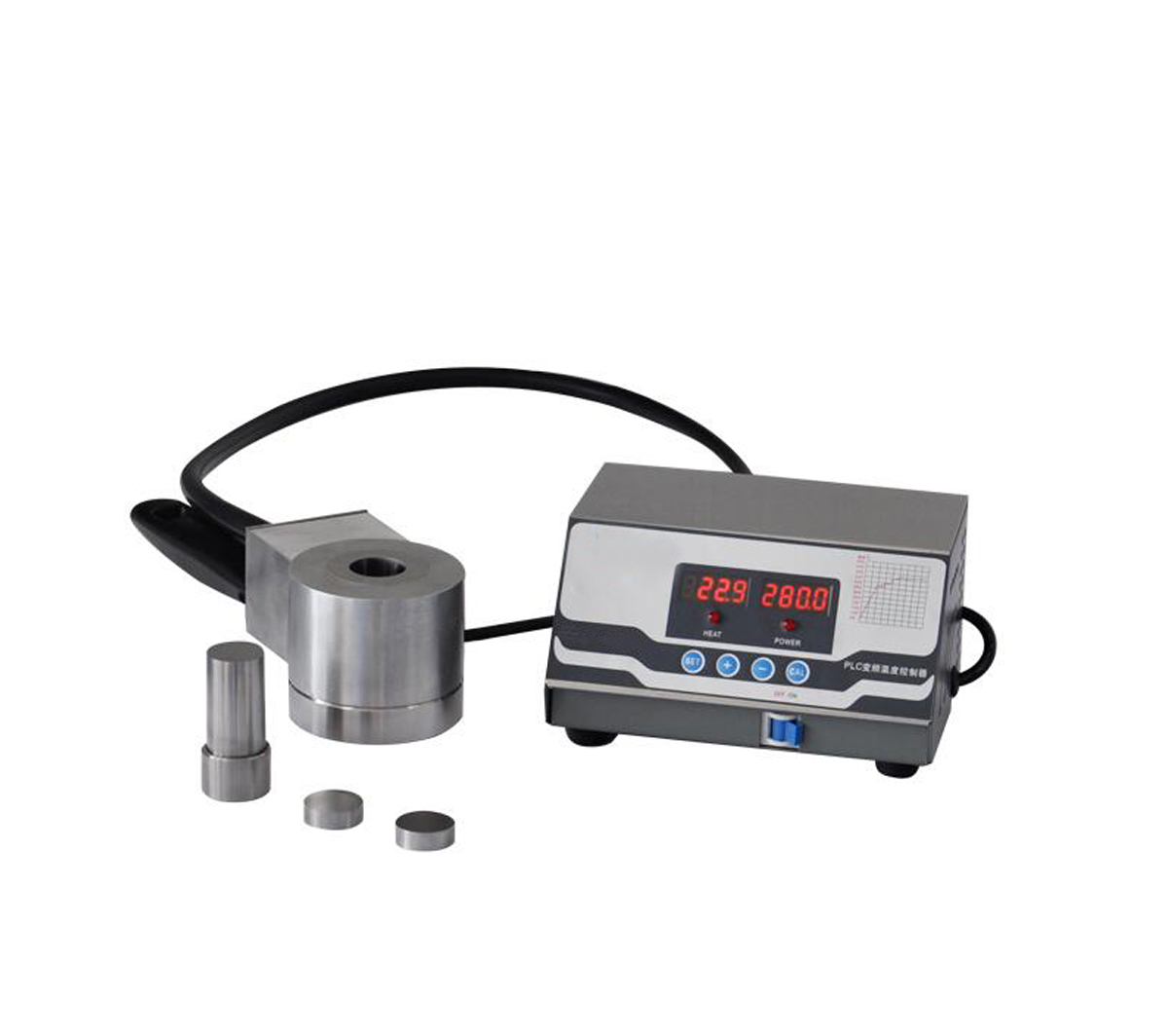

Mold Heating temper

Rm~300℃

Temperature accuracy

0.1℃

heat insulating modes

Imported heat insulating plate

Mold chamber

Inner hole< 20mm

Cooling method

Fast water cooling

Pressure stability

≤1Mpa/10min

Outer dimension

800*470*415mm

Gross weight

48kg

1T

1.41MPa

2T

2.82MPa

3T

4.23MPa

5T

7.06MPa

8T

11.3MPa

10T

14.1MPa

15T

21.2MPa

20T

28.3MPa

24T

34MPa
