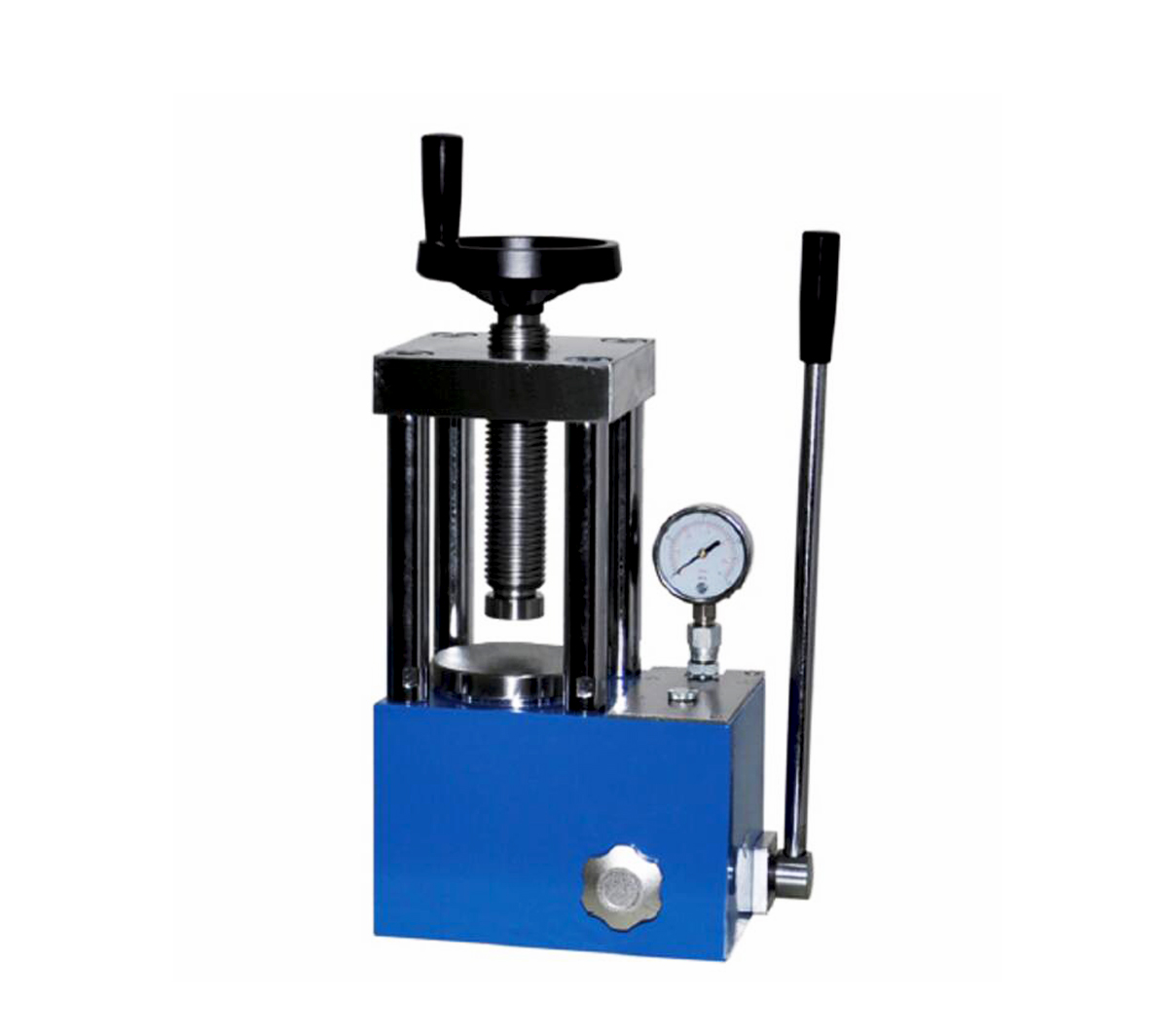

30T Tabletop Manual Powder Hydraulic Press CY-PC-30

30T Tabletop Manual Powder Hydraulic Press CY-PC-30

    The 30T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc with maximum 30 Ton pressing. It has a compact structure will all in one structure to protective from oil link.


Model No.

PC-30

Pressure gauge

0~30T (0~31.5MPa)

Piston diameter

Φ110mm

Main structure

All in one structure, no oil link point

Pressure gauge

pointer pressure gauge, can replace digital gauge

Max piston distance

40mm

Pressure stability

≤1MPa/10min

Working stage

Φ120mm

Working space

92*160mm

Outer dimension

275*195*420mm

Gross Weight

56kg

30T hydraulic press pressure conversion

Real Pressure

System Pressure

1T

1.05MPa

3T

3.1MPa

5T

5.2MPa

8T

8.4MPa

10T

10.5MPa

15T

15.7MPa

20T

21MPa

25T

26.3MPa

30T

31.5MPa
