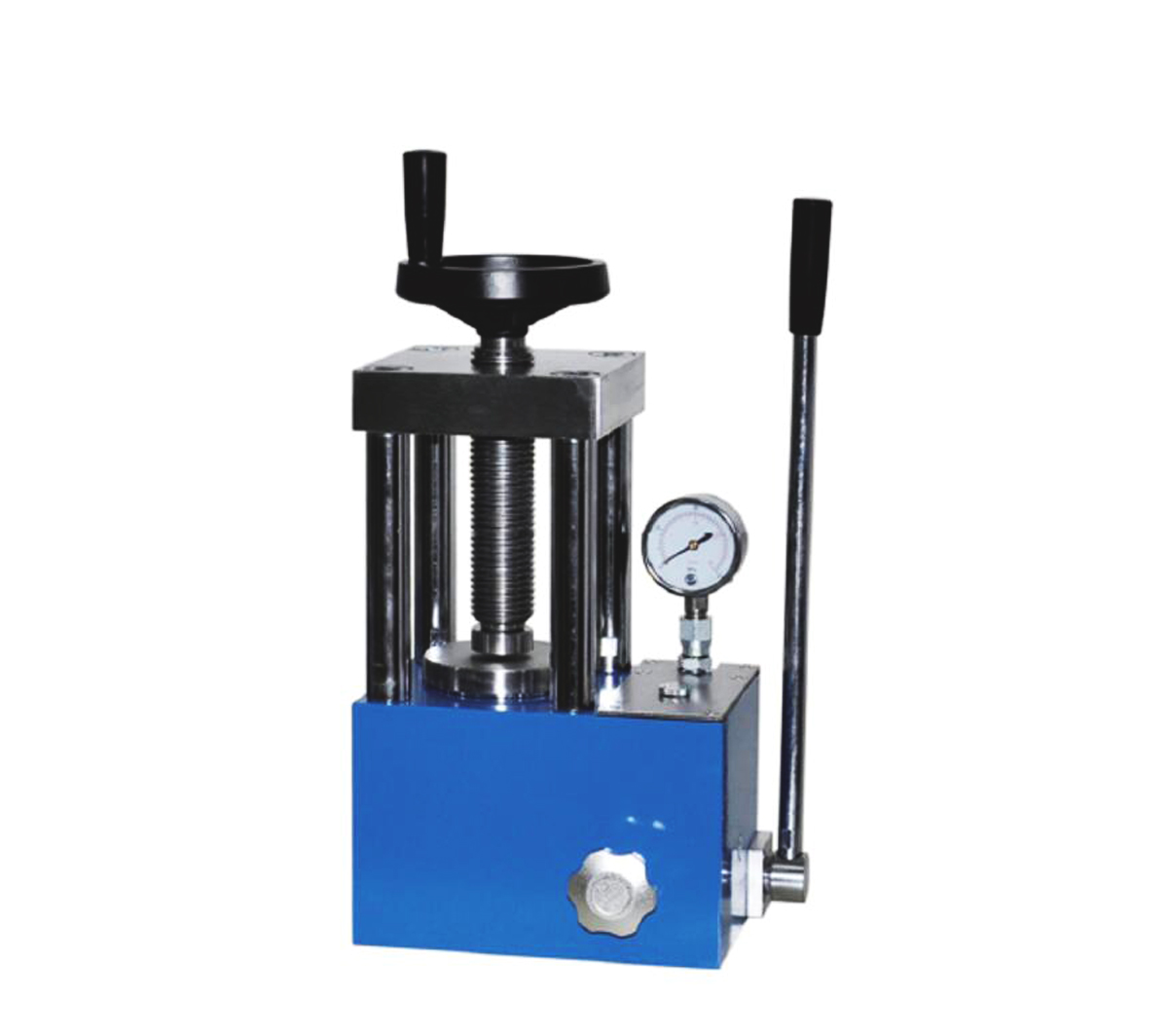

15T Compact Manual Operate Hydraulic Press CY-PC-15

15T Compact Manual Operate Hydraulic Press CY-PC-15

    The 15T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc with maximum 15 ton press. It has a compact structure will all in one structure to protective from oil link.

Model No.

PC-15

Pressure gauge

0~15T (0~30MPa)

Piston diameter

Φ80mm

Main structure

All in one structure, no oil link point

Pressure gauge

pointer pressure gauge, can replace digital gauge

Max piston distance

30mm

Pressure stability

≤1MPa/10min

Working stage

Φ90mm

Working space

80*130mm

Outer dimension

245*175*390mm

Gross Weight

40kg

15T Pressure conversion

Real Pressure

System Pressure

1T

2MPa

2T

4MPa

3T

6MPa

4T

8MPa

5T

10MPa

6T

12MPa

9T

18MPa

12T

24MPa

15T

30MPa
