24T manual powder hydraulic press CY-PC-24

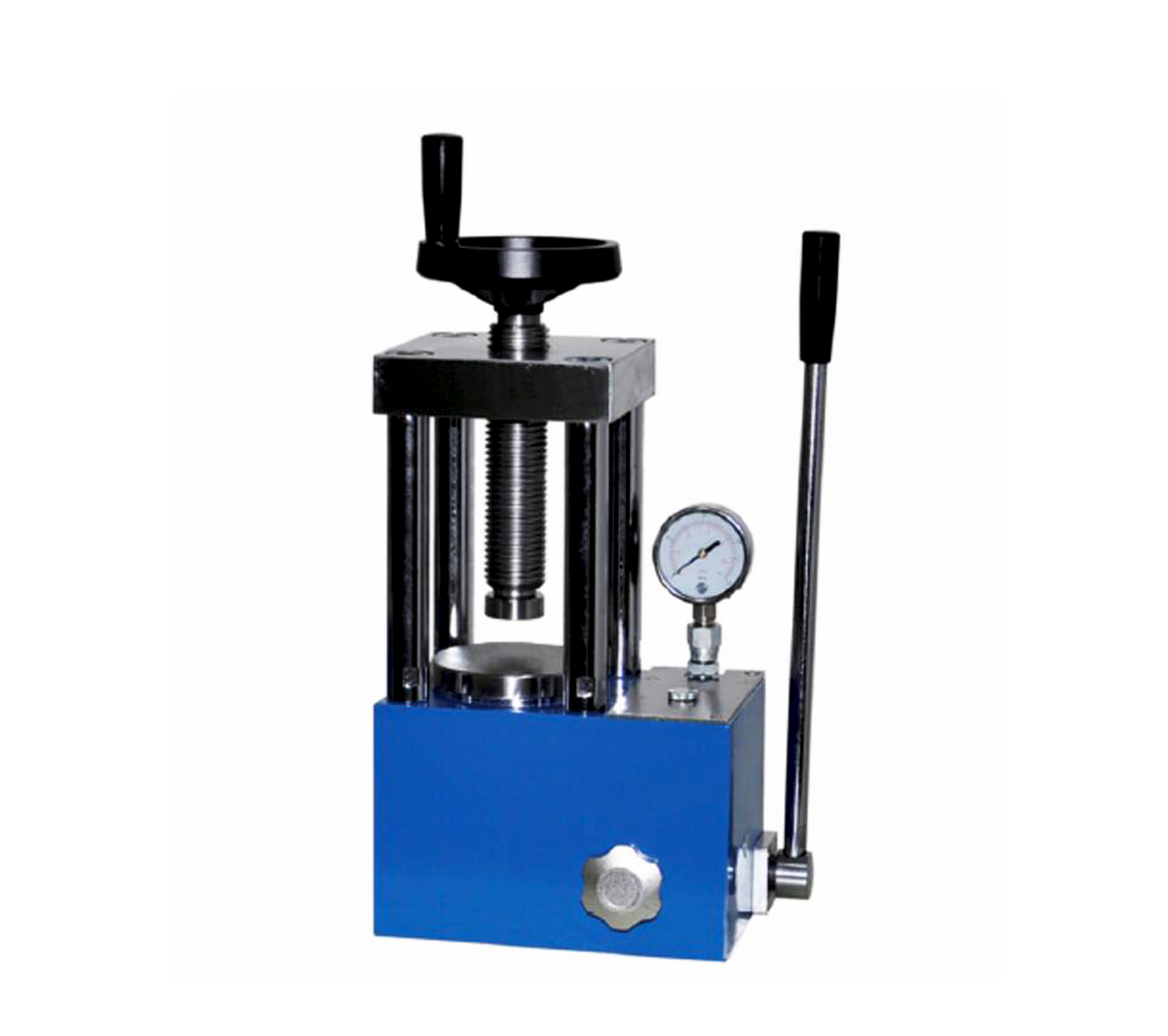

24T manual powder hydraulic press CY-PC-24

    The 24T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc with maximum 24 Ton pressing. It has a compact structure will all in one structure to protective from oil link

Model No.

PC-24

Pressure gauge

0~24T (0~34MPa)

Piston diameter

Φ95mm

Main structure

All in one structure, no oil link point

Pressure gauge

pointer pressure gauge, can replace digital gauge

Max piston distance

30mm

Pressure stability

≤1MPa/10min

Working stage

Φ105mm

Working space

80*150mm

Outer dimension

245*175*415mm

Gross Weight

42kg

24T hydraulic press pressure conversion

Real Pressure

System Pressure

1T

1.41MPa

2T

2.82MPa

3T

4.23MPa

5T

7.06MPa

8T

11.3MPa

10T

14.1MPa

15T

21.2MPa

20T

28.3MPa

24T

34MPa
