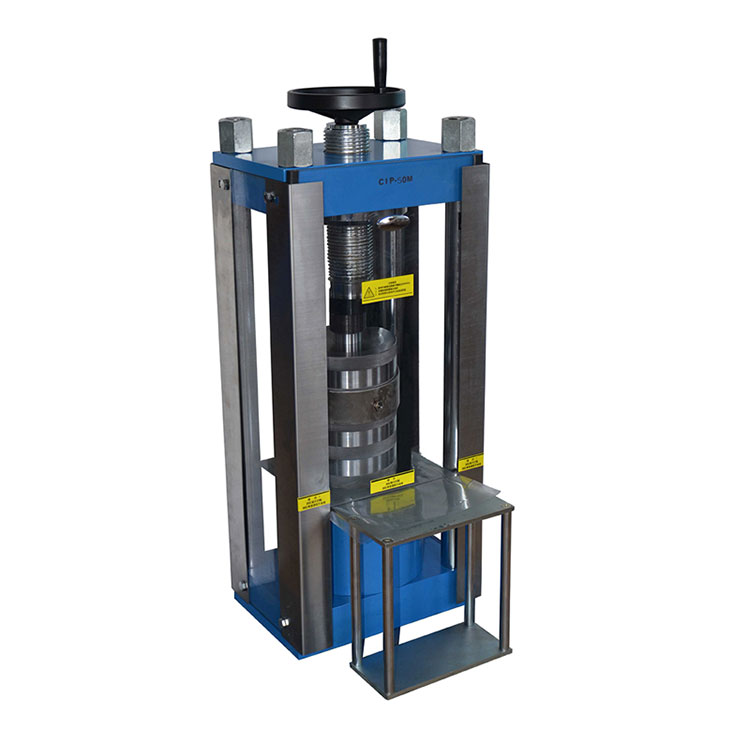

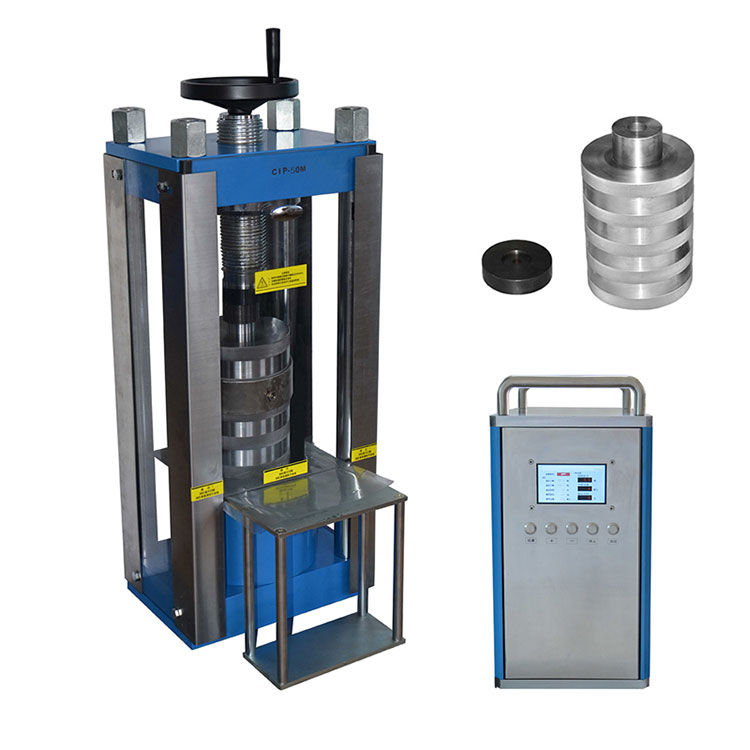

The CY-500CIP-50MAF ultra-high pressure cold isostatic press is to place the sample product in a closed container filled with liquid. After the power is applied, the pressure applied by the liquid on each surface of the sample is equal. In a high-pressure environment, the density of the sample product becomes large, the gap of the sample particles becomes smaller and the desired shape is obtained. With the advancement of science and technology and our in-depth study of powder materials, isostatic presses are increasingly used in the molding of powder metallurgy, composite materials, refractory materials, ceramics, and hard alloys. The CY-500CIP-50MAF ultra-high pressure cold isostatic press is designed for the material research department of colleges and universities and scientific research institutes that need small pieces of analytical samples. It has the characteristics of small size, reliable operation and simple operation.
Technical parameters of ultra-high pressure cold isostatic press:
Product name | CY-500CIP-50MAF ultra high pressure cold isostatic press |

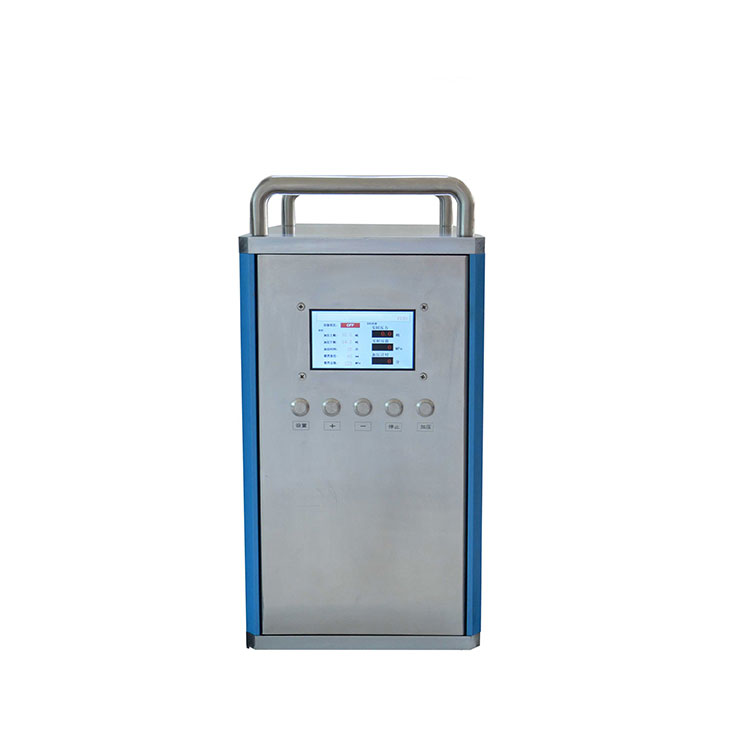

Main feature | The machine adopts LCD display, automatic control of pressurization process, program pressurization - program pressure maintenance - timing pressure relief; Input mold cavity diameter program to automatically convert the pressure of the sample. |
Technical parameters | 1. Pressure range of electric press: 0-110T 2. power supply: 220V 50Hz 3. power: 1.5KW 4. Pressure holding time: 0-999 minutes 5. pressure range: 0-110T 6. Piston diameter: chrome-plated cylinder φ200mm 7. pressure gauge: display screen 8. the maximum piston stroke: 50mm(T) 9. the pressure compensation mode: automatic pressurization 10. Protective cover: plexiglass 11. Mold cavity: φ50*120mm (when the total height is 350) 12. Mold pressure: 500MPa |
Product specifications | 1. Space size: 260×400 (M×N) 2. Dimensions: 850 × 500 × 1100 (L × W × H) |
