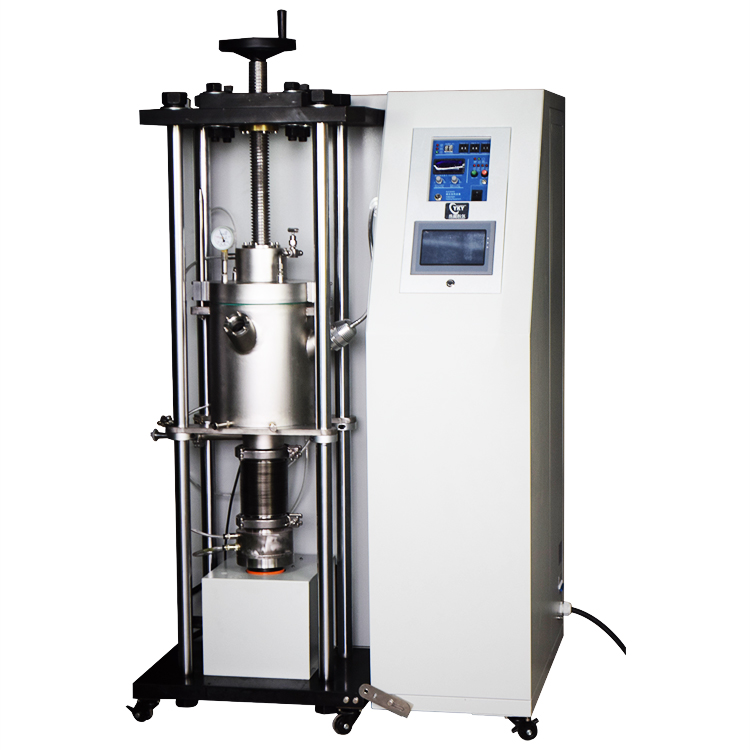

Lab Vacuum Rapid Heated Pressing Furnace up to 1600℃

Max. Pressure

5 metric tons (10 MPa on pressure gauge).

Hydraulic Electrical Presser

• Piston diameter: 60 mm.

• Vertical move distance: 35 mm.

• Automatic pressure controller

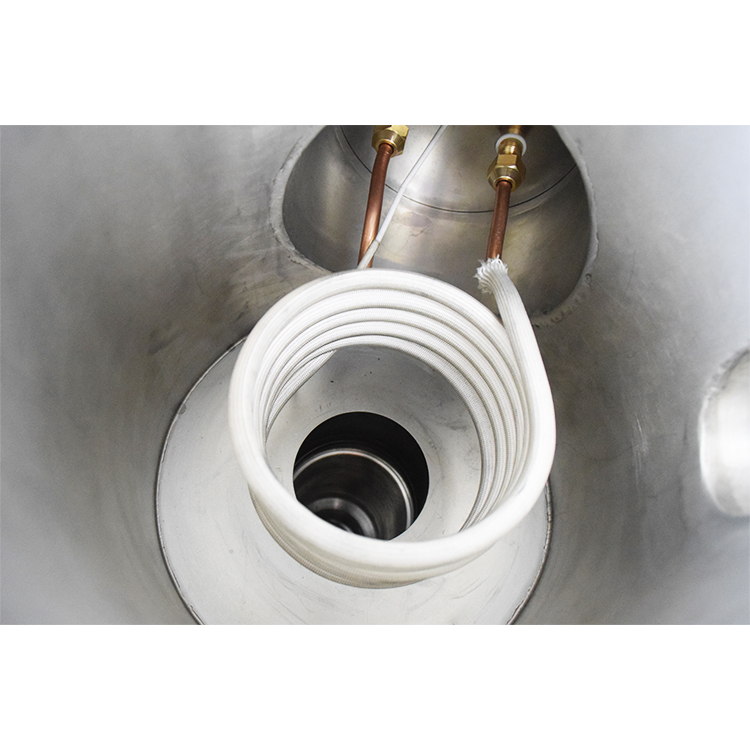

Induction Heater

• Working voltage: 208 - 240 VAC, 50/60 Hz, three phase (380V three phase available upon request)

• Working current: 40 A (with a 60 A breaker).

• Maximum input power: 15 kW.

• Output frequency: 30 ~ 80 kHz.

• Duty cycle: 80%.

• Max. Working Temperature :  1600 ℃ max duration time: < 30 min.

• Ultimate Temperature: 1700 ℃ <1 min. (This might cause damage of thermocouple)

• Air cooling: fan.

• Protection: water pressure monitoring, high-temperature protection, and overpower protection.

Temp. Controller

• Working voltage: 208 ~ 240 VAC, single phase.

• Precision digital temperature controller with automatic PID tuning.

• Temperature profile that contains maximum 30 programmable segments to control heating, dwelling, and cooling.

• Overheating and thermocouple failure protection.

• Temperature accuracy: ± 3℃.

• B-type thermocouple.

• Continuous working temperature range: 1000 ~1600℃.

• lower temperature range (300 - 600℃) is available upoon request.

• Maximum heating rate in vacuum (only for 0.5" inner diameter graphite pressing die; without any thermal block):

• 4 ℃/s ( 4 mins 50 seconds from room temperature to 1200℃)

• 2℃/s ( 5min 40 seconds from 1200 to 1300℃)

• 1.5℃/s ( 6min 46 seconds from 1300 to 1400℃)

• 1.2℃/s ( 8mins 10 seconds from 1400 to 1500℃)

• 1℃/s ( 9mins 50 seconds from 1500 to 1600℃)

• Experimental cooling rate in vacuum:

• 3.5℃/s (~ 2 mins 20 seconds from 1600 to 1200℃)

• 1.1℃/s (~ 8 mins 10 seconds from 1200 to 800℃)

• 0.4℃/s (~ 21 mins 25 seconds from 800 to 500℃)

• 0.16℃/s (~ 37 mins 15 seconds from 500 to 350℃)

• 0.06℃/s (~ 104 mins 20 seconds from 350 to 150℃)

 Processing chamber & Sealing Flange

• Stainless steel vacuum sealed chamber: 260 × 230 × 320 mm (OD × ID × L).

• Flanges on both ends of the chamber. Flanges have a tunnel for cooling water.

• Equipped with a KF-25D vacuum port, pressure gauge, 1/4" gas inlet port with the stainless steel needle valve.

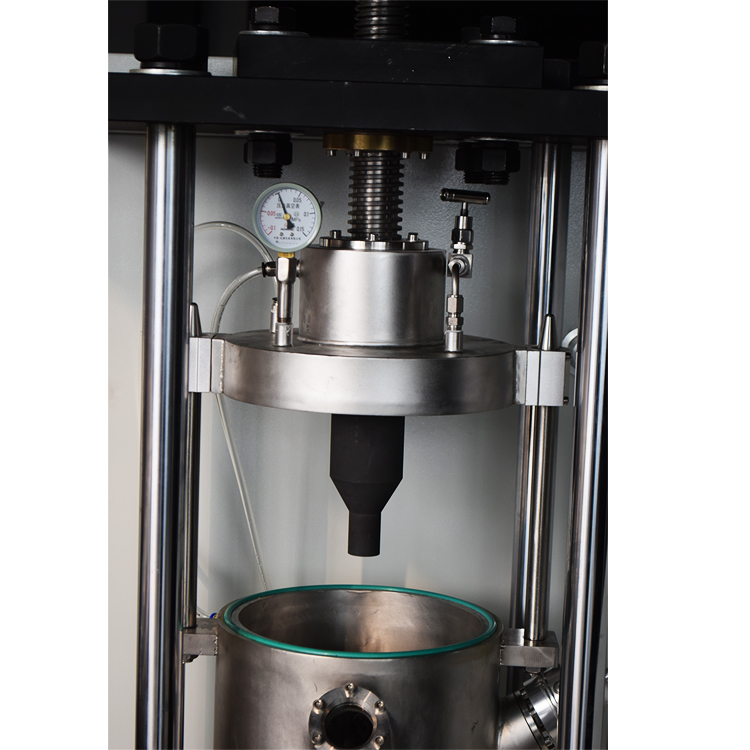

• The upper flange can be lifted by raising the lead screw which provides the easy access to retrieve the graphite die.

• Requires at least 55 liters per minute water flow.

Digital Pressure Gauge

Maximum pressure display is up to 10 MPa.

High-Temperature Graphite Pressing Die Set

• Two built-in graphite supporting rods with Max pressure 50 Mpa

• One set of 0.5" (inner diameter) graphite die are included for immediate use.

• Made of high purity graphite by HIP processing,  Max. Load from the hydraulic press is dependent on die 's ID

• 0.5"ID   Max.  0.5T

• 1.0 ID:   Max.  3T

 Dimensions

800 × 800 × 1300 mm (L × W ×   H).

 Net Weight

350 kg.

 Application Notes

Attention: the gas cylinder must have a two-stage pressure regulator to limit the pressure below 3 psi for safe operation.

Warranty

One year limited standard warranty
