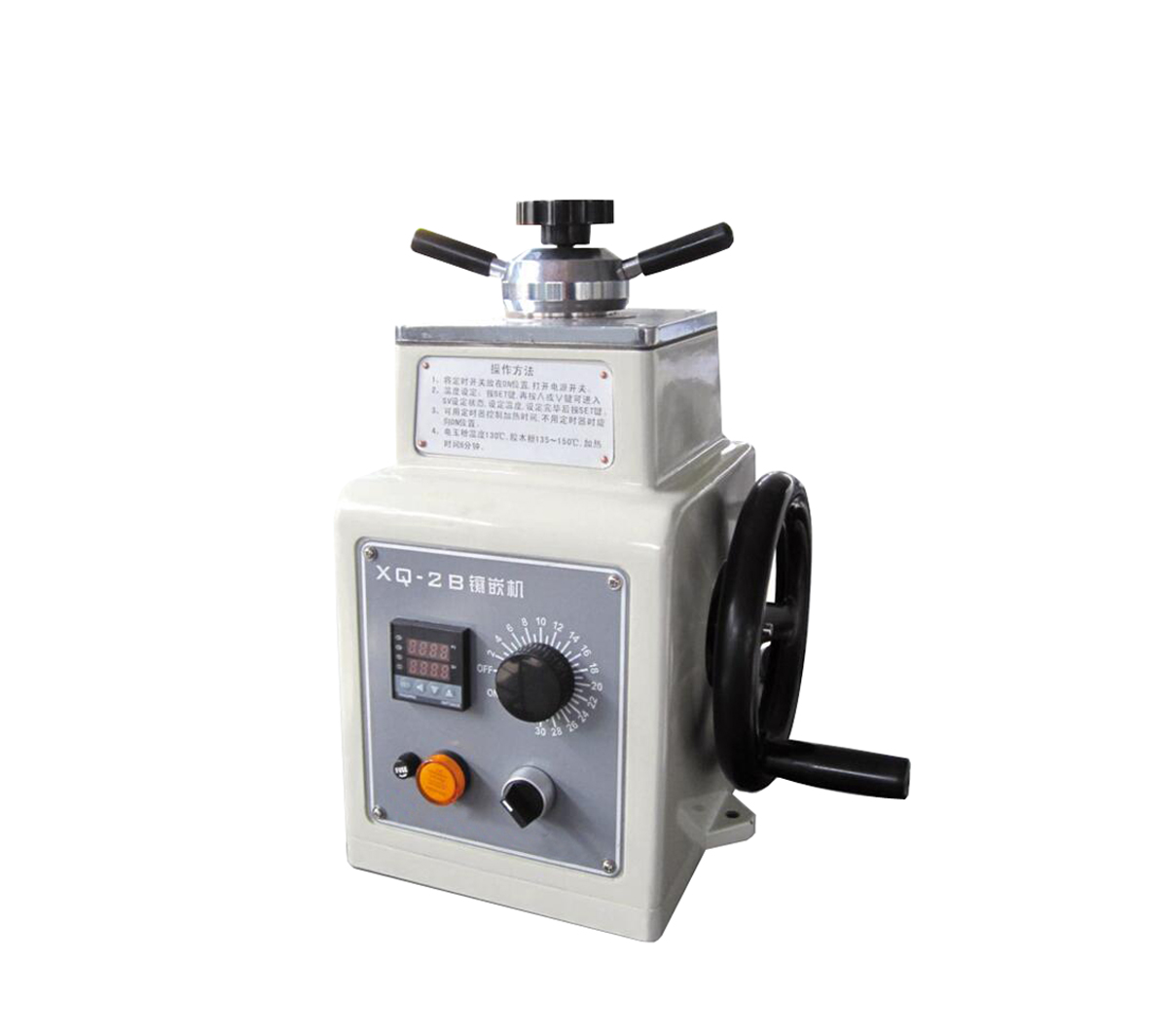

Laboratory Mounting Press for Metallographic Samples CY-XQ-2B

Laboratory Mounting Press for Metallographic Samples CY-XQ-2B

    CY-XQ-2B automatic mounting press is used to encapsulate samples for metallographic preparation. One mount can be produced at one time by using the mold spacer at 22 mm diameter. One cycle time is up to 30 minutes.

Model No.

CY-XQ-2B

Working voltage

AC220V, 50Hz

Power

650W

Press mold diameter

Φ22/30/45mm

Temperature range

0~190℃

Timing set

0~30min

System control

Digital control,automatic control

Dimension

400*290*400mm

Gross weight

33Kg
