Small 5T oil-free electric press for Ar gas glove-box

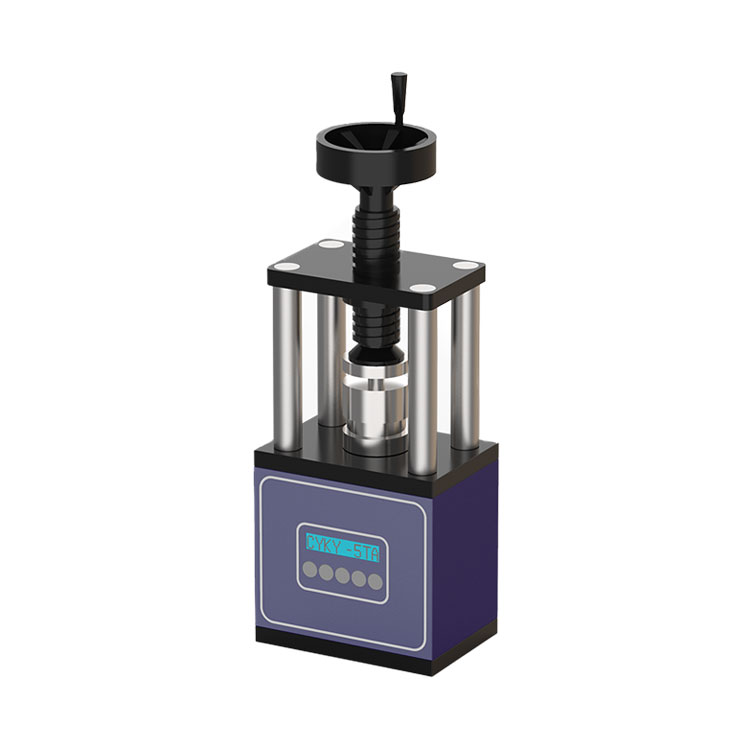

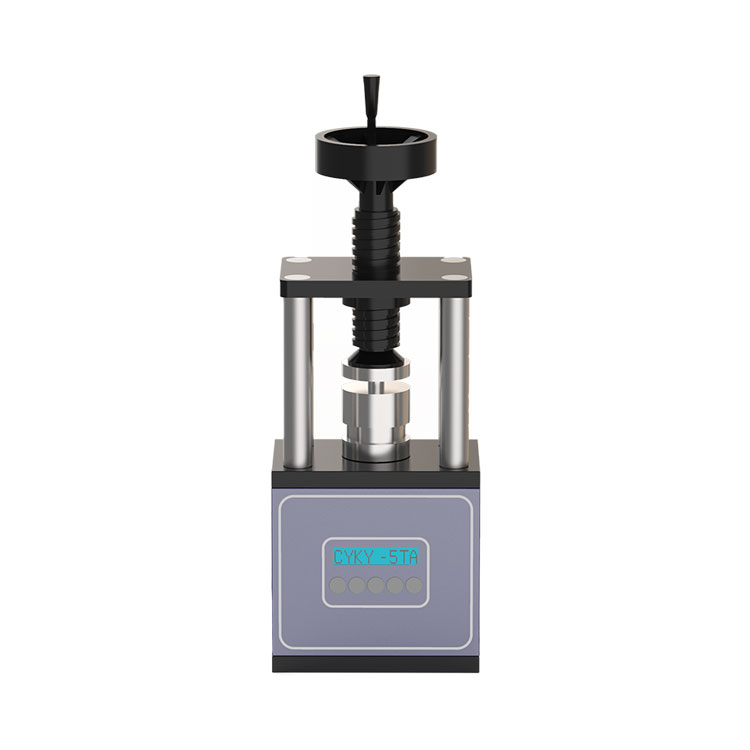

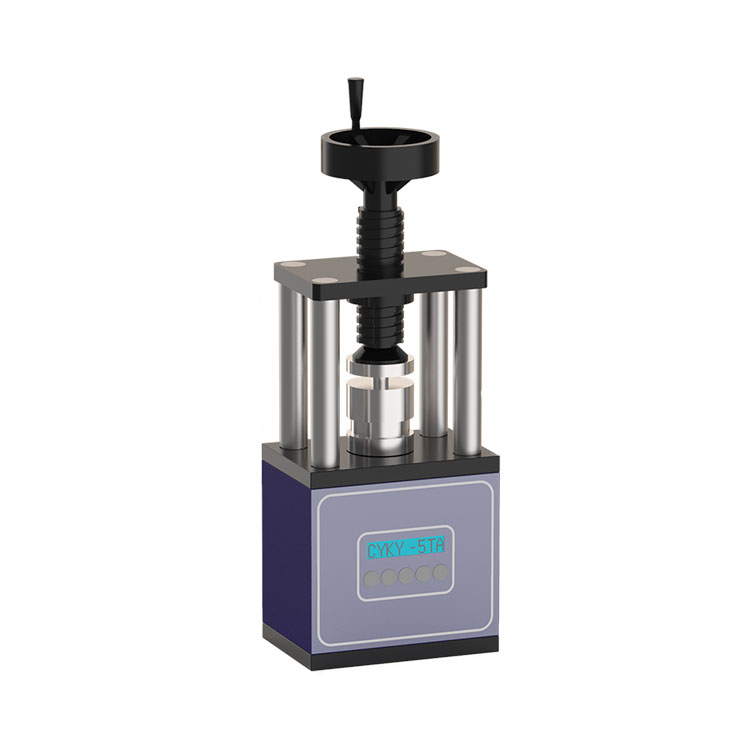

    CYKY-5TA is a small oil-free electric press specially designed for use in glove boxes. It can press some oxygen-sensitive materials and the maximum pressure is 50000N.

CYKY-5TA is a small oil-free electric press specially designed for use in glove boxes. It can press some oxygen-sensitive materials and the maximum pressure is 50000N. Therefore, the press is driven by a DC24V motor and can be used in a glove box protected by an argon atmosphere. It also completely solves the problem of oil leakage in the glove box of the traditional hydraulic press.

Technical parameters of oil-free electric press:

Working voltage

The host input voltage is 24VDC

Equipped with 110-240V AC to 24VDC power adapter.

Adapter power: 90W

Pressure drive

adopts DC 24V DC reduction motor drive

Motor power: 75W, reduction ratio: 1:20

Pressure control

Pressure display range: 10-50000N

Pressure control range: 1000-50000N (adjustable)

Constant pressure accuracy: ±50 N

Working space

150mm(L) x 100mm(W) x 120mm(H) (adjustable height)

According to different sample sizes, different sizes of pads can be configured

Press stroke

35 mm

Instrument size

240mm(L) x 165mm(W) x 560mm(H)

Instrument weight

About 35kg
