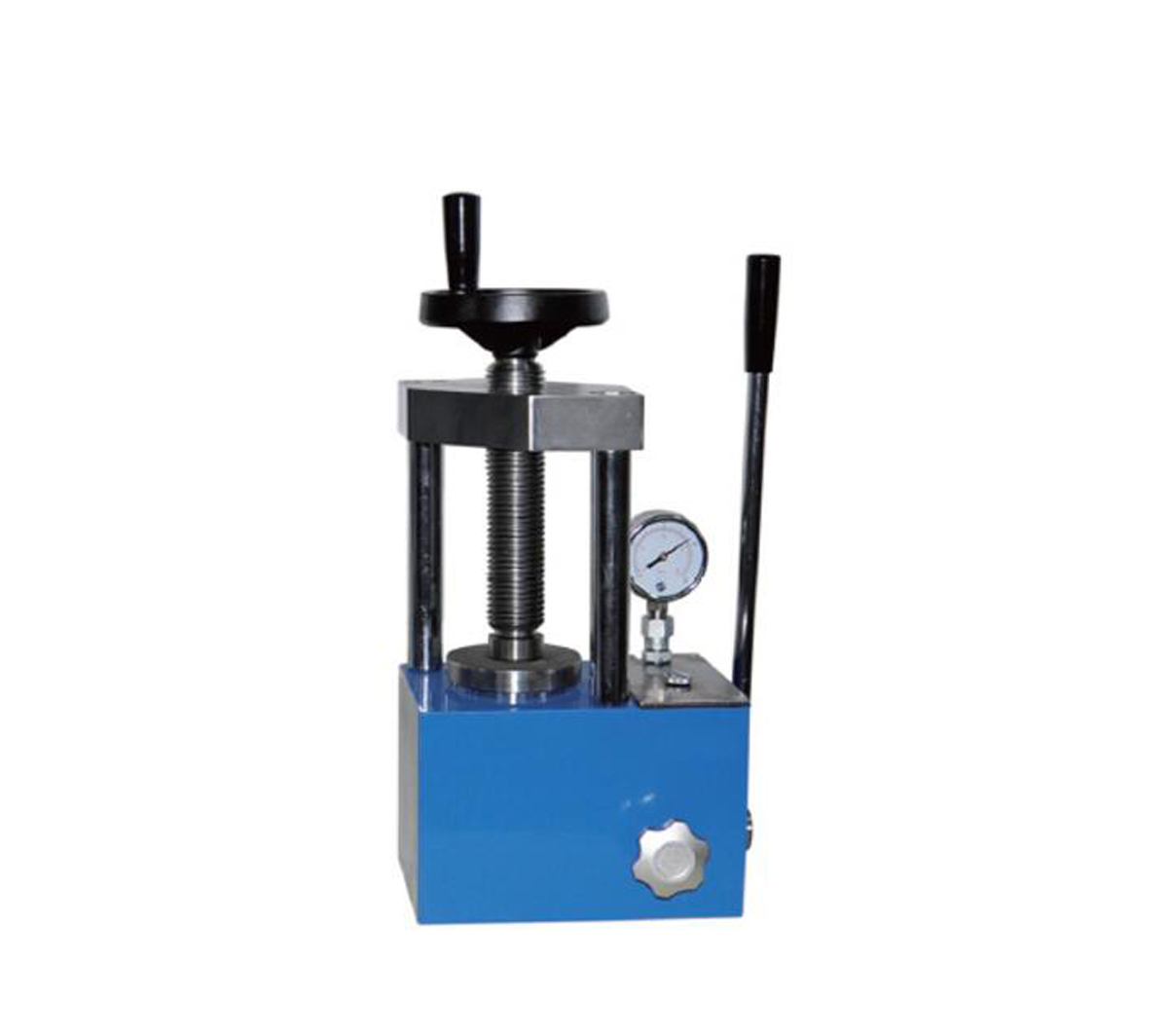

Laboratory compact 5 Tons hydraulic press

Laboratory compact 5 Tons hydraulic press

    The 5T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc. It has a compact structure will all in one structure to protective from oil link.

Model No.PC-5
Pressure gauge0~5T (0~31.4MPa)
Piston diameterΦ45mm
Main structureAll in one structure, no oil link point
Pressure gaugepointer pressure gauge
Max piston distance30mm
Pressure stability≤1MPa/10min
Working stageΦ80mm
Working space96*130mm
Outer dimension225*155*380mm
Gross Weight28kg

Pressure conversion

Real PressureSystem Pressure
0.2T1.25MPa
0.4T2.51MPa
0.6T3.77MPa
0.8T5.03MPa
1T6.28MPa
2T12.5MPa
3T18.8MPa
4T25.1MPa
5T31.4MPa
