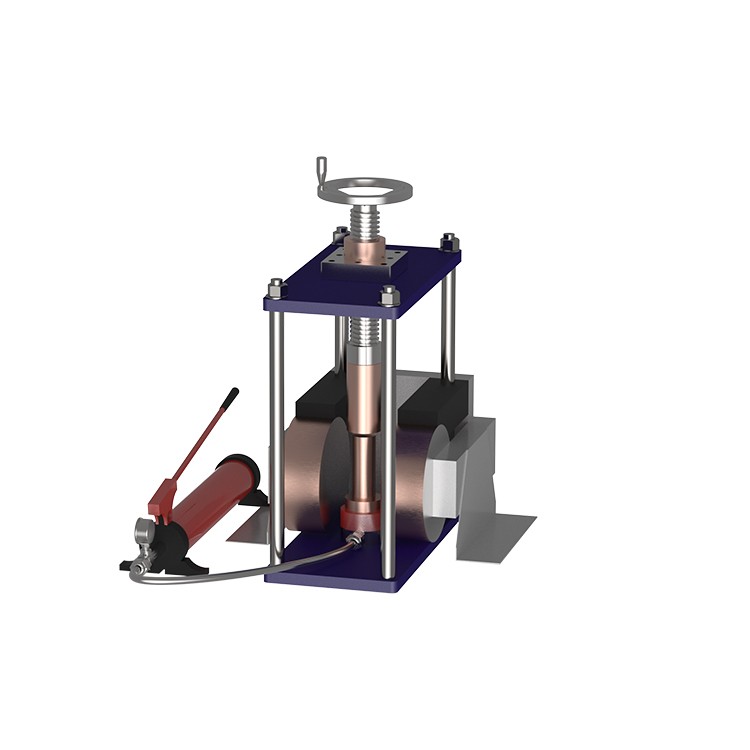

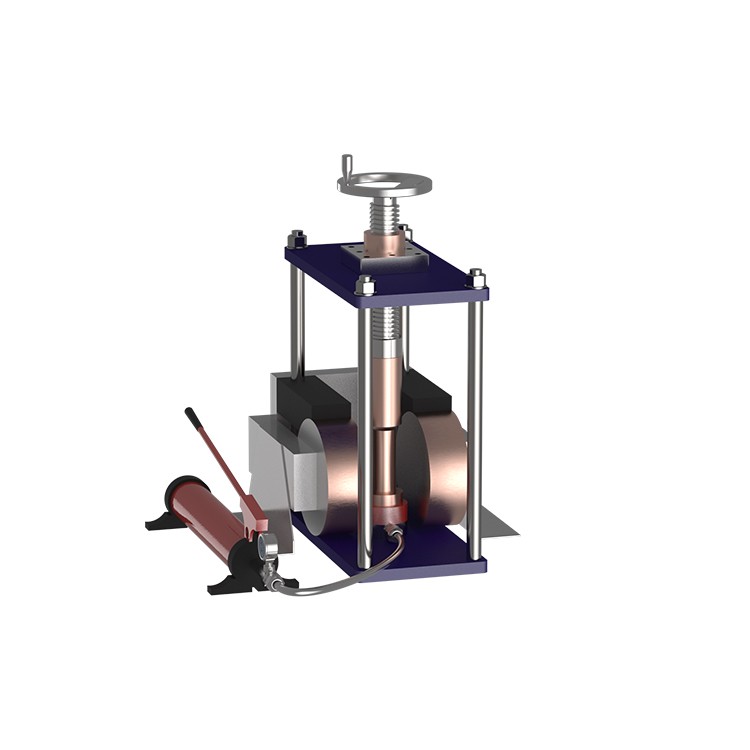

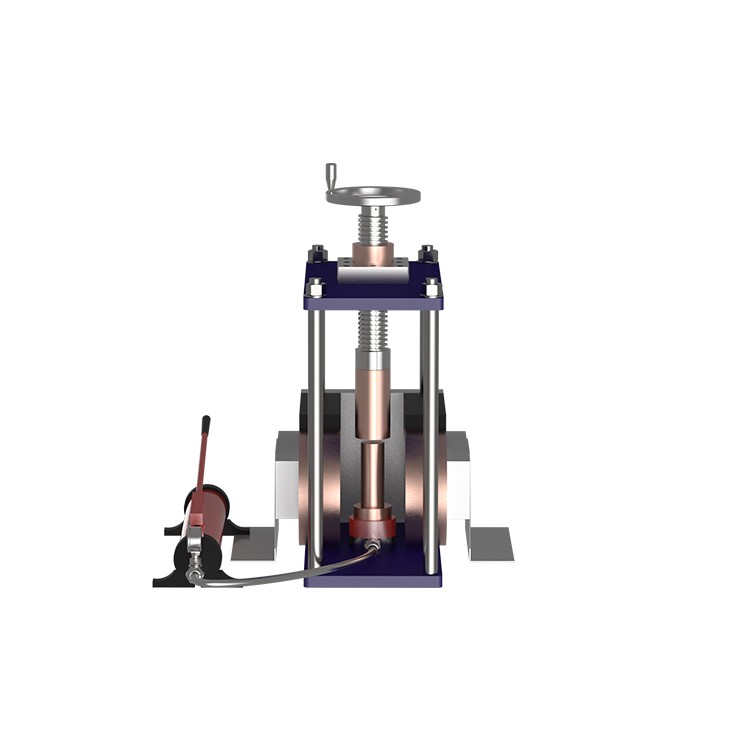

5T Lab Press for Pellet Pressing Under Magnetic Field

Max. Pressure

• 5 Metric Ton

• The pressure gauge is a built-in manual hydraulic pump

Gauge Pressure Value to Force Conversion

• Displayed pressure value to actual applied force conversion: 1 MPa = ~ 0.09 Ton

• The actual  force applied to the vessel cylinder (Ton) equal to the force applied to your working piece

• For calculating the actual pressure (Mpa) applied to your working piece, please follow the equations below:

• P = T x g x 10/ (πr^2)

• P: pressure (Mpa) applied to your working piece

• T: force (metric ton) applied to the pressure vessel cylinder

• g: standard gravity. g ≈ 9.8 m/s2

• π: ~3.14

• r: radius (cm) of the pressure vessel (1.5 cm)

• *1000 Kg = 1 Metric Ton; 1 Mpa = 10 Kg/cm2

Hydraulic Pump & Cylinder

• 5T Max.

• The pump is separated from the cylinder for safe operation

• Cylinder diameter: φ30 mm

Operation Temperature

• 10 - 40℃

Bottom Cylinder Traveling Distance

•   0-8 mm. The bottom cylinder (piston)

 Max. Working Space

•   30mm Dia. x 120mm

Overall Dimension

• Outer dimension: 450mm L x 230mm W x 560mm H

• Inner dimension: 381mm L x 164mm W x 400mm H

• Customized width and height of the press frame are available upon request.

Pressing Die

• One set of SS316L 1/2" (12.7mm) ID drying pressing die is included

• The customized die is available upon request

• Note: please never use hardening tool steel die under the magnetic field

 Pushing Rod

• Two pushing rod (top and bottom) is made of brass

• diameter 30 mm

Electromagnetic Operation (Optional)

• Max. inner dimension for the electromagnetic machine: 390mmH x 340mm D x 600mm W, which can insert < 350mm electric magnetic head inside the frame.

• CYKY does not provide electric magnet but can help you to choose or purchasing.

 Option

• 10T press with top pushing cylinder is available upon request at the extra cost

Net Weight

75 kg
