The ultra-high pressure cold isostatic press is to place the sample product in a closed container filled with liquid. After the power is applied, the pressure applied by the liquid on each surface of the sample is equal. In a high-pressure environment, the density of the sample product becomes large, the gap of the sample particles becomes smaller and the desired shape is obtained.
The CY-500CIP-30MAF ultra-high pressure cold isostatic press is to place the sample product in a closed container filled with liquid. After the power is applied, the pressure applied by the liquid on each surface of the sample is equal. In a high-pressure environment, the density of the sample product becomes large, the gap of the sample particles becomes smaller and the desired shape is obtained. With the advancement of science and technology and our in-depth study of powder materials, isostatic presses are increasingly used in the molding of powder metallurgy, composite materials, refractory materials, ceramics, and hard alloys. The CY-500CIP-30MAF ultra-high pressure cold isostatic press is designed for the material research department of colleges and universities and scientific research institutes that need small pieces of analytical samples. It has the characteristics of small size, reliable operation and simple operation.

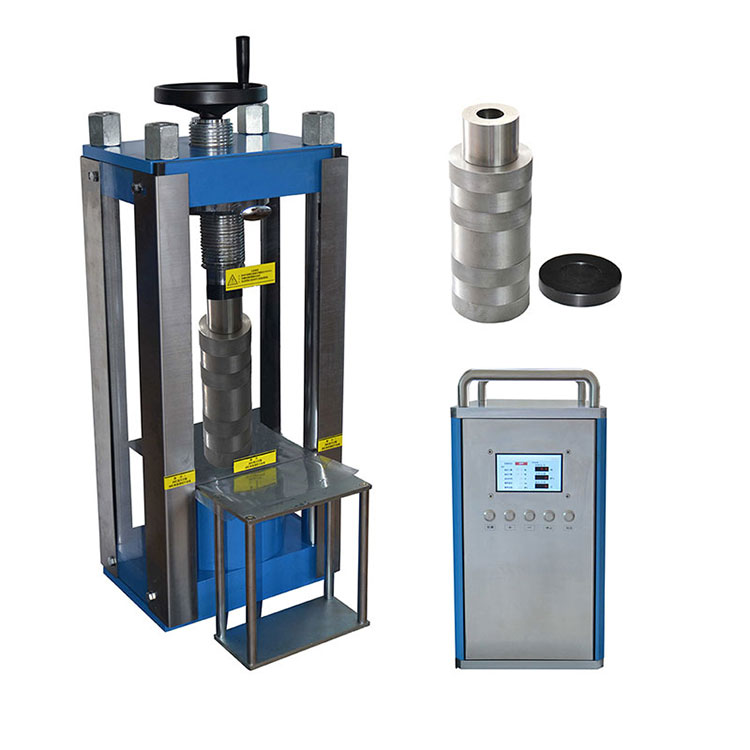

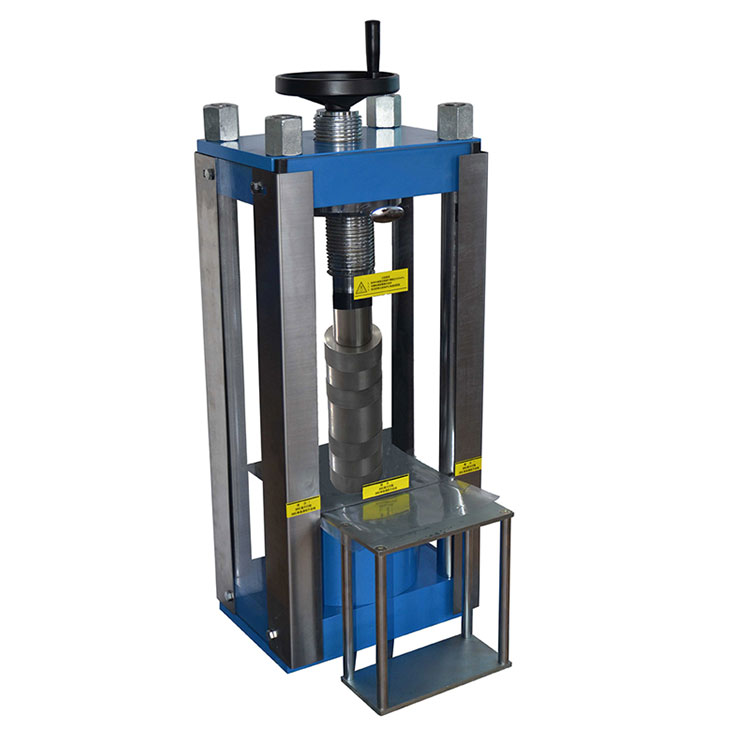

CY-500CIP-30MAF ultra high pressure cold isostatic press

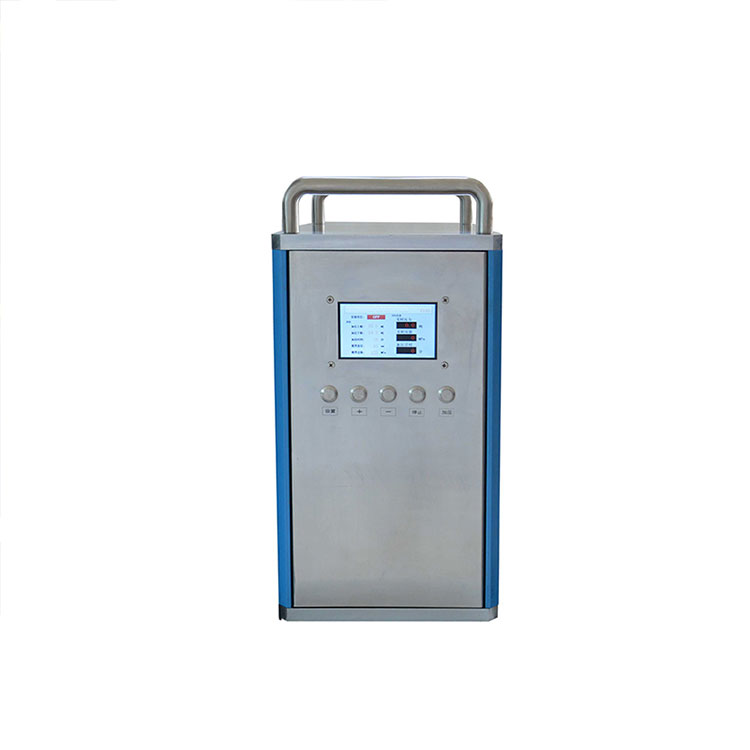

The machine adopts LCD display, automatic control of pressurization process, program pressurization - program pressure maintenance - timing pressure relief; Input mold cavity diameter program to automatically convert the pressure of the sample.
1. Pressure range of electric press: 0-40T
2. power supply: 220V 50Hz
3. power: 1.5KW
4. Pressure holding time: 0-999 minutes
5. Mold withstands maximum pressure: 500Mpa
6. pressure range: 0-40T
7. Piston diameter: chrome-plated cylinder φ130mm
8. pressure gauge: the number shows 0.0-40.0MPa
9. the maximum piston stroke: 50mm
10. the pressure compensation mode: automatic pressurization / manual pressurization
11. Protective cover: plexiglass
12. Ambient temperature: 10℃ -40℃

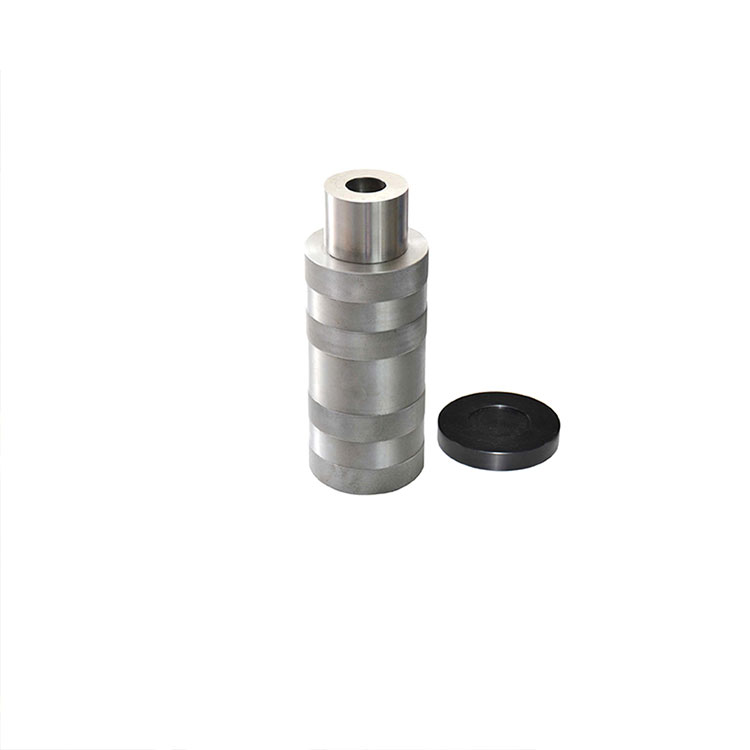

13. Mold cavity: φ30*137mm (when the total height is 302.5)
14. Mold pressure: 500MPa
1. Size of electric cold isostatic press: 272mm (length) ×560mm (height)
2. Weight of electric cold isostatic press: 205kg
