5T Cell Coin Sealing Machine for Cr20 serial coin CY-PC-5NS

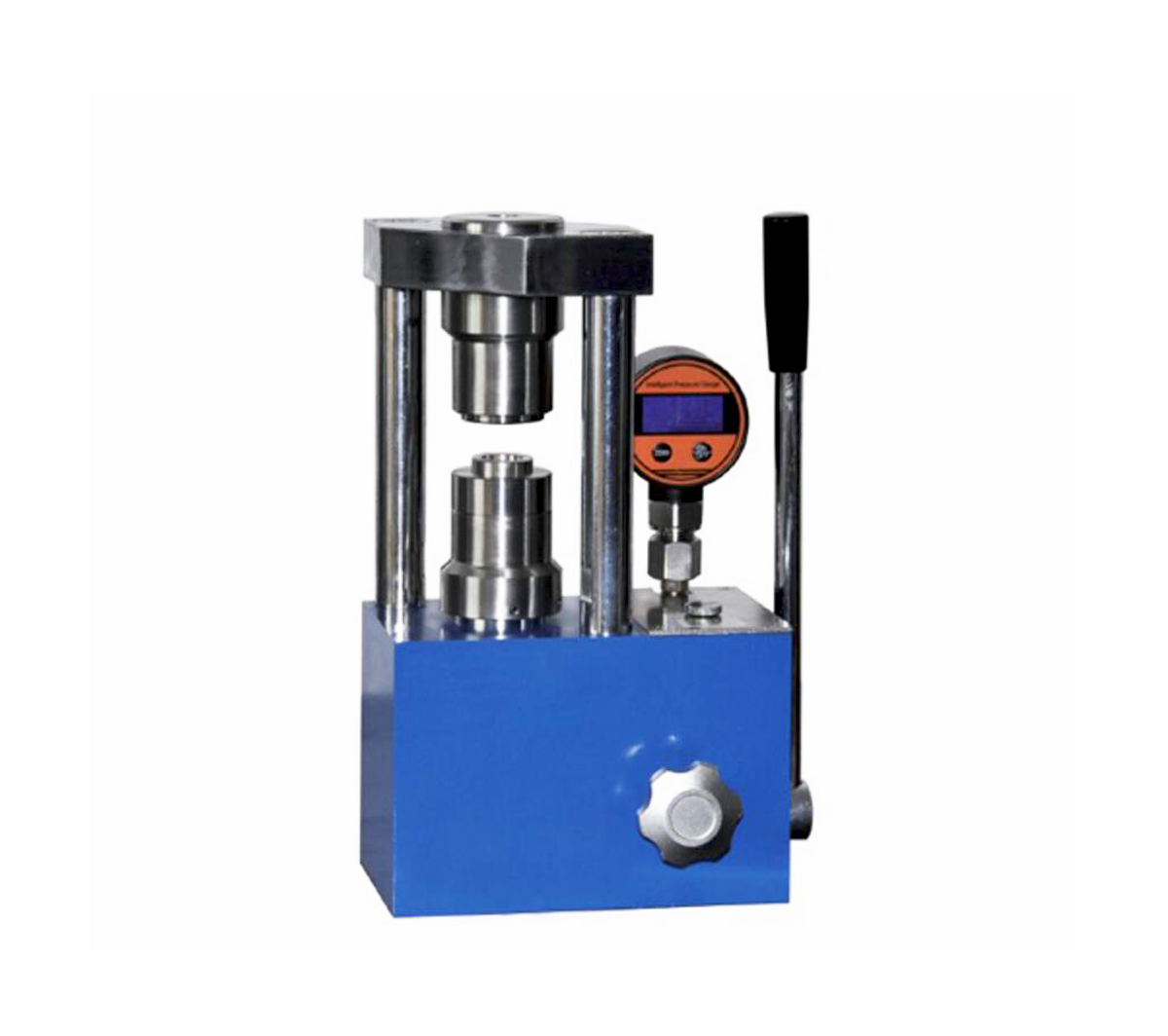

5T Cell Coin Sealing Machine for Cr20 serial coin CY-PC-5NS

    The 5T cell coin sealing machine is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis’s cell coin battery’s researching.It is used for Cr series coin.

Model No.

PC-5NS

Pressure gauge

0~5T (0~31MPa)

Piston diameter

Φ45mm

Main structure

All in one structure, no oil link point

Pressure gauge

Digital gauge 0.00~40.00MPa

Standard Sealing mold

CR20 sealing mold,CR16/20/24/30 optional

Sealing pressure

0.8~1.2T

Disassemble mold

CR16, CR20, CR24, CR30

Disassemble pressure

≤0.4

Outer dimension

225*155*320mm

Gross Weight

28kg

5T cell coin sealing machine pressure conversion

Real Pressure

System Pressure

0.2T

1.25MPa

0.4T

2.51MPa

0.6T

3.77MPa

0.8T

5.03MPa

1T

6.28MPa

2T

12.5MPa

3T

18.8MPa

4T

25.1MPa

5T

31.4MPa
