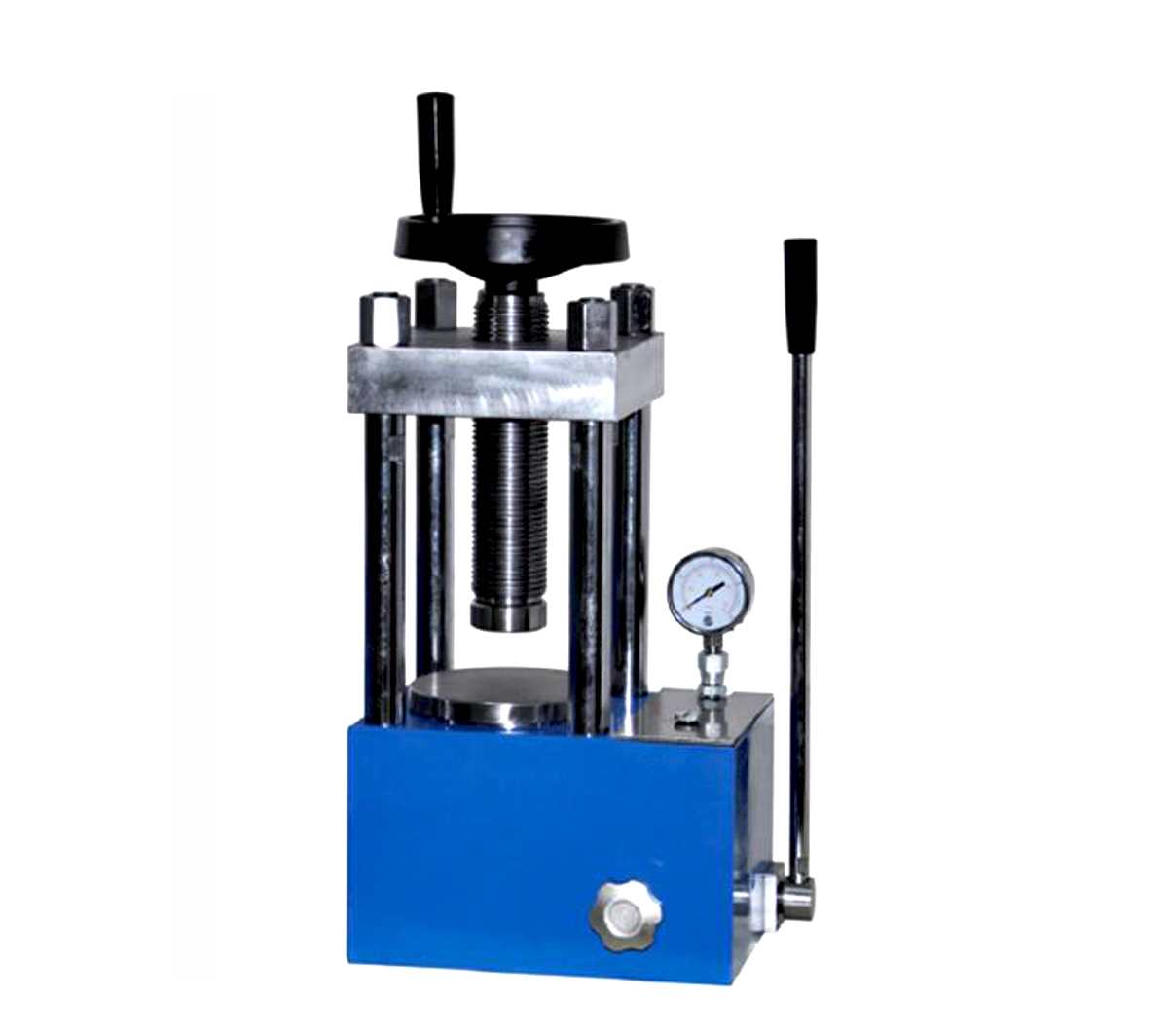

40T Manual Powder Hydraulic Press for laboratory CY-PC-40

40T Manual Powder Hydraulic Press for laboratory CY-PC-40

    The 40T hydraulic press is designed use for Scientific research, teaching, testing, pharmaceutical, catalysis, chemical industry, etc with maximum 40 Ton pressing. It has a compact structure will all in one structure to protective from oil link.

Model No.

PC-40

Pressure gauge

0~40T (0~30MPa)

Piston diameter

Φ130mm

Main structure

All in one structure, no oil link point

Pressure gauge

pointer pressure gauge, can replace digital gauge

Max piston distance

50mm

Pressure stability

≤1MPa/10min

Working stage

Φ140mm

Working space

115*185mm

Outer dimension

295*215*500mm

Gross Weight

75kg

40T hydraulic press pressure conversion

Real Pressure

System Pressure

1T

0.75MPa

3T

2.2MPa

5T

3.7MPa

10T

7.5MPa

12T

9MPa

15T

11.3MPa

20T

15MPa

30T

22.5MPa

40T

30MPa
