Precision Temperature Controlled Hi Vacuum Thermal Evaporating Coater

Precision Temperature Controlled Hi Vacuum Thermal Evaporating Coater

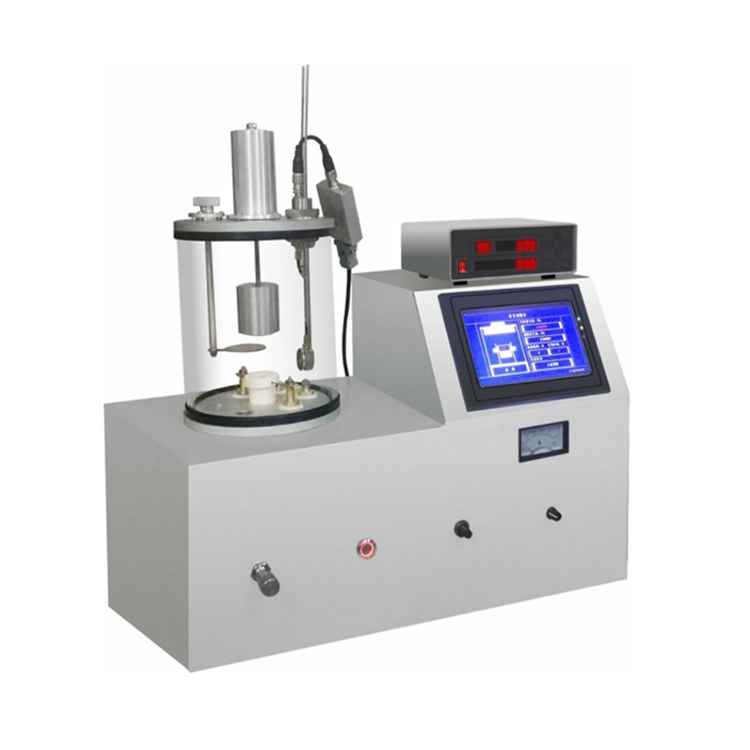

    This machine is a compact thermal evaporating coater with precision and programmable temperature control, which is suitable for coating most of metallic and organic materials film up to 2" size from 200℃ to 1500℃ (or 200℃ - 1700℃ with an optional B-type thermocouple). A rotatable sample holder is built in to allow uniform film coating.

Basic Info


  • Model NO.: CY-1700X-SPC-2

  • Coating: Vacuum Coating

  • Certification: CE, TUV

  • Heater: Alumina and Tungsten Heaters

  • Vacuum Port: Kf40

  • Warranty: One Year

  • Transport Package: Wooden Box

  • Origin: Zhengzhou, China

  • Type: Coating Spray Gun

  • Substrate: Aluminum

  • Condition: New

  • Specimen Holder: Dia.50mm

  • Gas Inlet: 1/4 Nps

  • Trademark: CY

  • Specification: Quartz chamber OD. 150mm

  • HS Code: 85141090


Product Description


Precision Temperature Controlled Hi-Vacuum Thermal Evaporating Coater - CY-1700X-SPC-2
Introduction

This machine is a compact thermal evaporating coater with precision and programmable temperature control, which is suitable for coating most of metallic and organic materials film up to 2" size from 200℃ to 1500℃ (or 200℃ - 1700℃ with an optional B-type thermocouple). A rotatable sample holder is built in to allow uniform film coating.


Specification

Structure & Features

6"OD Quartz chamber for easy cleaning and sample loading
2" Dia rotable sample holder for uniform film coating
Two heaters are included, e.g. Alumina and Tungsten heaters for both low or high temperature coating upto 1700ºC
Precision temperature control with 30 segment programmable and +/- 1C accuracy
High vacuum can be achieved upto 10E-5 torr via optional turbo pump
Gas flow port and valve are built in for CVD possibility
Input PowerInput Voltage:  AC 208 - 220V 50/60Hz , single phase, 50/60Hz
500 W with max. 30A current
Power cable included without plug
Temperature Control

Heaters

Tungsten Heater with a thermal couple is built in bottom of alumina crucible for temperature controlled (PIC.
Standard S type Thermal Couple:   --   heating from 200ºC - 1500ºC
Optional B type  Thermal Couple - heating from 1200ºC - 1700ºC
One digital temperature controller with 30 segment programmable and +/- 1ºC accuracy
Temperature also can be switched to manual mode without thermalcouple and thermal installation for faster coating upto 2000ºC , such as Carbon coating
Two Tungsten coil heaters are included.Spare heater is available upon request at extra cost.
Specimen HolderOne 50 mm Dia.rotable sample stage is installed on top of coater
Rotating speed 5 rpm
The distance between sample holder  to evaporation source is adjustable from 60mm to 100 mm
VacuumKF40 vacuum port is installed to connect a vacuum pump
One Anti-Corrosive Capacitance Diaphragm Gauge is included to measure vacuum upto 10E-6 torr
Gas Inlet1/4 NPS gas inlet port is built in for inert gas cleaning  or forming gas processing
One needle valve is built in to control gas flowing rate
OptionalVacuum pump is required for coating ( not included ).
Double Stage Rotary Vane Vacuum Pump with Vapor trap eliminates the oil mist, which can reach vacuum upto 10-2 torr for evaporating noble metallic materials , such as Gold, silver
Compact Turbo-molecular Vacuum Pump System (up to 1E-7 mbar) is able to provide vacuum level up to 1.05 x 10^-5 for evaporating oxygen sensitive materials, such as Al. Mg, Li etc
Compliance and WarrantyCE certified
