Small evaporation coating machine CY-EVP180G-LV

Small evaporation coating machine CY-EVP180G-LV

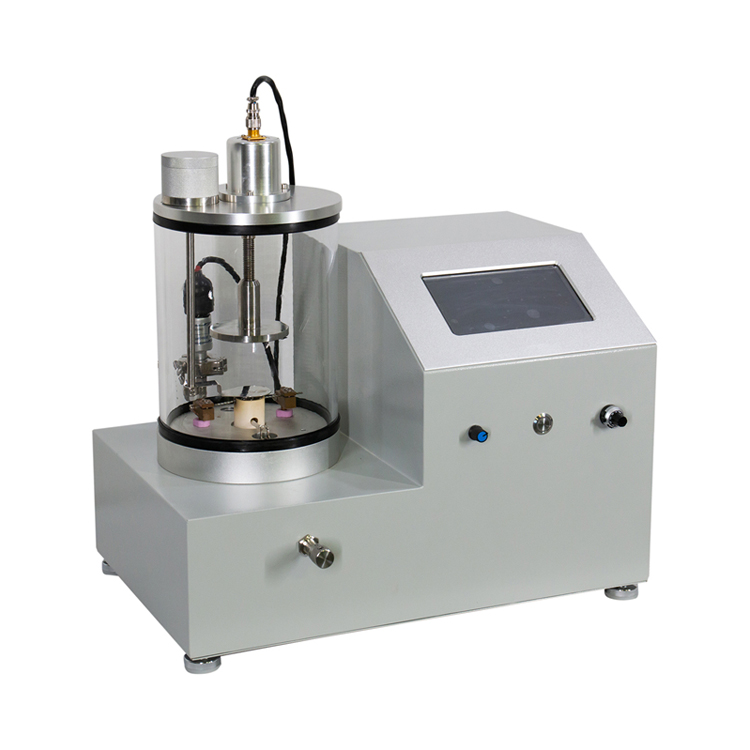

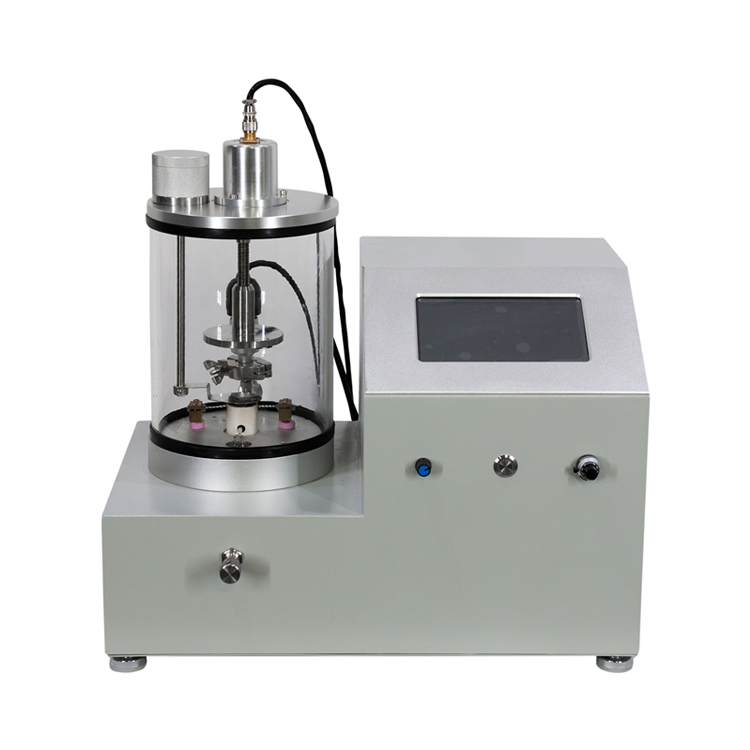

    This is a small evaporation coating machine. The evaporation temperature is from 200 ℃ to 1700 ℃, using tungsten wire basket as evaporation source. The evaporation source coat is high purity alumina crucible. The distance between sample stage and evaporation source is adjustable.

Small evaporation coating machine has a high precision temperature control system, using the cycle heating method, can stably evaporate metal and some organic matter. Using high purity quartz cavity as vacuum chamber, coating process can be seen completely. The instrument is equipped with bipolar rotary vane vacuum pump, which can quickly reach the vacuum degree of 1.0E-1pa and meet the vacuum environment required by most evaporation and coating experiments. This instrument is suitable for evaporation and coating most of the metal and some organic materials film. It has compact structure and small size, which is a cost-effective laboratory coating equipment.

Small evaporation coating machine applications:

Evaporation and coating most of the metal and part of the organic material film.

Small evaporation coating machine techinical parameters:

Small evaporation coating machine

Sample Stage

Size

φ80mm

Distance to the evaporation source

20mm~50mm adjustable

DC sputtering head

evaporation source

Tungsten wire basket

Highest Temperature

1700

Thermal couple

S type Thermal couple



Vacuum Chamber

Chamber Size

φ180mm×100mm

Watch Window

Omnidirectional transparency

Chamber Material

High purity quartz

opening mode

Top cover removable

Vacuum System

Mechanical Pump

Rotary vane pump

Pumping connector

KF16

vacuum measurement

resistance gauge

Air exhaust connector

KF16

Ultimate vacuum

1.0E-1Pa

Power Supply

AC;220V 50/60Hz

Pumping rate

Rotary vane pump1.1L/S



Other

Supply Voltage

AC220V,50Hz

Overall size

360mm×300mm×470mm

Total Power

800w

Total Weight

15kg
