CY-EVP180G-2S-LV Small evaporation coater has a wide range of applications and can prepare various metal thin films and some non-metal thin films, so it is widely used in the preparation of electrodes and the preparation of organic light-emitting LEDs.

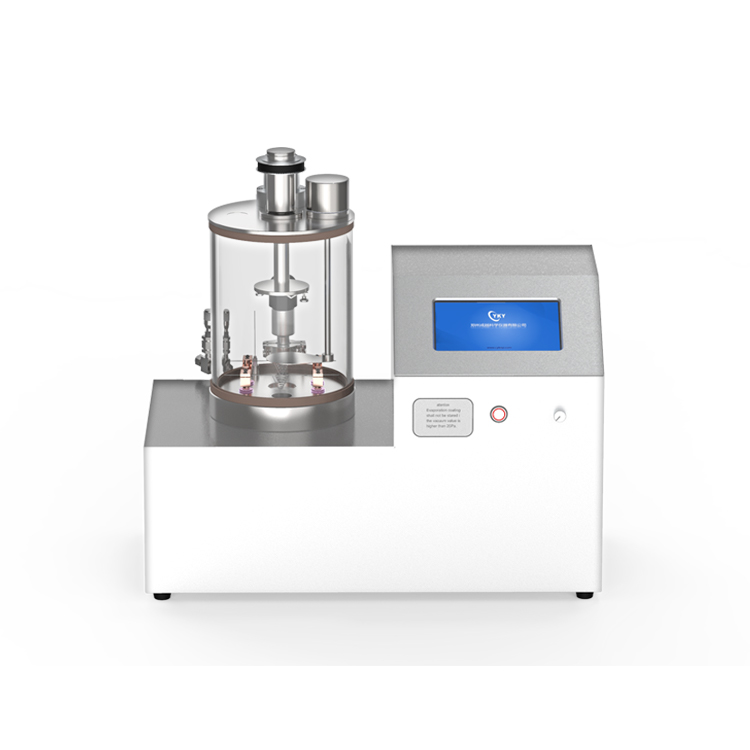

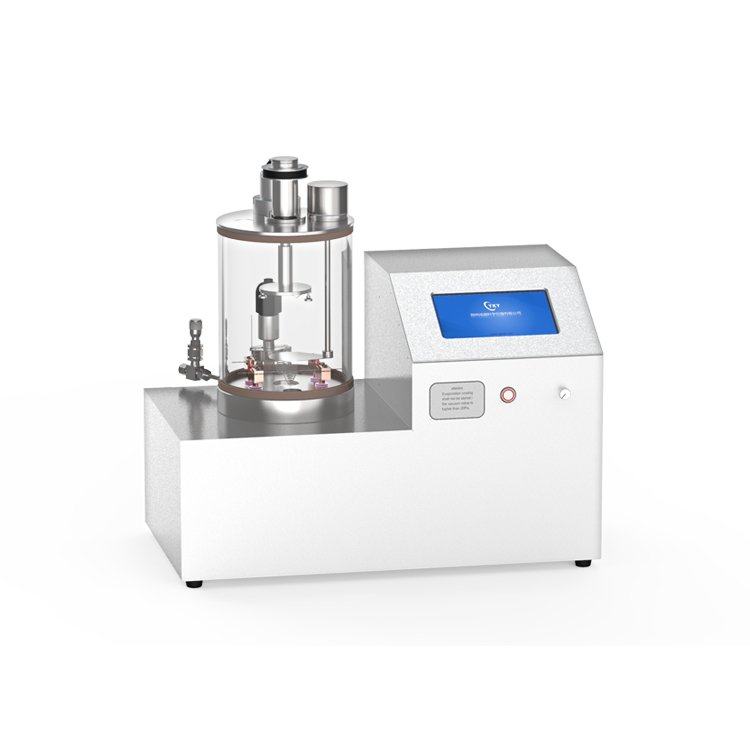

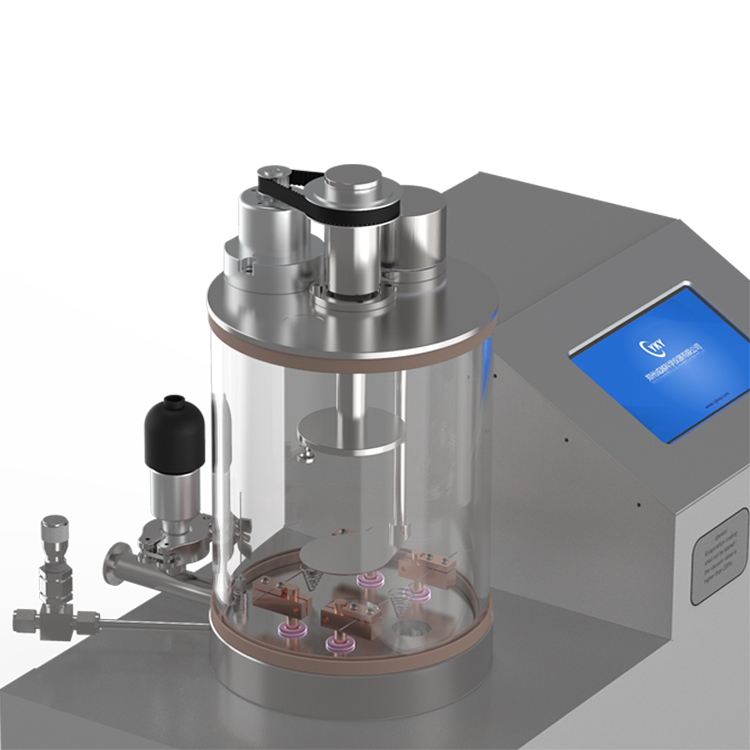

CY-EVP180G-2S-LV is a vacuum thermal evaporative deposition coating machine. During the evaporation coating process of the sample, the sample stage can be rotated to obtain a more uniform film. The coating current can reach up to 60A. The equipment is equipped with two sets of evaporation sources, which can be switched through the baffle to achieve multi-layer coating of samples.
The machine is small in size, which can effectively save laboratory space; it is simple to operate and has strong adaptability to different materials, making it very suitable for laboratory purchases. It has a wide range of applications and can prepare various metal thin films and some non-metal thin films, so it is widely used in the preparation of electrodes and organic light-emitting LEDs.
Features of thermal evaporation coater:
1. The sample table can be rotated, and the coating effect can be more uniform;
2. Using tungsten wire basket as heating source, the highest temperature can reach 1700℃;
3. Inert gas can be introduced into the vacuum cavity to clean the cavity, or reactive gas can be introduced to perform reactive evaporation coating.
4. The air inlet is equipped with a needle valve to adjust the air flow.
5. Double evaporation method source can realize multi-layer coating.
Technical parameters of thermal evaporation coater:
Model
CY-EVP180G-2S-LV
Power supply
AC220V, 60Hz
Max power
1200W
Evaporation sources
Tungsten wire basket x2
Sample table
Diameter φ65mm；
Rotation speed 0-20rpm；
Height: The distance between the evaporation source is adjustable, the adjustment range is 60mm-100mm
Vacuum chamber
Material: high purity quartz φ180mm x 210mm
Max temp.
1700℃
Thermocouple
B type
Vacuum gauge
Resistance-type vacuum gauge
Vacuum interface
KF16
Inlet interface
1/4NPS
Overall Dimensions
500x350x400mm
Small evaporation coater video:
