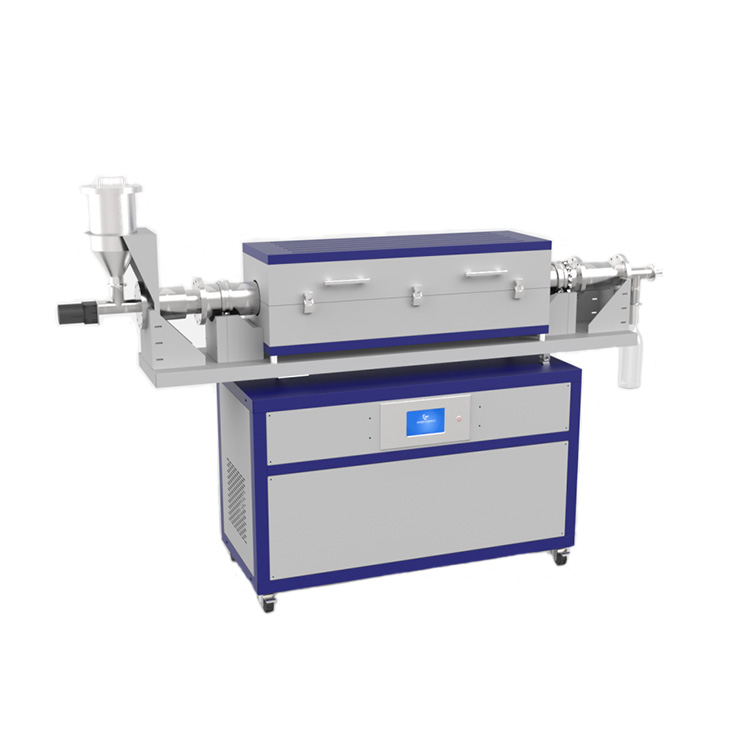

CY-O1200-100IIIT-R is a three-zone rotary tube furnace with a feeder and a receiving tank. The feeder can feed the powder into the furnace tube at a rated rate, and the powder material can be continuously wrapped and modified by the CVD method under the atmosphere protection environment. The receiving tank can collect the processed powder in an atmosphere protection environment.
Three-zone rotary tube furnace with continuous powder feeding & receiving system application:
This tube furnace is designed to coat the conductive layer on the cathode material of Lithium-ion battery (such as LiFePO3, LiMnNiO3), and also to prepare Si/C anode material by CVD.
Three-zone rotary tube furnace with continuous powder feeding & receiving system specifications:
Vacuum tube furnace | Max power | 4.5kw |
Tube material | Outer tube stainless steel, inner tube quartz |
Tube diameter | 100mm (60mm at both ends, 100mm in the middle) |
Tube length | 1200mm |
Furnace chamber length | 660mm |
Heating zone length | 200mm+200mm+200mm |
Constant temperature zone | 200mm |
Operating temperature | 0～1100℃ |
Temperature control accuracy | ±1℃ |
Temperature control mode | 30 or 50 segment program temperature control |
Display mode | LCD |
Sealing method | 304 stainless steel vacuum flange |
Flange interface | 1/4" ferrule connector, KF16/25/40 joint |
Vacuum | 4.4E-3Pa |
Power supply | AC:220V 50/60Hz |
Inclination angle | 0~15° |
Rotating speed | 0~20 rpm |
Gas supply system | Model | CY-3F |
Gas channel | 3-channel |
Measuring unit | Gas float flow meter |
Measuring range | A channel: 0～100ml H2 gas | Remarks: If you need other ranges or gas types, you need to specify when ordering. According to the customer's specific requirements, the flow meter of the corresponding gas type and range can be selected. |
B channel: 16～160ml N2 gas |
C channel: 25～250ml Ar gas |
measurement accuracy | ±2.0% |
Pipe pressure resistance | 3MPa |
Working pressure difference | 50～300KPa |
Connecting pipe | 304 stainless steel |
Gas channel | 304 stainless steel needle valve |
Interface specification | 1/4" ferrule connector for gas inlet and outlet |
Exhaust system | Mechanical pump | Rotary vane pump |
Pumping rate | 1.1L/S |
Exhaust interface | KF16 |
Vacuum measurement |
Resistance gauge |
Ultimate vacuum | 1.0E-1Pa |
Power supply | AC:220V 50/60Hz |
Pumping interface | KF16 |
