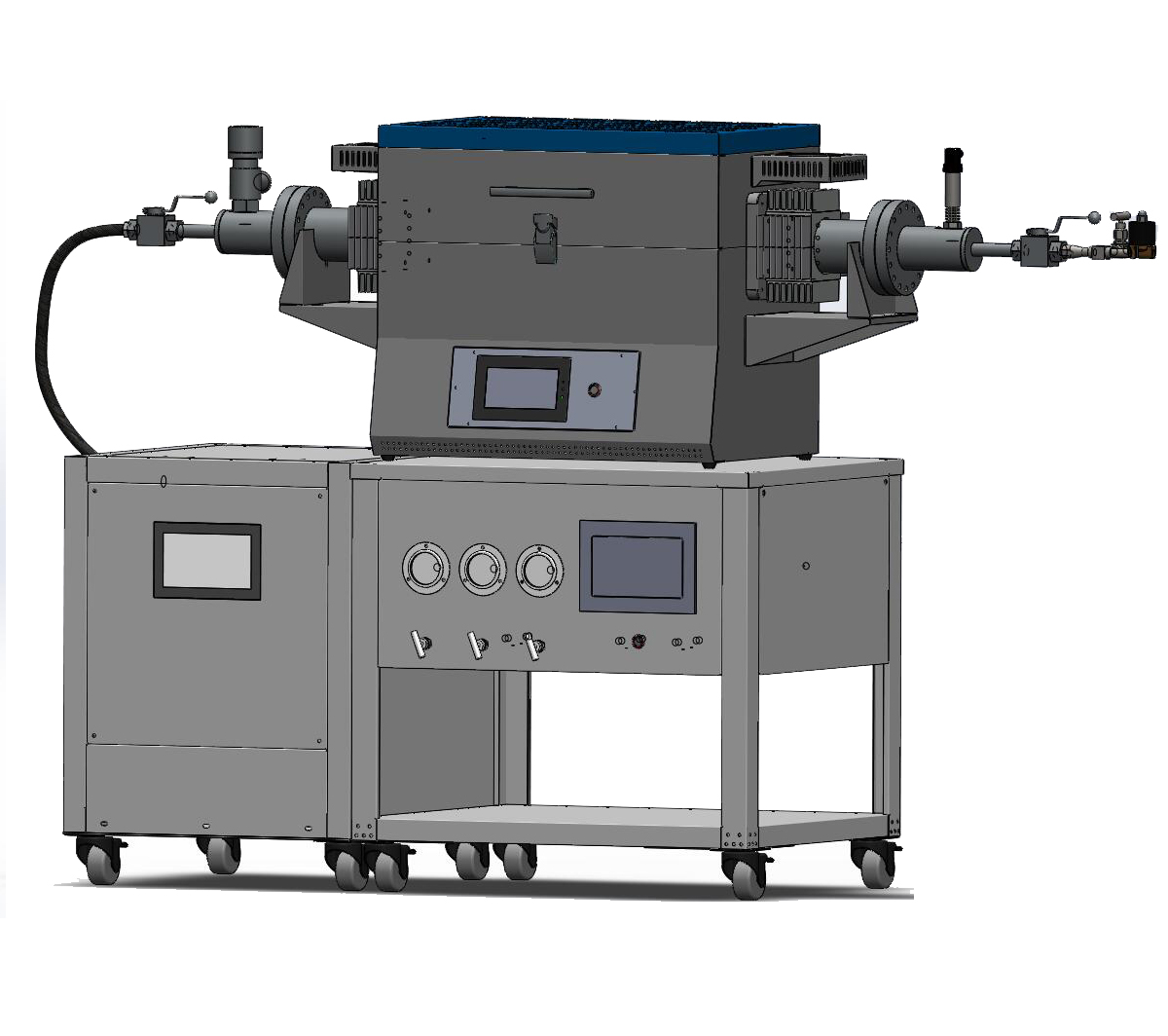

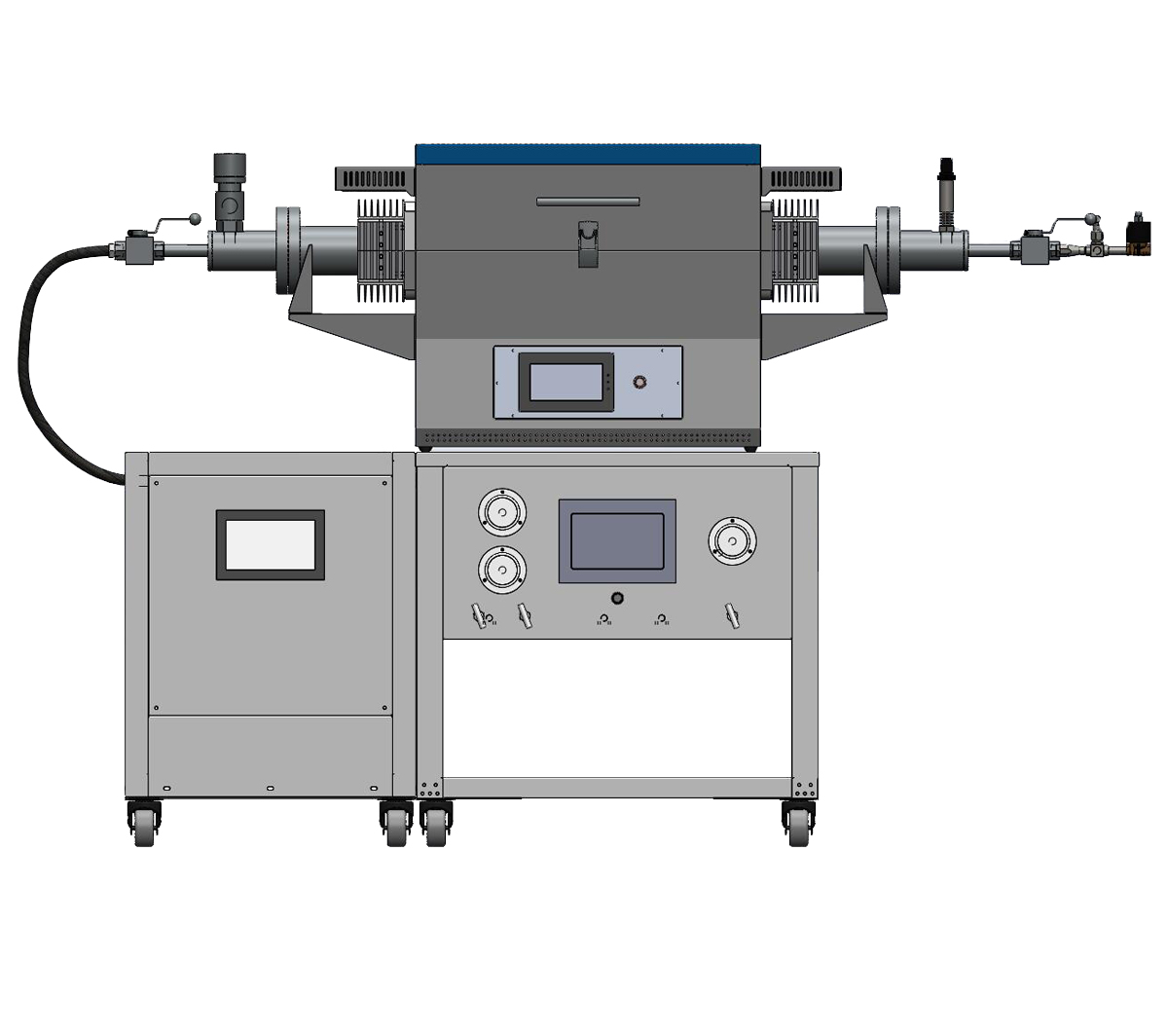

Laboratory High Pressure &Temperature Tube furnace with Three Gas way mixer-CY-FH-S150

    Application:

    High temperature high pressure sintering furnace is mainly used for special functional ceramics powder or certain density samples heat treatment which need high pressure about 20 MPa, to realize ceramic material high pressure sintering.


Features

1.PC and PID Programmable control, easy operation

2.Over pressure &over temperature protective, make sure user's safety

3.Compact structure with mobile carrier, easy move and using.


Model

CY-FH-S150

Process Vessels

Ni-based super-alloy ID50 x OD 60 x Length 1000 (mm)

Copper gasket

For 60mm O.D tube: 82 O.D x 63.6 I.D x 2.2mm

Working Pressure vs.
     Working
     Temperature

15 Mpa max. at ≤800°C
     10 Mpa max. at ≤900°C
     5 Mpa max. at ≤1000°C
     2.5 Mpa max. at 1100°C
   Attention: Never heat up above 1100°C

Working Gases

Inert gas and oxygen, etc

Heating Temperature

1100°C max.for < 1hr 1000C for continuous

Heating Rate

≤20°C/min

Heating Element

Resistance wire

Heating Zone

Total length: 440mm Single zone
   Constant temp. zone: 150mm ±1°C

Temperature Control

PID control method with over-temp protection
     Temperature stability: ±1°C
   Touch screen controller with LCD display

Thermocouple

K type

Pressure Measurement Range

0~15Mpa

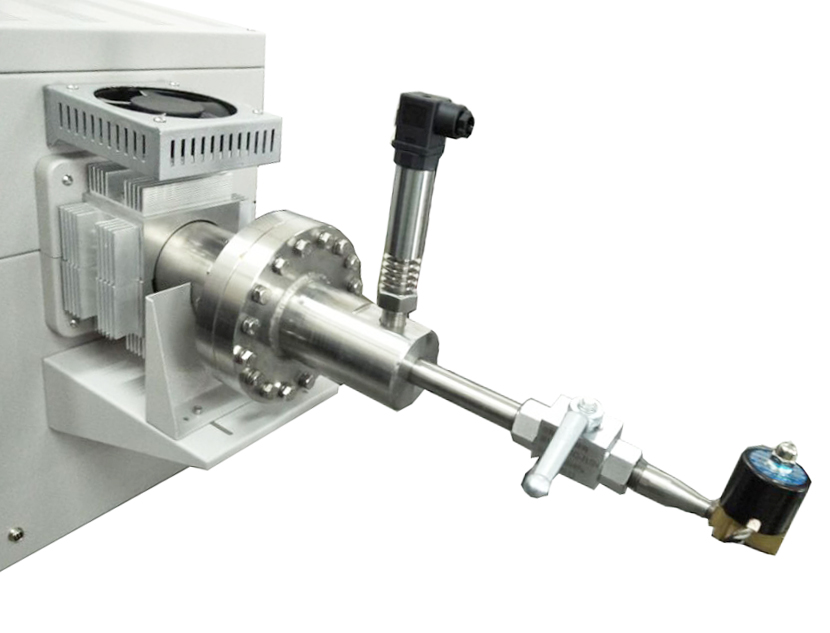

Pressure safety device

1)high pressure sensor installed in high-pressure flange

2)high pressure solenoid valve controlled by pressure monitor

3)automatic gas release port

4)pressure transducer

5)manual valve for disconnect solenoid

PC control

Temperature & Pressure,

Show the screen of software by English version

brand new Laptop (optional)

Pressure Alarm System

Upper limit and lower limit control method
   Alarm strobe and warning whistle

Standard Accessories

high pressure super-alloy furnace tube, 1ea

high pressure sealing flanges and the related accessories like copper O-rings, screws, 1set

high pressure solenoid valve and pressure transducer, 1set

dust free protective gloves, 1 pair

tube blocks, 1 pair

furnace hook, 1ea

quartz boat, 1ea

Additional spare parts

spare copper O-ring

high pressure superalloy furnace tube

Power

AC 220V 50/60Hz, 4.5KW

Shipping package Dimension

1120*1120*900mm

Shipping weight

Around 210kg

Warranty

1 year

Certificate

CE

Operation Instructions

operating manual by English version
