1200℃ single heating zone high vacuum CVD system with 3-channel float flowmeter to supply gas CY-O1200-50IT-3F-HV

1200℃ single heating zone high vacuum CVD system with 3-channel float flowmeter to supply gas CY-O1200-50IT-3F-HV

    1200℃ single heating zone high vacuum CVD system is equipped with a three-channel float flowmeter, which can mix 1~3 channels of gas to accurately prepare the mixed gas required for the experiment. Another pressure gauge is installed on the front of the float flowmeter to monitor the gas pressure and the mixing tank pressure.

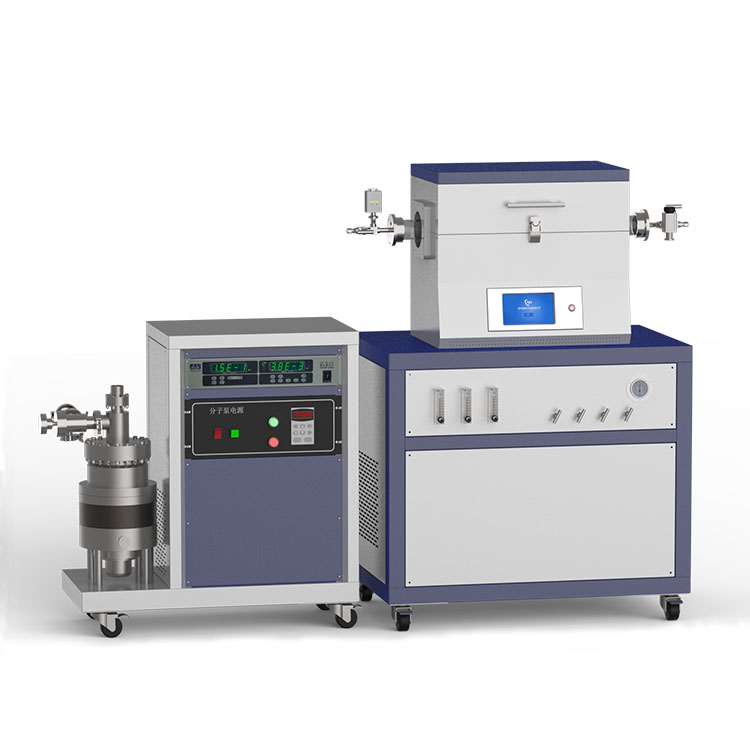

1200℃ single heating zone high vacuum CVD system consists of a single heating zone tube furnace, a three-channel float flow meter and a high vacuum molecular pump set. The tube furnace is controlled by the precision temperature control instrument for PID temperature control. It can edit the 30-segment raising and falling temperature program and has the function of overheating and short circuit protection. The flanges on both sides of the furnace tube are equipped with a digital vacuum gauge and a mechanical pressure gauge, which can be used to control the atmosphere in the furnace tube. At the same time, the tube furnace is operated by high-definition true color touch screen, which is easy to use. Even non-professionals can master the use of the instrument after simple training, which can greatly improve your experiment efficiency.

This system is also equipped with a precision molecular pump set, which can achieve a vacuum of 1.0E-3pa level, which can provide users with a purer and more stringent experimental environment than ordinary mechanical pumps.

It is suitable for high-temperature sintering, metal annealing, quality inspection, etc. in universities, research institutes, industrial and mining enterprises, especially for CVD experiments that require a variety of gas mixing atmospheres.

1200℃ single heating zone high vacuum CVD system technical parameters:

Vacuum tube   furnace

Model

CY-O1200-50IT

Tube material

High purity quartz

Tube diameter

50mm (Optional 60mm, 80mm, 100mm)

Tube length

1000mm

Furnace chamber   length

440mm

Heating zone   length

400mm

Constant   temperature zone

200mm

Operating   temperature

0~1100℃

Temperature   control accuracy

±1

Temperature   control mode

30 or 50 segment program temperature control

Display mode

LCD

Sealing   method

304 stainless steel vacuum flange

Flange   interface

1/4" cutting sleeve joint, KF16/25/40 joint

Vacuum

4.4E-3Pa

Power supply

AC:220V   50/60Hz

Gas supply system

Model

CY-3F

Gas channel

3-channel

Measuring   unit

Gas float flowmeter

Measuring range

A channel: 0100ml/min  H2 gas

Remarks: If   you need other ranges or gas types, you need to specify when ordering.   According to the customer's specific requirements, the flow meter of the   corresponding gas type and range can be selected.

B channel: 16160 ml/min  N2 gas

C channel: 25250 ml/min  Ar gas

Measurement   accuracy

±2.0%

Pipe   pressure resistance

3MPa

Working   pressure difference

50300KPa

Connecting   pipe

304 stainless steel

Control   valve

304 stainless steel needle valve

Interface   specification

1/4" cutting sleeve joint for gas inlet and outlet

Power supply

AC:220V   50/60Hz

Exhaust   system

Model

CY-GZK103-A

Molecular   pump

CY-600

Backing pump

Rotary vane pump

Pumping rate

Molecular pump: 600L/S

Comprehensive gas pumping performance: the vacuum can reach 6.0E-5Pa in 30 minutes.

Rotary vane pump: 1.1L/S

Pumping   interface

KF40

Exhaust   interface

KF16

Vacuum   measurement

Compound vacuum gauge: Pirani gauge + ionization gauge

Ultimate   vacuum

8.0E-7Pa

Power supply

AC:220V   50/60Hz

Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will improve and modify any information on the website from time to time without prior notice.
