Organic and inorganic evaporation coater is used in the growth of thin-film solar cell, research of ELOEL molecular organic electroluminescent devices thin films. It can be widely used in small amount production and on the scientific research on film materials by universities and research institutes.

Inquire Now Next Product

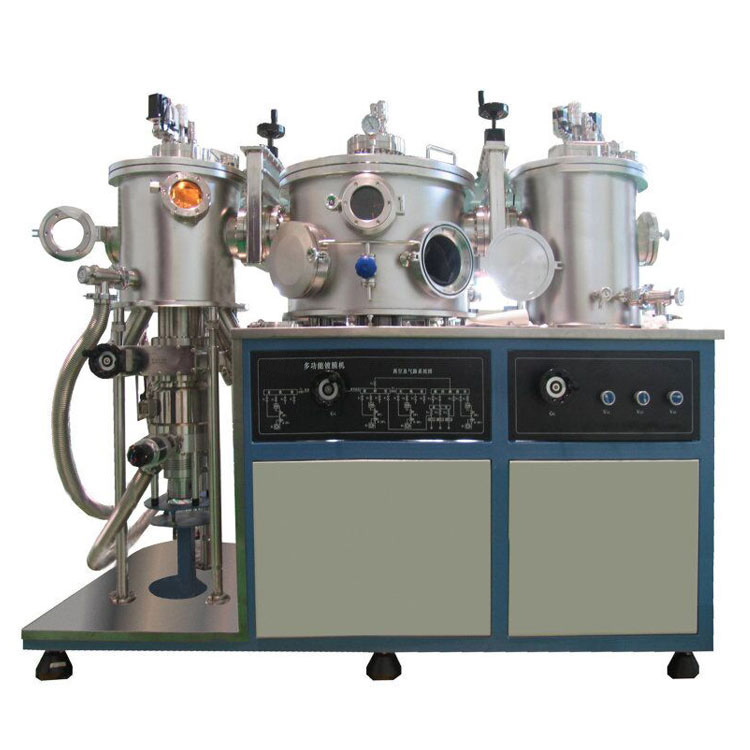

Organic and inorganic evaporation coater adopts linear structure and is mainly composed of two organic material growth chambers which are connected by gate valves. One of the two growth Chambers is reserved for the butt joint interface with the glove box, which can complete the transfer of substrates between two independent film preparation systems. The organic material growth chamber mainly consists of vacuum chamber assembly, organic evaporation source, thermal resistance evaporation boat, sample transfer device, sample platform, film thickness monitor, vacuum chamber lighting device, baking device and so on.

Organic and inorganic evaporation coater specifications:

Vacuum chamber		Two D-shaped vacuum chamber, size: aboutΦ450×H750; Two vacuum chamber of the vacuum system configuration, extreme pressure, vacuum recovery time, thermal resistance evaporation boat and power supply, the film thickness monitor, vacuum chamber lighting equipment, baking equipment, sample platform configuration , The above configuration is the same as the technical parameters
Vacuum system configuration		Japanese cryopump, oil-free vortex dry pump and electromagnetic valve, compound digital-displayed vacuum measurement auge and meter, valves etc.
Ultimate pressure		≤2.0×10^-5 Pa
vacuum recovery time		Reach 1×10^-4 Pa in 40 mins
Electric magnetic coupling sample transfer device	Vacuum chamber 1	It adopts magnetic coupling line motion delivering device and is driven by stepper motor, It is equipped with remote manual control box to control straight forward and backward
Organic evaporation source and power	Vacuum chamber 1	9 new model OEL sublimation evaporation source, each filled with 10CC evaporation material, room temperature-800℃: 7; room temperature-1000℃: 2; evaporation source power: 4
Organic evaporation source and power	Vacuum chamber 2	6 new model OEL sublimation evaporation source, each filled with 10CC evaporation material, room temperature-800℃: 6; room temperature-1000℃: 2; evaporation source power: 4
Heat resistance evaporation boat and power		New model evaporation boat: 2 (heat resistance evaporation boat); digital heat resistance evaporation power: 1, with fine adjustment function (0.1A); aluminum coated special purpose box evaporation boat: 2; metal evaporation boat: 10; evaporation source baffle: 2.
Film thickness monitor	Thickness resolution ratio	Non-uniformity: 0.0133Å/measure; 50 samples average: 0.002Å/measure
	Velocity resolution ratio	Non-uniformity: 0.0133angstrom per second; 50 samples average: 0.02 angstrom per second
	Precision	0.03HZ/measure, 2ppm
	Speed	Measuring 10 times per second
Vacuum chamber lighting device		LED lighting outside chamber, to prevent film coating contaminate lighting
Baking device		A method of baking in a vacuum outdoor baking strip
Sample stage	Sample size	Load one 100×100mm or 50×50mm substrate
Sample stage	Mode of motion	Power driven lifting, rotatable, rotating speed 0-30rpm, rotating speed adjustable
